Body, Air Cleaner: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate both of the negative battery cables.
    GC0155101Courtesy of CHRYSLER GROUP, LLC
  2. Remove the air cleaner body bolt (2).

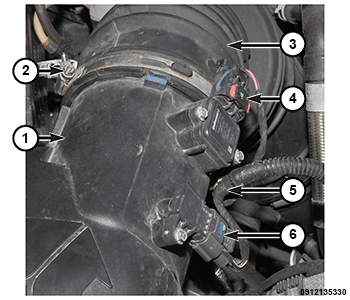

    GC0179978Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the Mass Air Flow (MAF) sensor wire harness connector (4).
  4. Disconnect the TBAP sensor wire harness connector (6).
  5. Detach the wire harness (5) from the intake air tube (3).
  6. Loosen the clamp (3) and disconnect the intake air tube (3) from the air cleaner body (1).
  7. Lift up on the air cleaner body (1) to gain access to the ram air actuator.

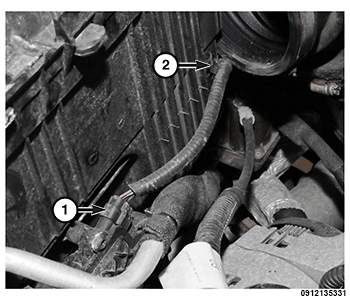

    GC0179946Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the ram air actuator wire harness connector (1) and detach the wire harness retainer (2), then remove the air cleaner body

    .
