Carpet, Floor: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Carpet for quad can model shown in the illustration. Regular cab similar.
NOTE:
The floor mat hook is serviced separately from the carpet, do not replace the carpet due to a broken floor mat hook.
- Remove the front seats. Refer to SEAT, FRONT CENTER, REMOVAL .
- If equipped, remove the floor console. Refer to CONSOLE, FLOOR, LID, REMOVAL .
- If equipped, remove the storage bins. Refer to BIN, STORAGE, LID, REMOVAL .
- If equipped, remove the rear sub-woofer. Refer to SPEAKER, REMOVAL .
- Remove the lower B-pillar trim panels. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .
- Remove the jack assemblies.

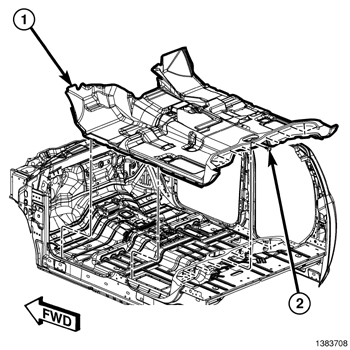

- Remove the nine push pin fasteners (2) on the quad cab models.
- Remove the carpet (1) from the vehicle.
- If required, separate the seat belts from the floor on both sides. Refer to SEAT BELT, REMOVAL .

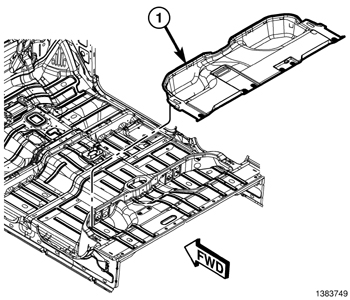

- Remove the rear storage bin carpet (1), if equipped.
