Seat, Front Center: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
Before servicing seat for an electrical concern. Refer to DIAGNOSIS AND TESTING .
- Remove the front passenger seat assembly. Refer to REMOVAL .

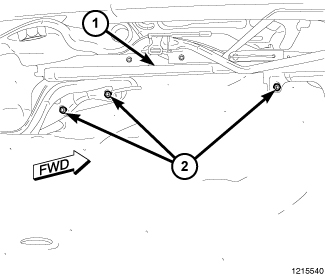

- Remove the fasteners (2) attaching the center seat assembly to the seat adjuster (1) and separate the center seat.
