Console, Floor, Lid: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
- Disconnect the negative battery cable.
- Remove the center console rear panel (back of the center console) to access the console lid hinge.

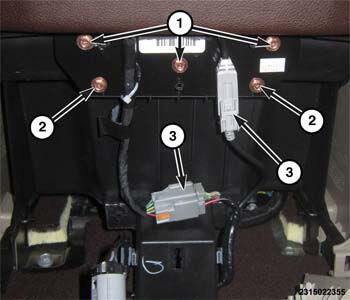

- Disconnect both connectors (3).
- Loosen the guide screws (2).
- Remove the three screws securing the hinge to the rear of the center console.
