Heater-Cushion Pad: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

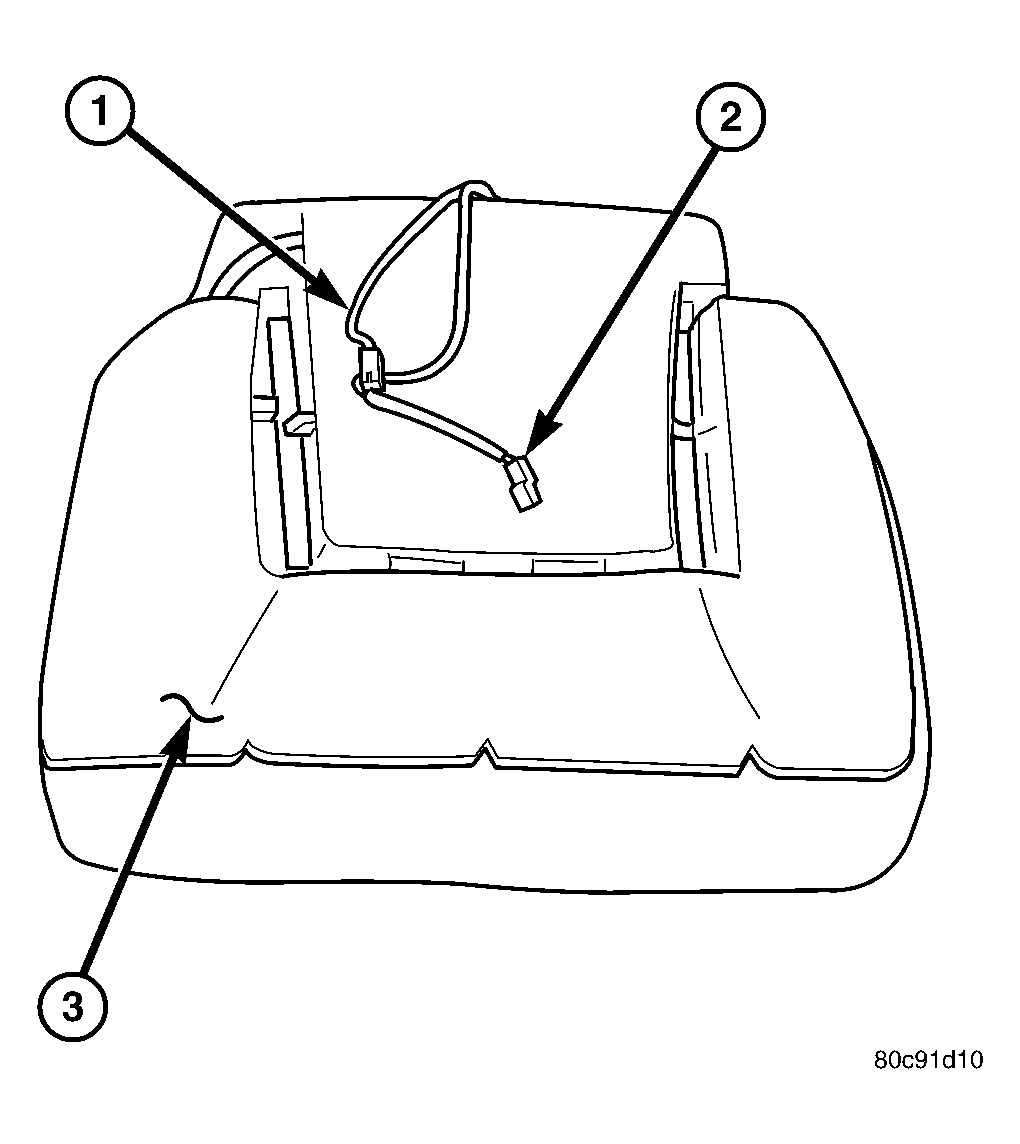

Fig 1: Installed Heating Element
GC0015934Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Do not remove the factory installed heating elements (3) from the seat or seat back cushions. The original element is permanently attached and cannot be removed without permanent damage. The replacement heating element is designed to be applied directly on top of the inoperative factory installed heating element.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the appropriate seat cushion, (Refer to BODY/SEATS/SEAT CUSHION COVER - REMOVAL) or seat back trim cover, (Refer to BODY/SEATS/SEAT BACK CUSHION / COVER - REMOVAL) .
  3. Disconnect the inoperative heated seat cushion or seat back element electrical connectors (2).
  4. Locate the wires leading from the inoperative heating element and cut them off flush with the edge of the original heating element.
