Cushion/Cover-Seat Back - Front: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

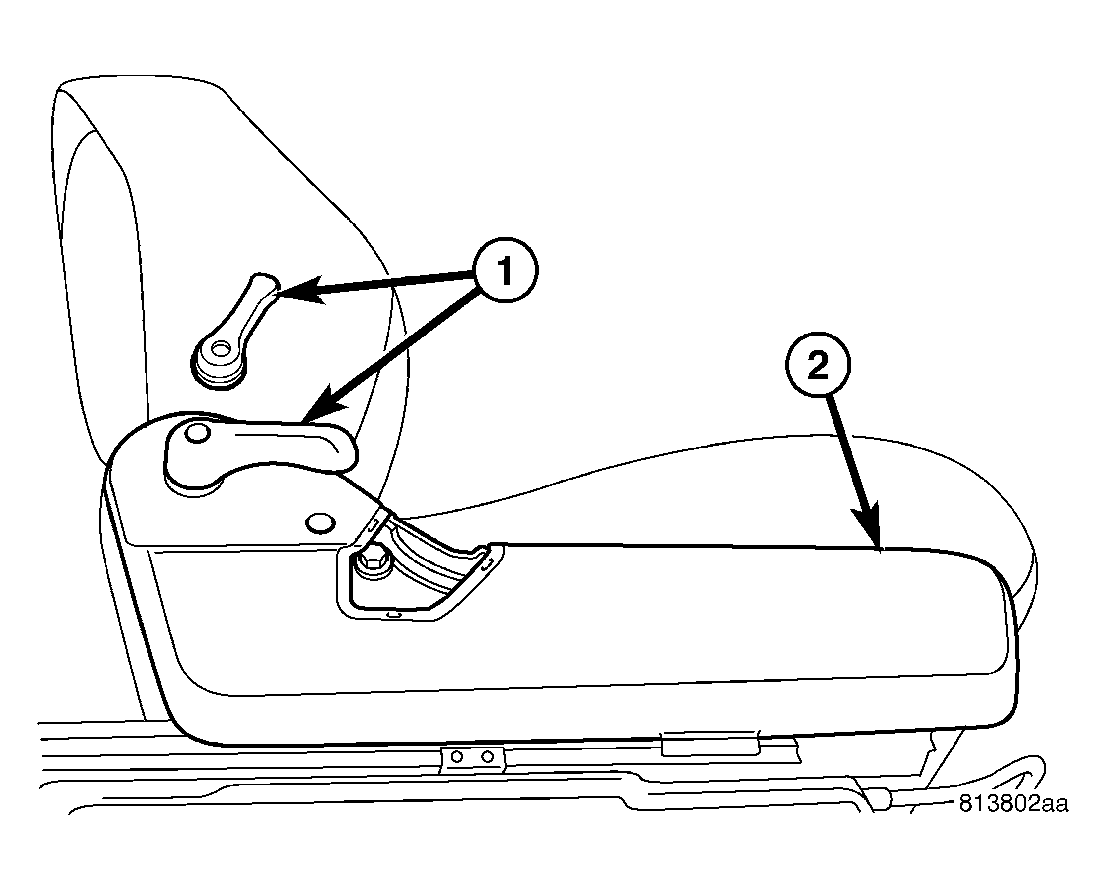

Fig 1: Handles & Shields
GC0013559Courtesy of DAIMLERCHRYSLER CORP.
  1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/SEATS - WARNING)
  2. Remove the front seat. (Refer to BODY/SEATS/SEAT - FRONT - REMOVAL)
  3. Remove the lumbar and recliner handles (1).
  4. Remove the screws and remove the side shields (2).
    Fig 2: Buckle
    GC0013560Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the belt buckle.
    Fig 3: Back Bolts
    GC0013561Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the seat back bolts from both sides.
    Fig 4: Head Rest
    GC0013563Courtesy of DAIMLERCHRYSLER CORP.
  7. Push in the buttons on both headrest sleeves, pull the headrest up and remove.
    Fig 5: Zip Strip
    GC0013562Courtesy of DAIMLERCHRYSLER CORP.
  8. Separate the j-straps (1 & 2) and pull cover up over frame and remove cushion.
  9. Pinch both headrest sleeve ribs from inside the seat back frame with pliers or equivalent.
  10. Strike the bottom of the sleeve with a rubber mallet or equivalent, and remove the headrest sleeves.
