Section 38 (Steering System (Service Information)): Pump: Removal: 2.7L/3.5L
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate battery negative cable (2) from battery post.
- Siphon power steering fluid from pump reservoir.
- Remove air cleaner housing and inlet tube to throttle body. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) and (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL)
- Remove serpentine drive belt. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)

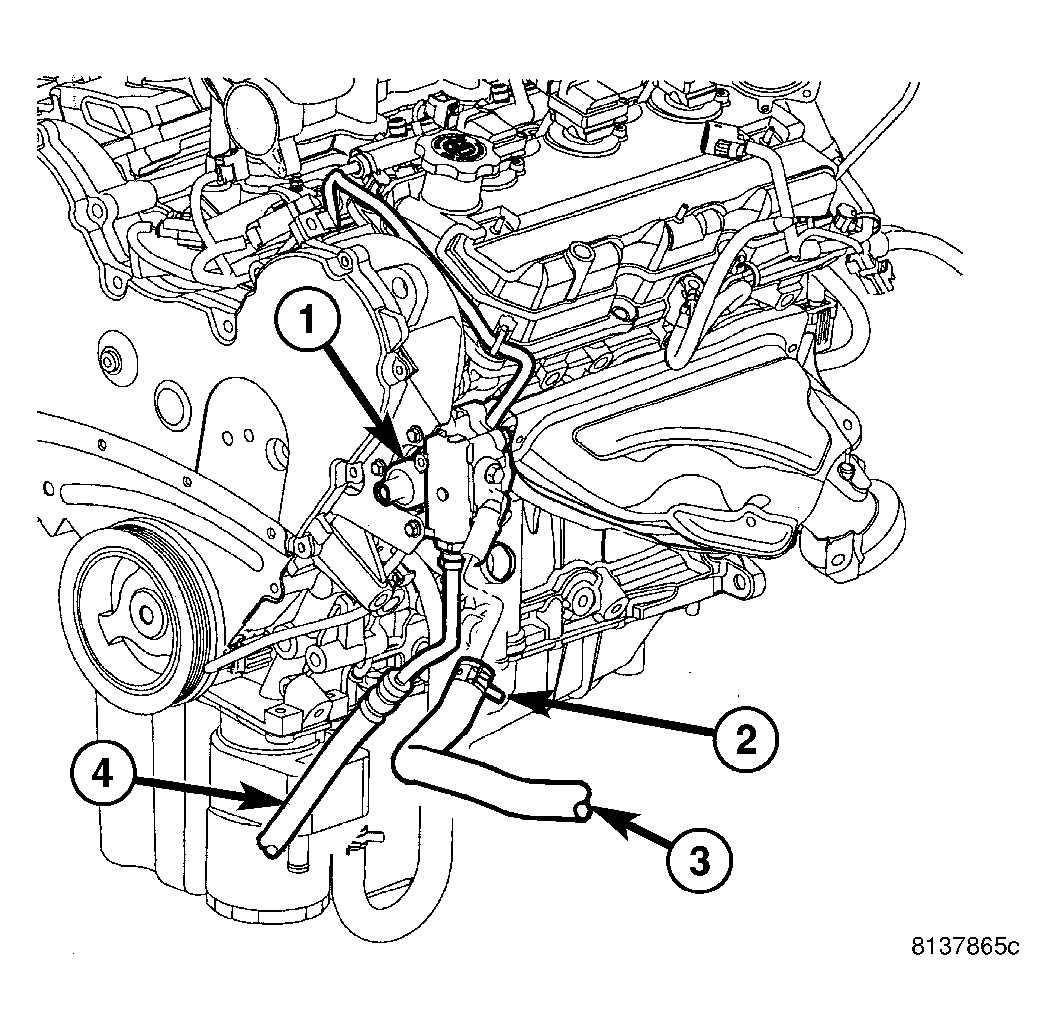

- Remove hose clamp (2), then supply hose (3) from pump (1).

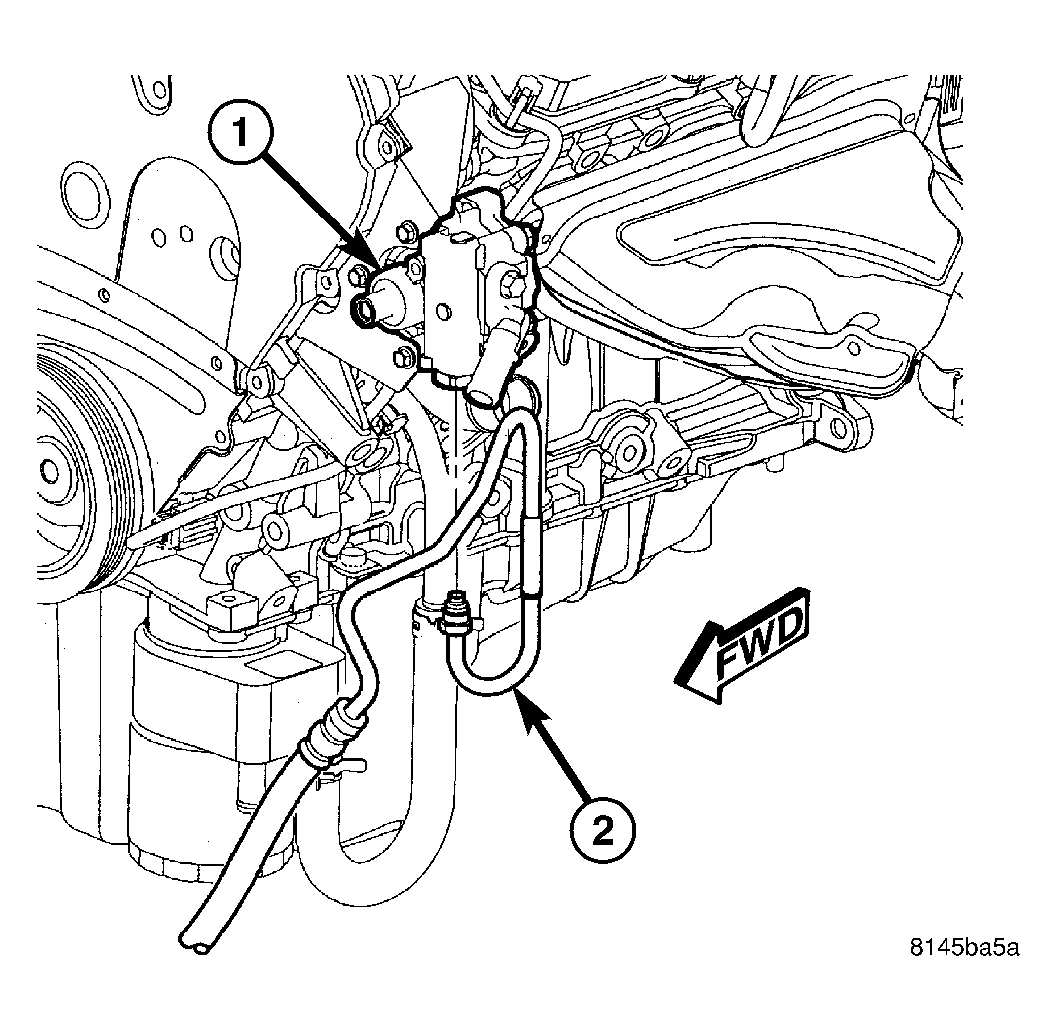

- Unthread tube nut, then remove pressure hose (2) from pump (1).

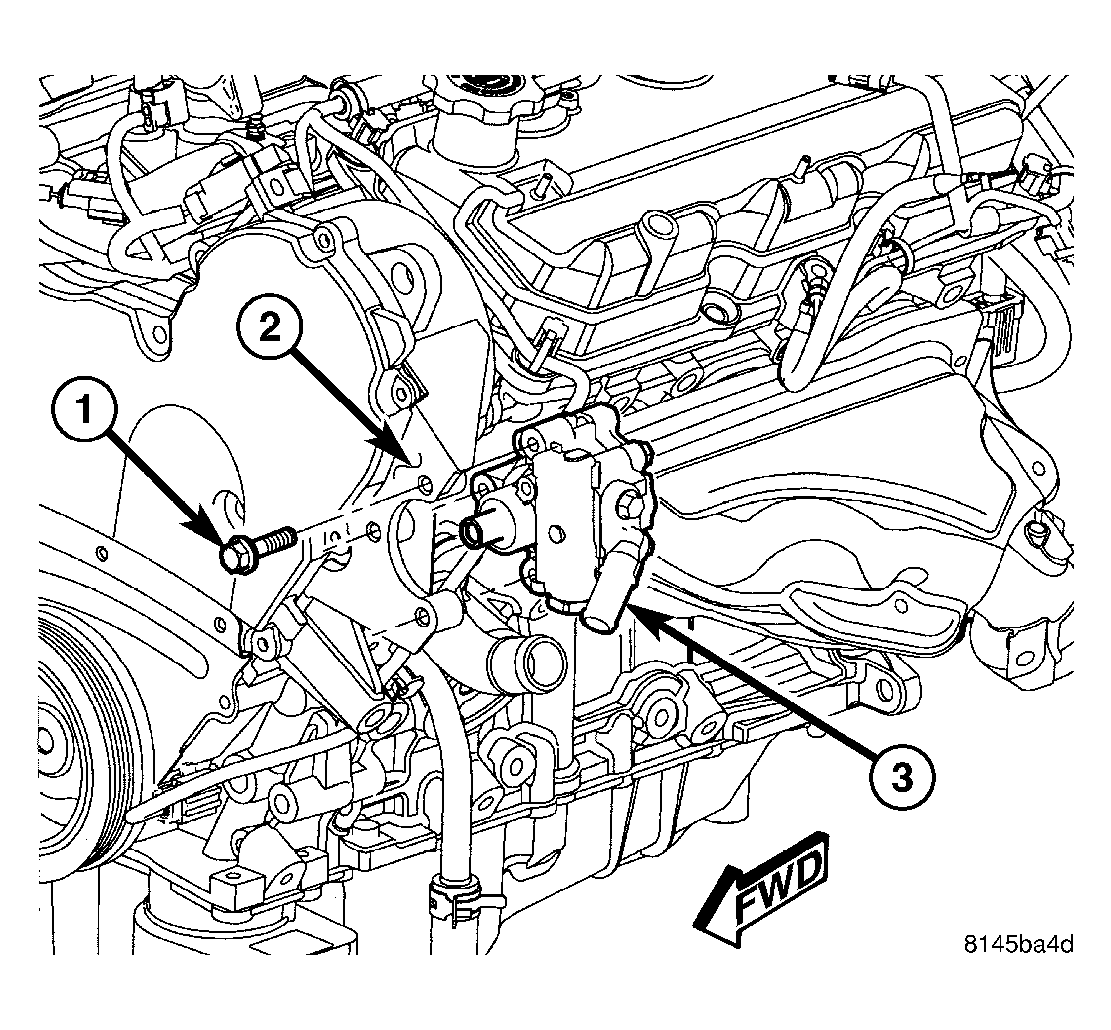

- Remove three pump mounting bolts (1) through access holes in pulley.
- Remove pump (3) from engine bracket (2).
- If pulley needs removal, (Refer to STEERING/PUMP/PULLEY - REMOVAL) .
