Housing-Air Cleaner: Removal
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

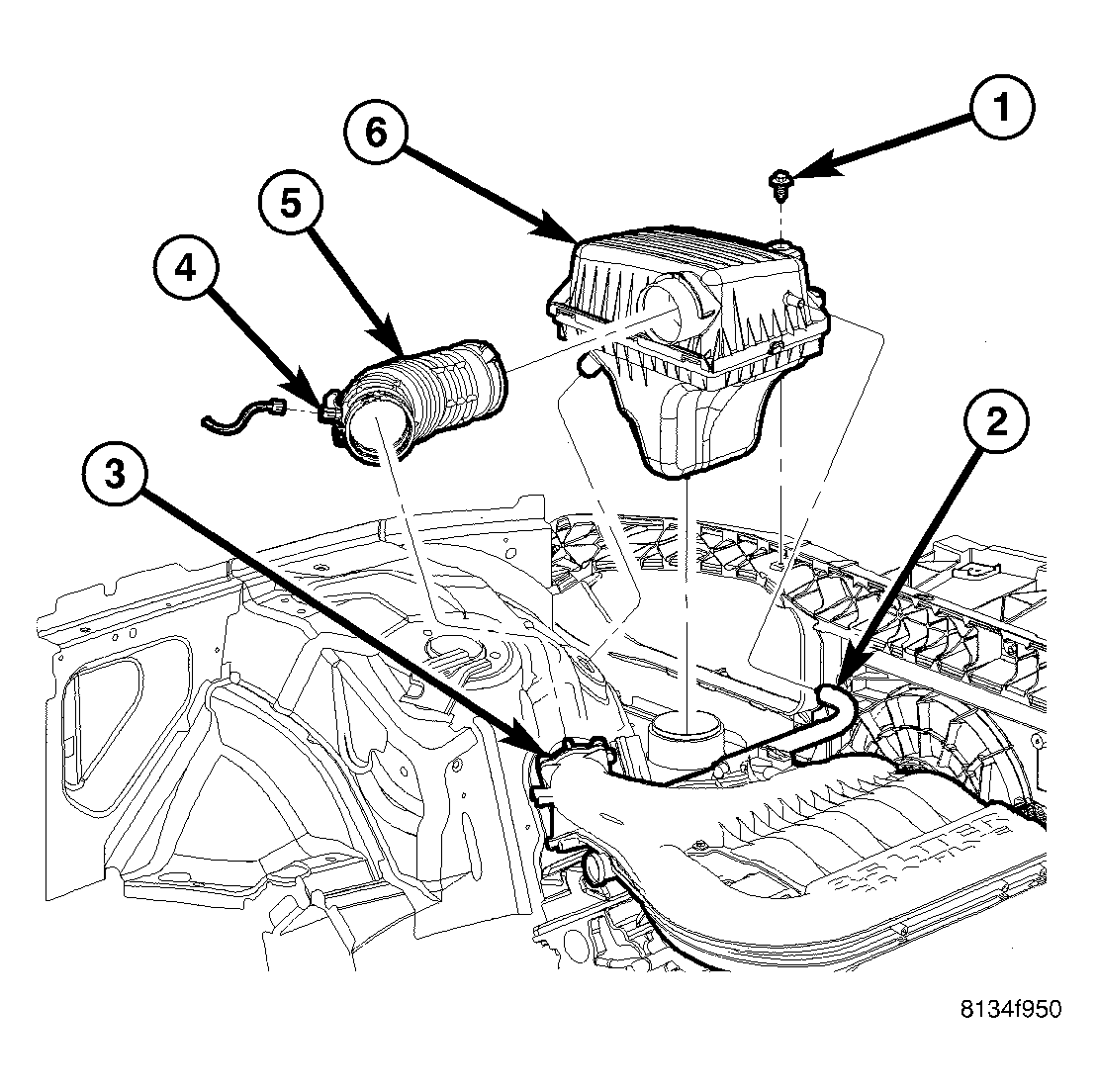

| 1 - BOLT |
| 2 - CCV HOSE |
| 3 - THROTTLE |
| 4 - IAT SENSOR |
| 5 - INLET AIR DUCT |
| 6 - AIR CLEANER ELEMENT HOUSING |
- Separate the air inlet duct (5) at the element housing (6).
- Disconnect the CCV hose (2) at the element housing (6).
- Remove the housing retaining bolt (1).
- Pull housing up and off of the locating pin.
- Remove element housing (6) from vehicle. See Fig 1
