Section 36 (Frame & Bumpers): Fascia-Front: Installation: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

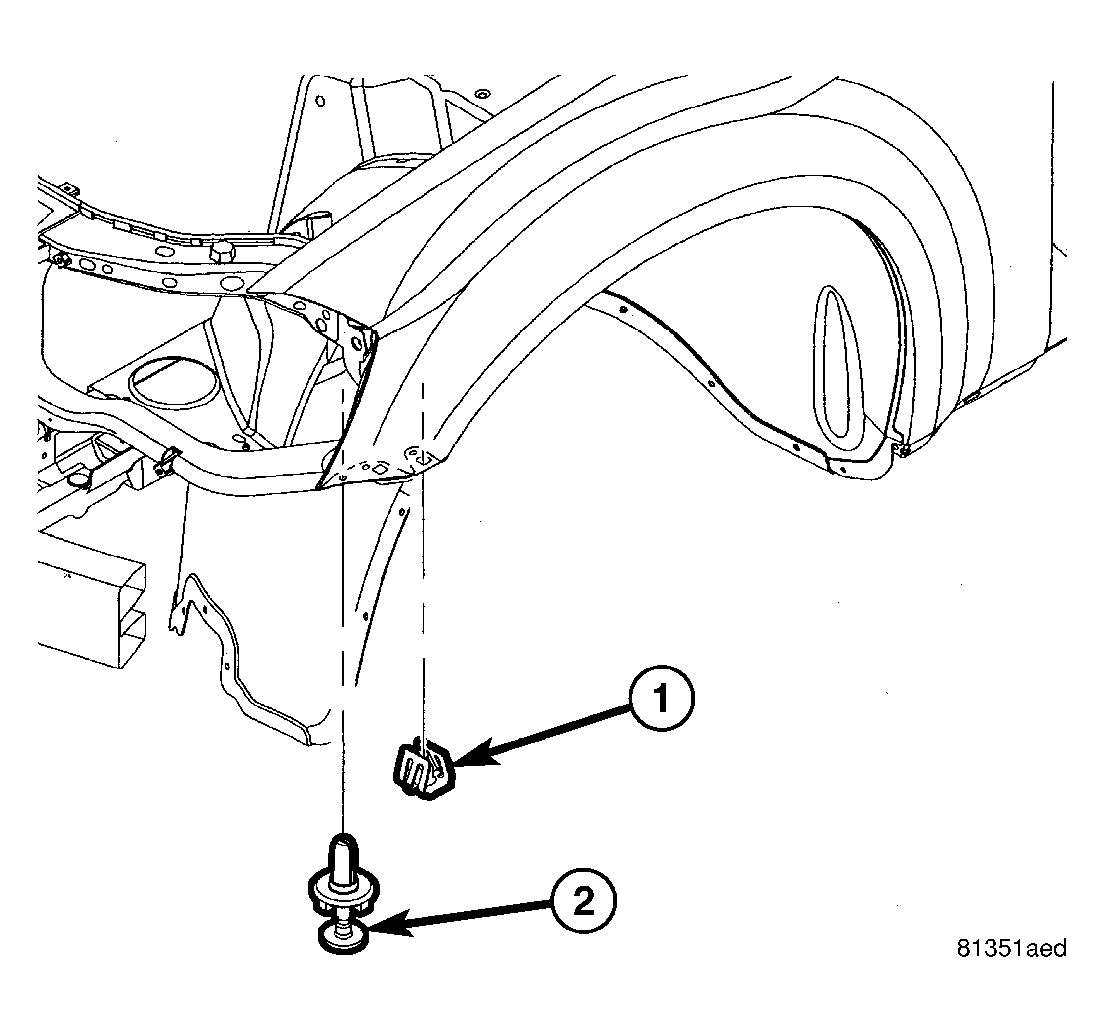

Fig 1: Fender Quarter Attachments

Courtesy of DAIMLERCHRYSLER CORP.

If removed, install the push-pin retainer (2) and a new nut insert (1) into each front fender.
NOTE: 300 Shown. Magnum and SRT8 similar.

Fig 2: Removal And Installation Of Front Fascia Assembly
Courtesy of DAIMLERCHRYSLER CORP.
If removed on SRT8 models, install the lower fascia onto the front fascia assembly (4) using new metal retaining clips.
If equipped and removed, install the fog lamps onto the front fascia assembly (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/LAMP-FOG - INSTALLATION) .
Position the front fascia assembly to the vehicle and connect each fog lamp wire harness connector (3), if equipped.
If equipped, connect the headlamp washer system hose to washer reservoir. (Refer to ELECTRICAL/WIPERS/WASHERS/HEADLAMP WASHER - INSTALLATION)
On all three SRT8 models, connect the Tire Pressure Monitoring connector. (Refer to TIRES/WHEELS/TIRE PRESSURE MONITORING/TRANSPONDER - REMOVAL)
Engage the push-pin retainer (6) into the slot in each side of the front fascia assembly by pushing the fascia rearward.
Install the push-pin retainers (2) (four-sedan, six-wagon, eight Charger) that secure the front fascia assembly to the upper radiator support.
Raise and support the vehicle.
Install the screw (5) that secures the front fascia assembly to the nut insert (1) in each front fender. Tighten the screws securely.
Position belly pan to front of vehicle. Install and tighten screws.
