C-Pillar Trim: Removal: Lower

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

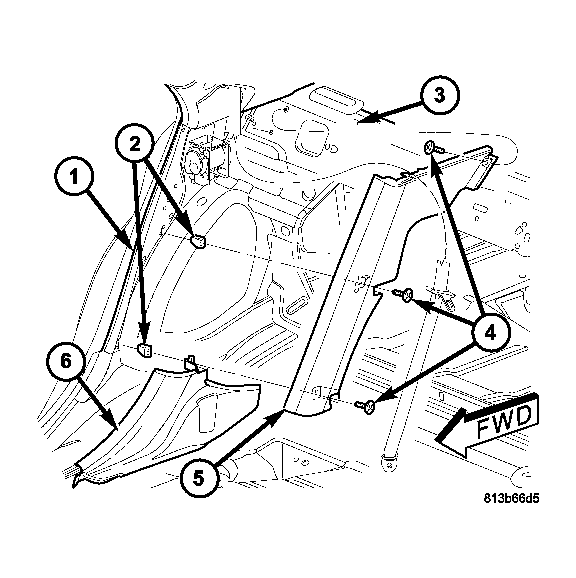

Fig 1: Lower C-Pillar Trim
GC0013502Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the rear seat cushion from the vehicle. (Refer to BODY/SEATS/SEAT CUSHION COVER - REMOVAL) .
  2. Remove the rear seat back side bolster from the quarter inner panel (1). (Refer to BODY/SEATS/SEAT BACK CUSHION/COVER - REMOVAL) .
  3. Remove the screw (4) that secures the upper end of the lower C-pillar trim (5) to the rear shelf panel (3).
  4. Remove the two screws that secure the lower C-pillar trim to the quarter inner panel.
  5. Remove the lower C-pillar trim from the quarter inner panel.
