Shield-Wheelhouse - Front: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

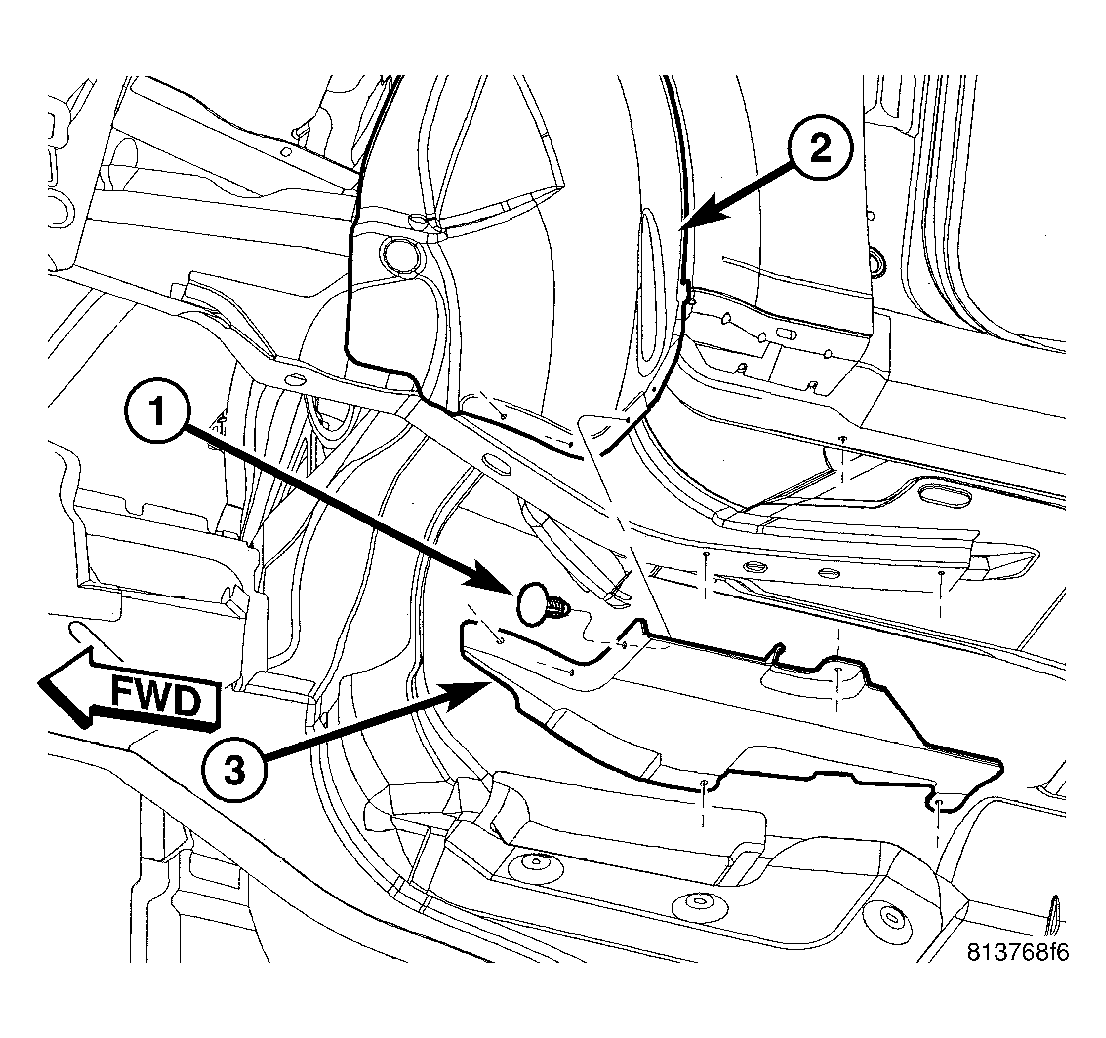

Fig 1: Shield 1
GC0013434Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise and support the vehicle.
  2. Remove the wheels from the side of the vehicle being serviced (Refer to TIRES/WHEELS - REMOVAL) .
  3. Remove the body side cladding from the side of the vehicle being serviced (Refer to BODY/EXTERIOR/BODY SIDE CLADDING - REMOVAL) .
  4. Remove the push-pins (1) that secure the lower front wheelhouse shield (3) to the front wheelhouse shield (3) and the body.
  5. Remove lower front wheelhouse shield from the vehicle.

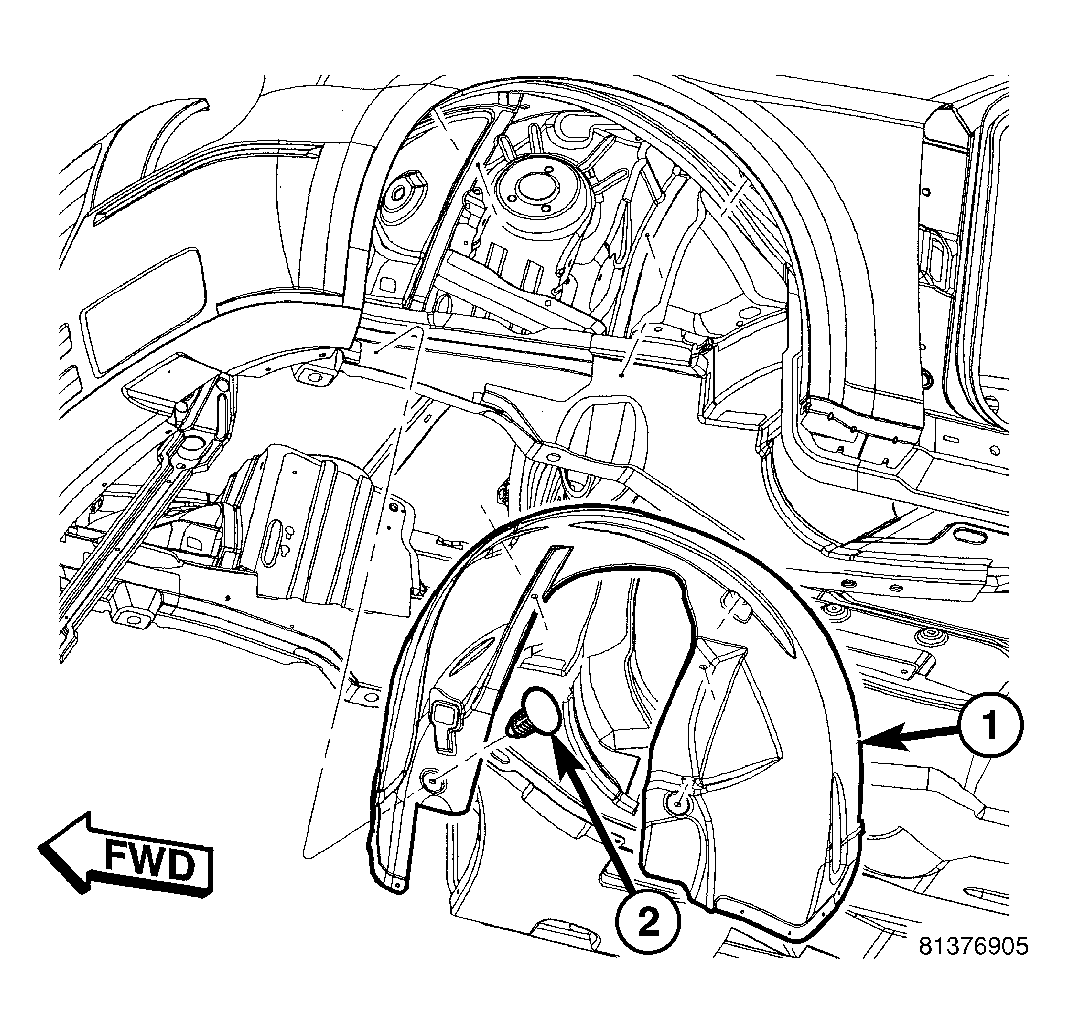

    Fig 2: Shield 3
    GC0013436Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the front belly pan (Refer to BODY/EXTERIOR/BELLY PAN - REMOVAL) .
  7. Remove the push-pins (2) that secure the front wheelhouse shield (1) to the body.
  8. Remove the front wheelhouse shield from the vehicle.
