Belly Pan: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Locating Front Belly Pan And Screws
GC0012960Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise and support the vehicle.
  2. Remove the screws (1) that secure the front belly pan (2) to the underside of the vehicle.
  3. Remove the front belly pan from the underside of the vehicle.

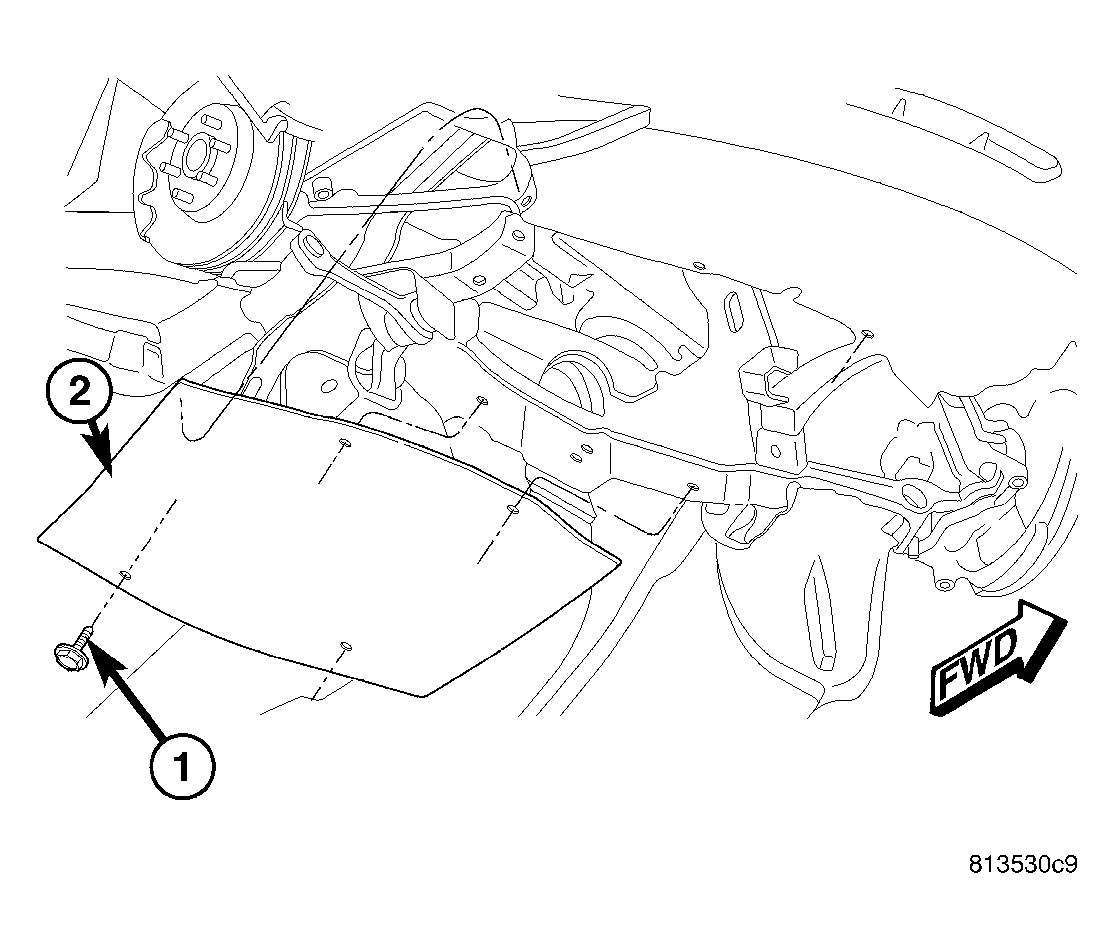

    Fig 2: Rear Belly Pan
    GC0013420Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the screws (1) that secure the rear belly pan (2) to the underside of the vehicle.
  5. Remove the rear belly pan from the underside of the vehicle.
