Cladding-Body Side: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

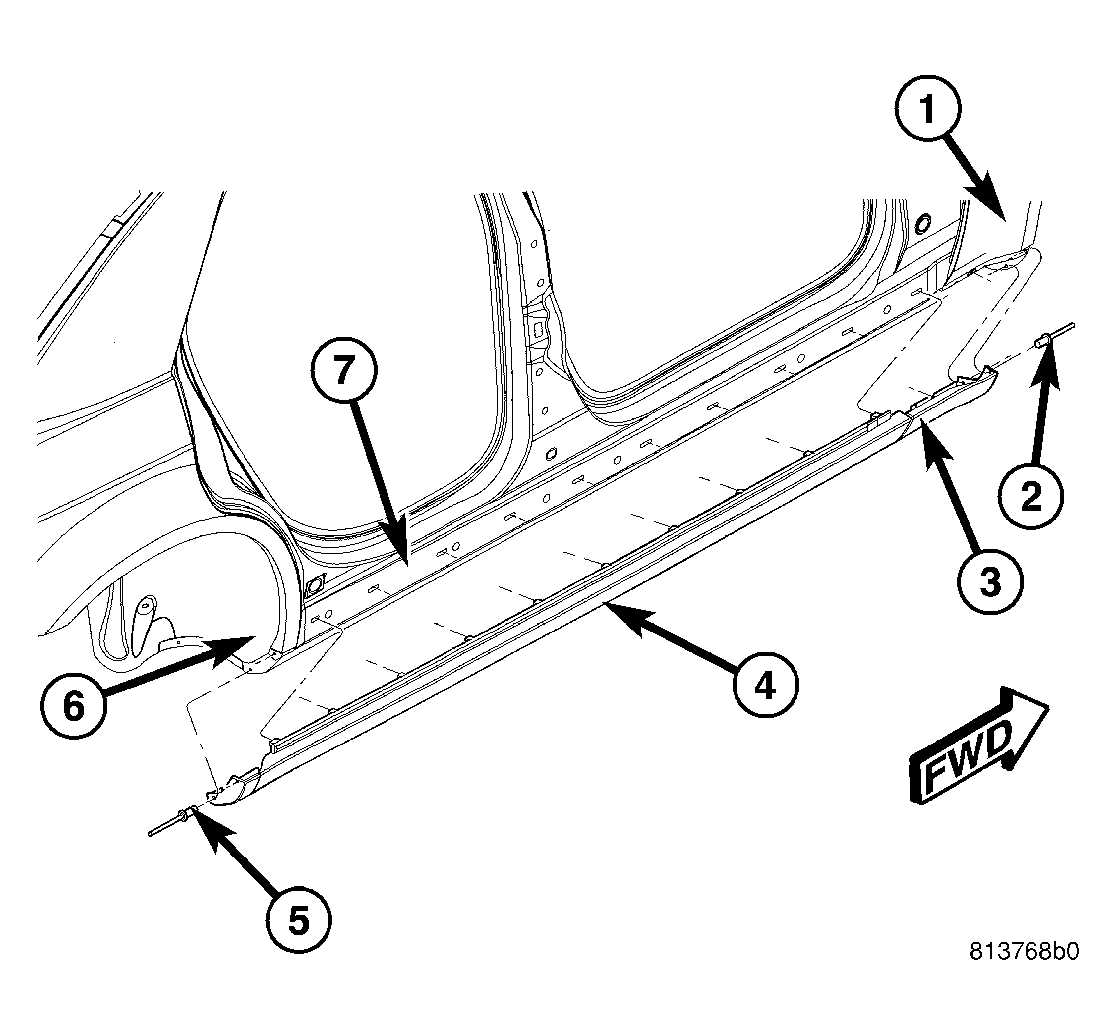

Fig 1: Body Side Cladding
GC0013421Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise and support the vehicle.
  2. Remove the wheels from the side of the vehicle being serviced (Refer to TIRES/WHEELS - REMOVAL) .
  3. Remove the pop rivets (2 and 5) from the front fender (1) and rear quarter panel (6).
  4. Remove the rear body side cladding (4) by disengaging the cladding retaining clips from the rocker panel (7).
  5. Remove the front body side cladding (3) by disengaging the retaining clip from the front fender.
