Seal-Crankshaft Rear Oil: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Oil Seal Retainer
GC0015331Courtesy of DAIMLERCHRYSLER CORP.
NOTE: The integrated rear crankshaft seal (2) is not interchangeable with the cast aluminum rear seal adapter and seal assembly.
NOTE: Inspect the crankshaft to make sure no nicks or burrs are on the seal surface.
  1. Clean sealing surfaces thoroughly.
  2. Apply engine oil to the seal lip inside diameter.

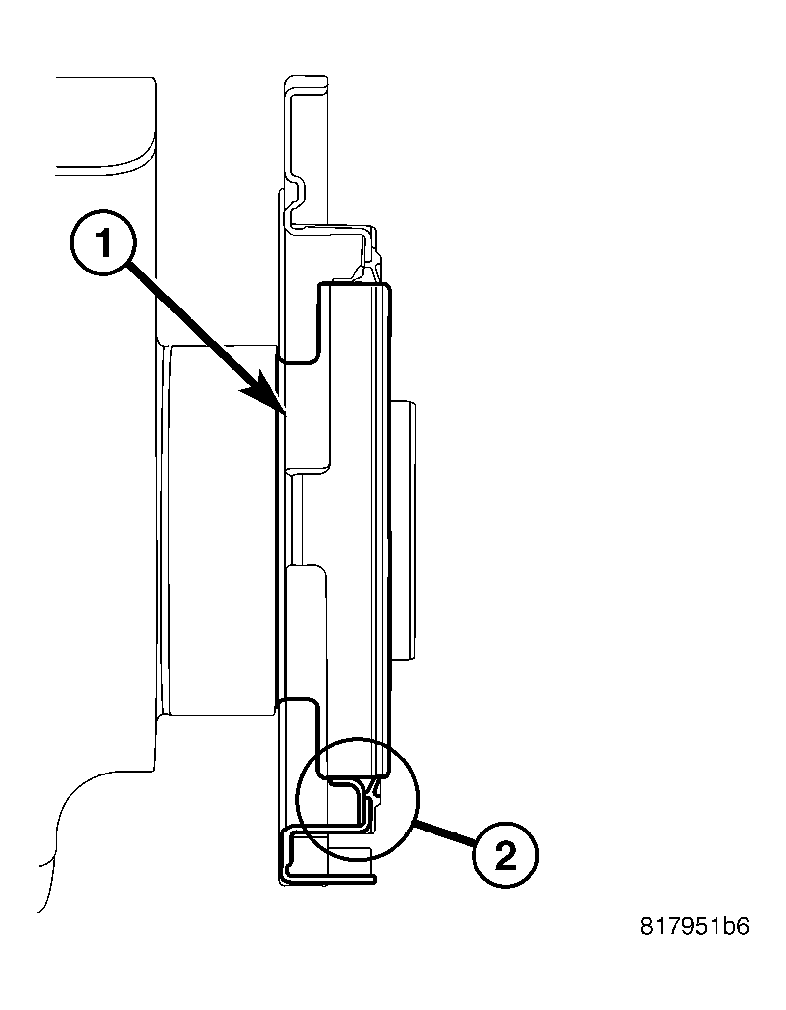

    Fig 2: REAR SEAL INSTALLED
    GC0040301Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: The seal lip (2) on the retainer must always uniformly curl inward toward the engine on the crankshaft (1).

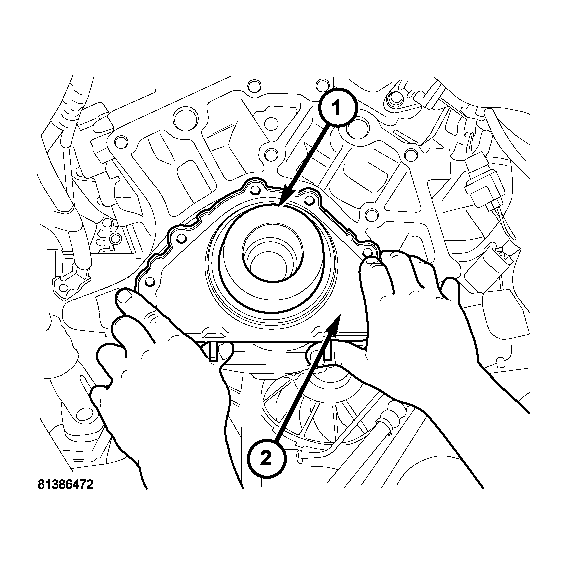

    Fig 3: Rear Main Installation
    GC0015332Courtesy of DAIMLERCHRYSLER CORP.
  3. Position the special tool 6926 (1) onto the crankshaft and gently slide the seal (2) over the crankshaft.
  4. Install seal retaining bolts finger tight.
    Fig 4: Rear Main - Special Tool 8225
    GC0015333Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: The following steps must be performed to prevent oil leaks at sealing joints.
  5. Attach Special Tools 8225 (1) to pan rail using the oil pan fasteners.
    NOTE: Make sure that the "2.7L" stamped on the special tool is facing the cylinder block (flat side of tools against pan rail).
    NOTE: Make sure that the seal flange is flush with the block oil pan sealing surface.
  6. While applying firm pressure to the seal assembly (2) against Special Tools 8225 (1), tighten seal assembly screws to 12 N.m (105 in. lbs.).
  7. Remove special tool 8225.
  8. Install oil pan (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
    Fig 5: Locating Attaching Bolts, Backing Plate And Flex Plate
    GC0015329Courtesy of DAIMLERCHRYSLER CORP.
  9. Install flex plate (1), backing plate (3), and attaching bolts (2) (Refer to ENGINE/ENGINE BLOCK/FLEX PLATE - INSTALLATION) .
  10. Install transmission (Refer to INSTALLATION ).
    Fig 6: Lower Splash Shield
    GC0015233Courtesy of DAIMLERCHRYSLER CORP.
  11. Install lower splash shield retaining bolts (1) and splash shield (2).
  12. Lower vehicle.
    Fig 7: Air Cleaner Housing
    GC0015232Courtesy of DAIMLERCHRYSLER CORP.
  13. Fill with oil (5).
    Fig 8: Locating Battery
    GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  14. Connect negative battery (1) cable.
  15. Start engine and check for leaks.
