Section 15 (2.7L Engine (Service Information)): Pump-Oil: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

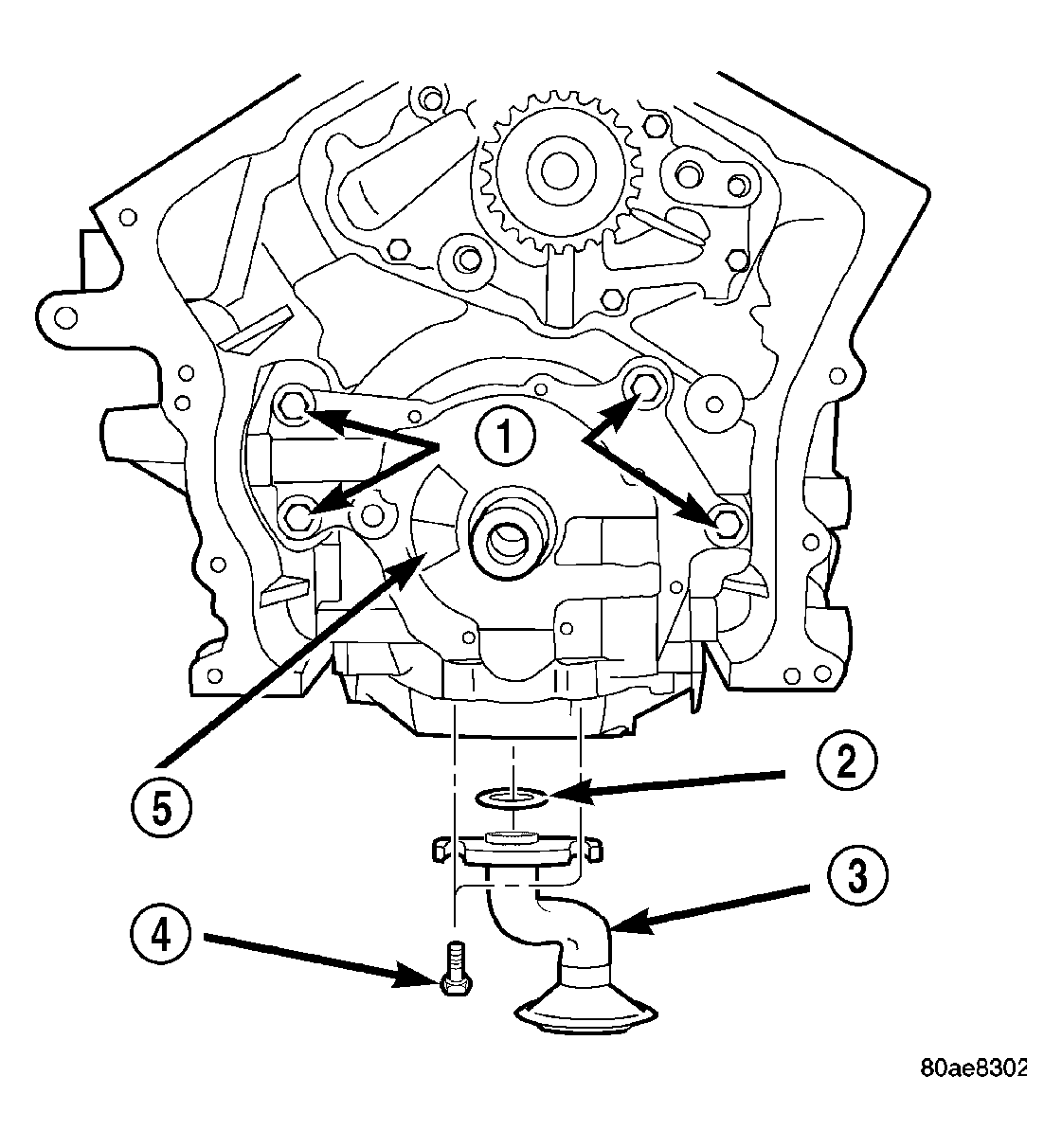

Fig 1: Oil Pump and Pick-up Tube
GC0015323Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove crankshaft vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL) .
  2. Remove timing chain cover (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL ).
  3. Remove timing chain and sprockets (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .
  4. Remove oil pan (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .
  5. Remove oil pick-up tube (3) and O-ring (2).

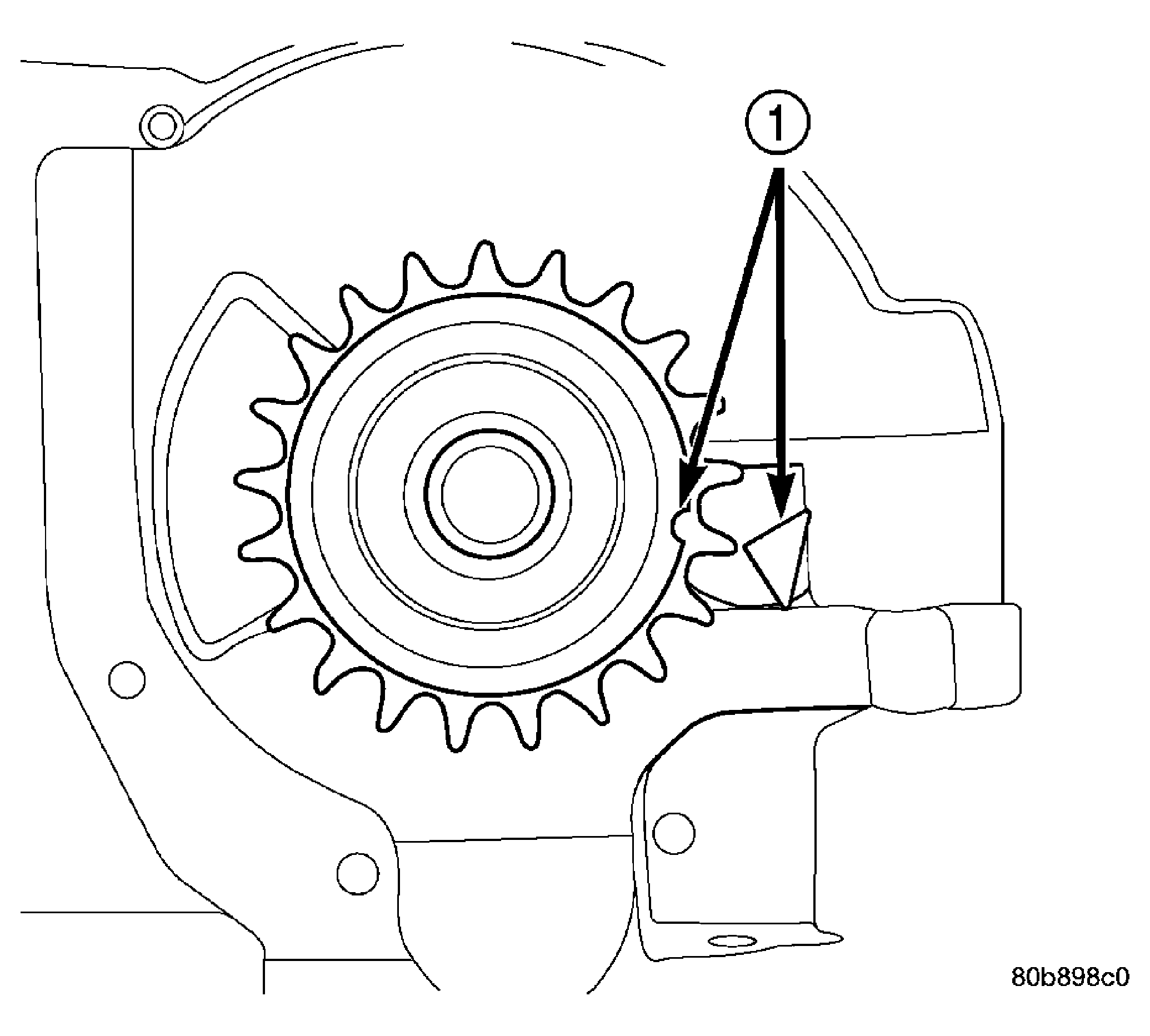

    Fig 2: Crankshaft Positioned at 60 Degrees ATDC No. 1 Cylinder
    GC0015371Courtesy of DAIMLERCHRYSLER CORP.
  6. Ensure that crankshaft position is at 60° ATDC of No. 1 cylinder, or crankshaft sprocket mark aligns with mark on oil pump (1). This position will properly locate oil pump upon installation.
    Fig 3: Oil Pump and Pick-up Tube
    GC0015323Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove oil pump attaching bolts (1).
  8. Remove oil pump (5).
