Section 15 (2.7L Engine (Service Information)): Damper-Crankshaft: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Battery

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect negative battery (1) cable located in trunk.
Remove accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .

Fig 2: Damper Holder
Courtesy of DAIMLERCHRYSLER CORP.
Use special tool 9365 Damper Holder (2) to hold damper (1) while removing attaching bolt (3).

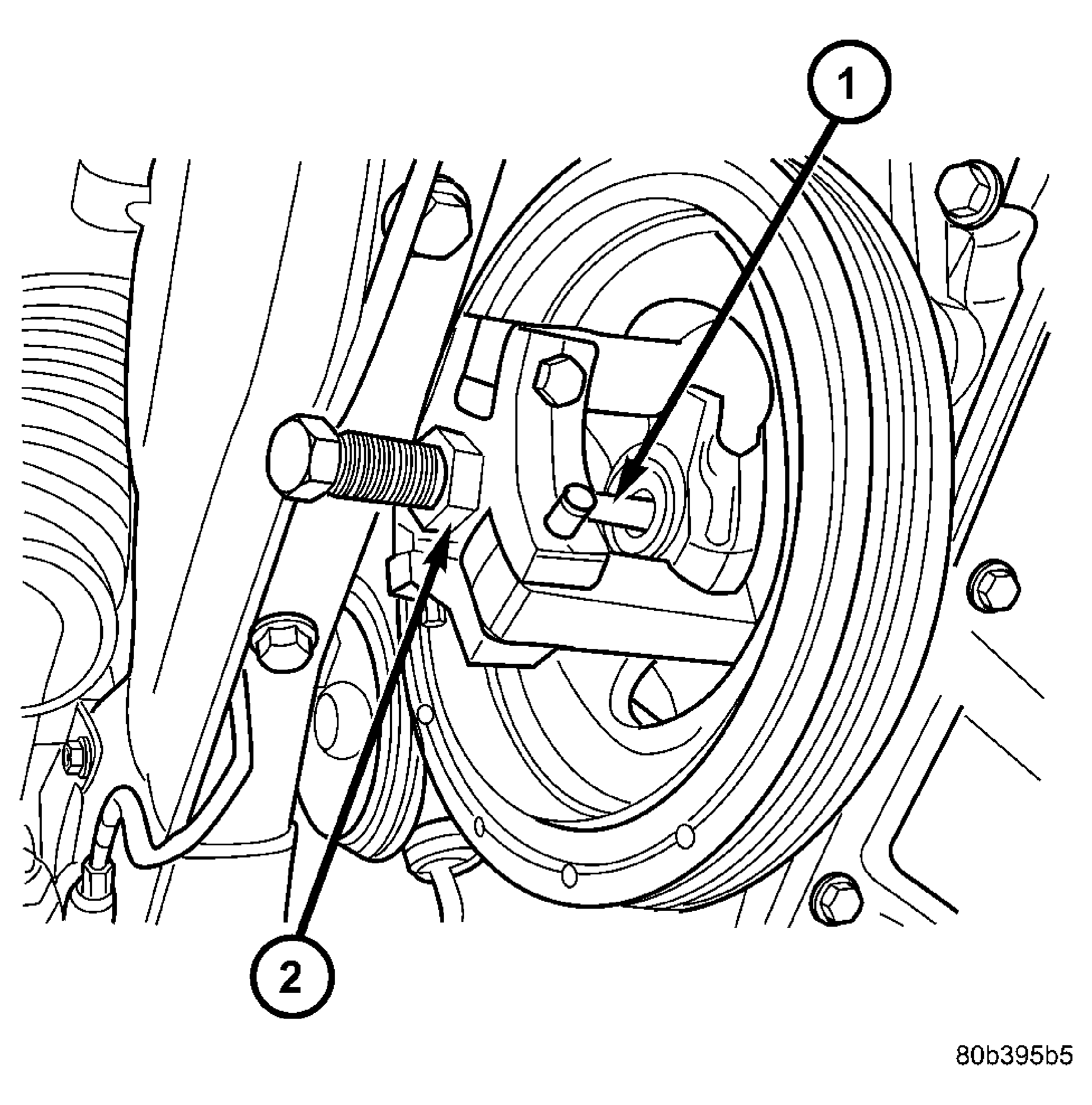

Fig 3: Vibration Damper- Removal
Courtesy of DAIMLERCHRYSLER CORP.
Remove damper by using Special Tools 8194 Insert (1) and 8454 Puller (2).
