Cover-Timing Chain: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

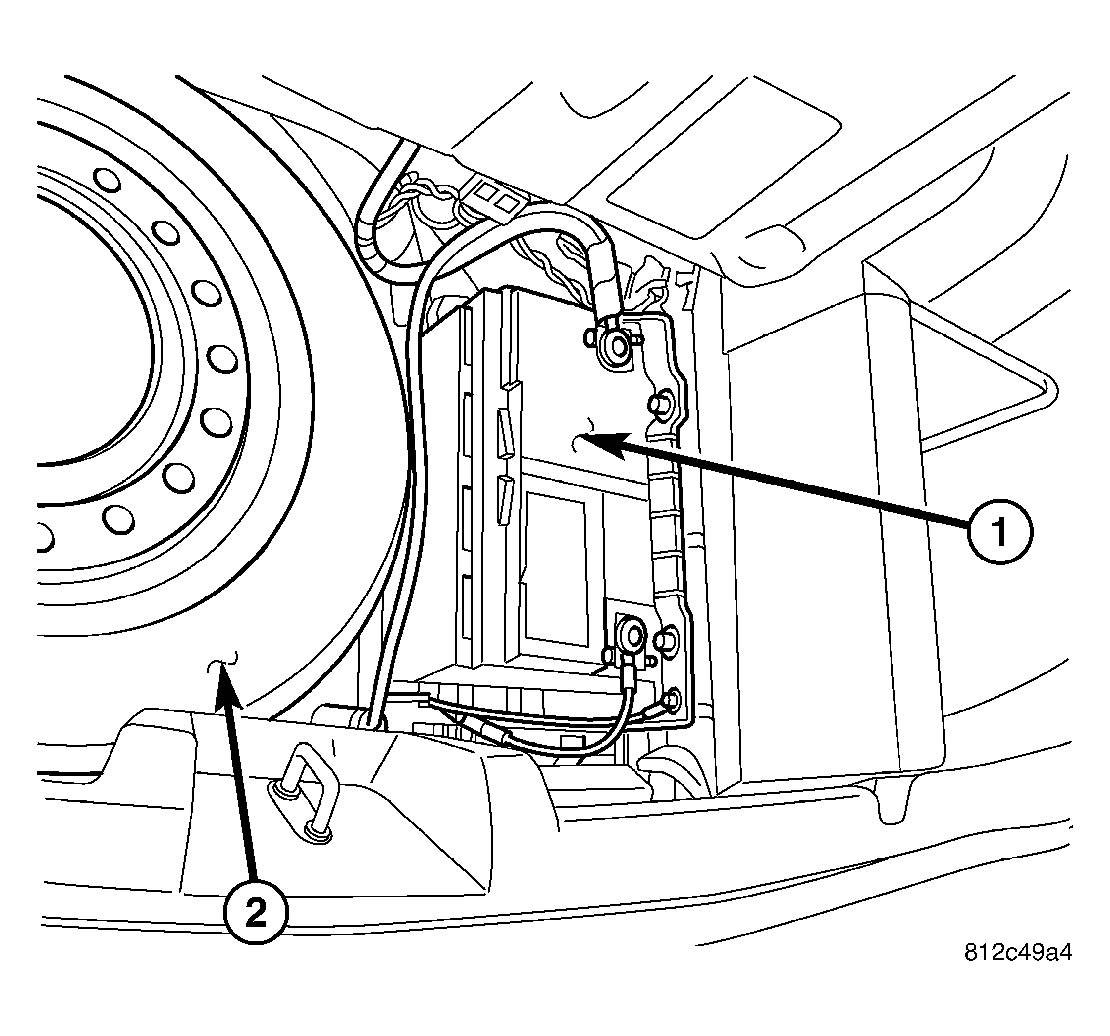

Fig 1: Locating Battery
GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery (1) cable.
  2. Drain cooling system (Refer to STANDARD PROCEDURE ).
  3. Remove coolant pressure container (Refer to REMOVAL ).
    Fig 2: Lower Splash Shield
    GC0015233Courtesy of DAIMLERCHRYSLER CORP.
  4. Raise vehicle on hoist.
  5. Remove lower splash shield retaining bolts (1) and splash shield (2).
  6. Remove accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  7. Remove crankshaft vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL) .
  8. Lower vehicle.

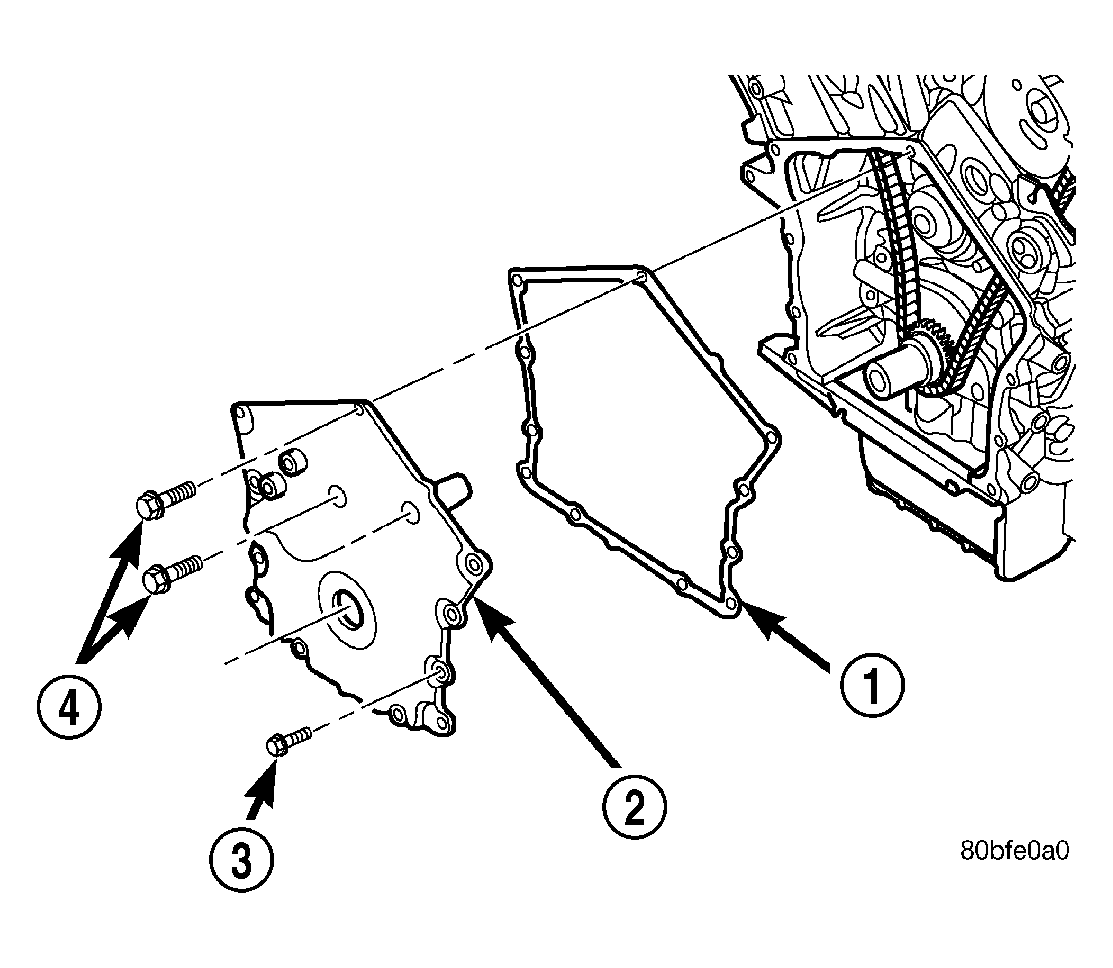

    Fig 3: Timing Chain Cover
    GC0015381Courtesy of DAIMLERCHRYSLER CORP.
  9. Remove timing chain cover bolts (3)&(4).
  10. Remove timing chain cover (2).
  11. Discard timing chain cover gasket (1). Remove front crankshaft oil seal from cover (2).
