Cylinder Head: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Checking Cylinder Head Bolts for Stretching (Necking)

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced

Necking can be checked by holding a straight edge against the threads (3). If all the threads do not contact the scale (2), the bolt must be replaced.

CAUTION: When cleaning cylinder head and cylinder block surfaces, DO NOT use a metal scraper because the surfaces could be cut or ground. Use ONLY a wooden or plastic scraper.

Clean sealing surfaces of cylinder head and block (Refer to ENGINE - STANDARD PROCEDURE) .
Install new head gasket over locating dowels.
Install cylinder head to block, assuring head is properly positioned over locating dowels.

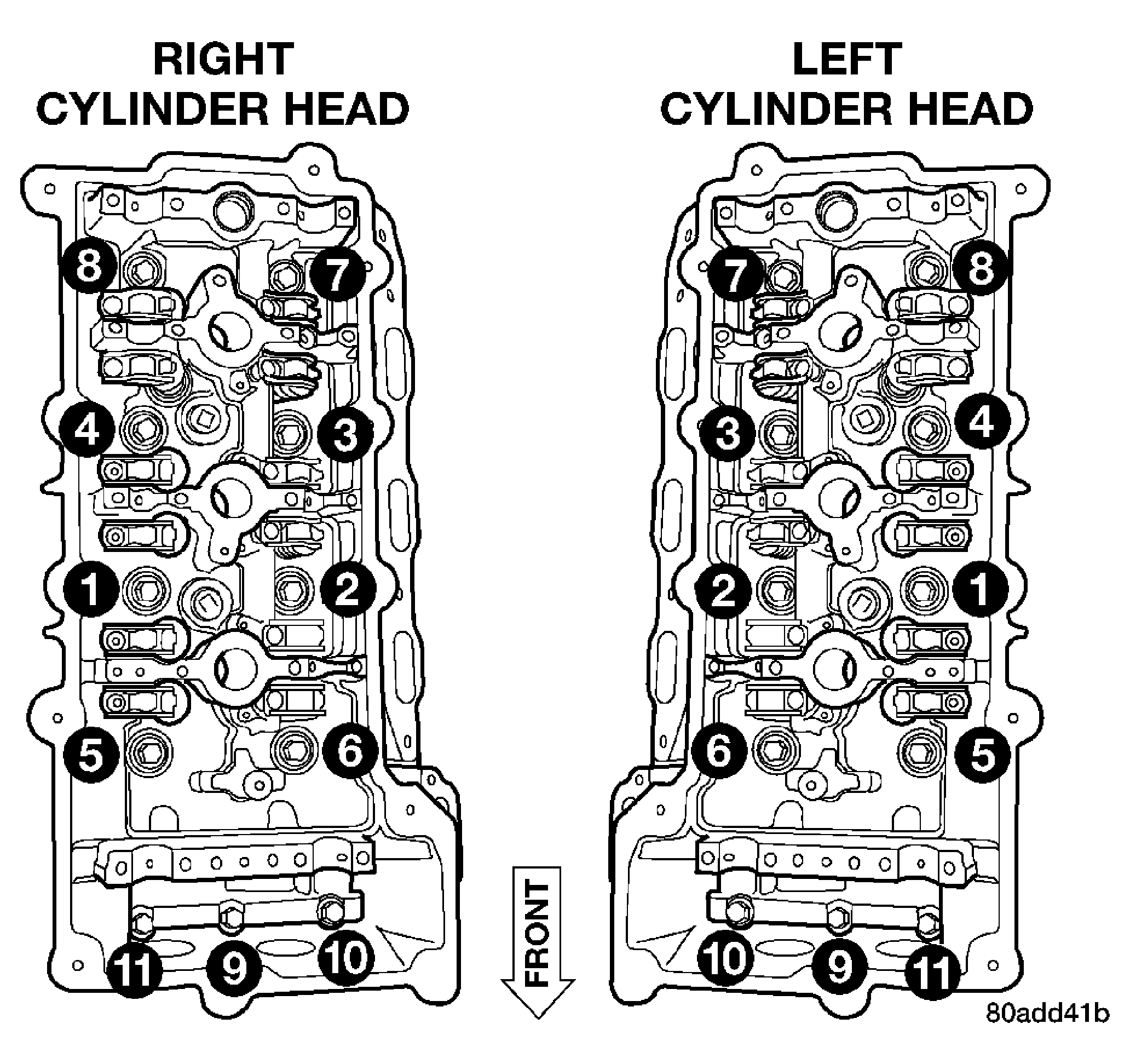

Fig 2: Cylinder Head Tightening Sequence
Courtesy of DAIMLERCHRYSLER CORP.
Lubricate bolt threads with clean engine oil and install bolts.
Tighten bolts in sequence shown in Fig 2 for left head (2) and right head (1), using the following steps and torque values:
1. Step 1: Bolts 1-8 to 48 N.m (35 ft. lbs.)
2. Step 2: Bolts 1-8 to 75 N.m (55 ft. lbs.)
3. Step 3: Bolts 1-8 to 75 N.m (55 ft. lbs.)
4. Step 4: Bolts 1-8 to +90° Turn Do not use a torque wrench for this step.
5. Step 5: Bolts 9-11 to 28 N.m (250 in. lbs.)
For left cylinder head installation:
1. Install engine oil dipstick tube.
2. Install generator.
For right cylinder head Installation:
1. Install cylinder head ground strap.
2. Install EGR valve (if equipped) (Refer to EMISSIONS CONTROL/EXHAUST GAS RECIRCULATION/VALVE - INSTALLATION) .

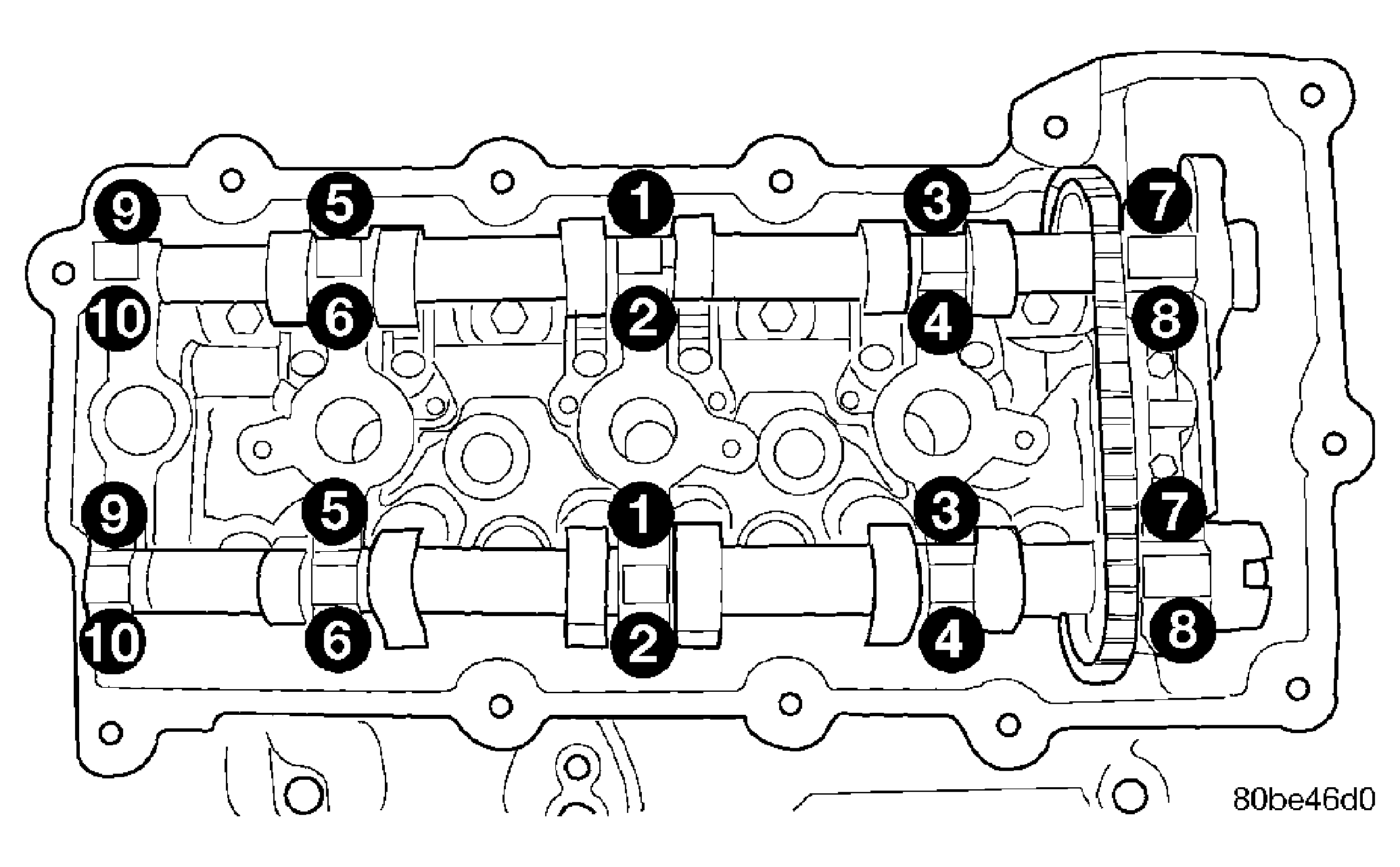

Fig 3: Camshaft Bearing Cap Tightening Sequence
Courtesy of DAIMLERCHRYSLER CORP.
Install all valvetrain components and camshafts (Refer to ENGINE/CYLINDER HEAD/CAMSHAFT(S) - INSTALLATION ). Tighten camshaft bearing caps in sequence shown in Fig 3 to 12 N.m (105 in. lbs.).

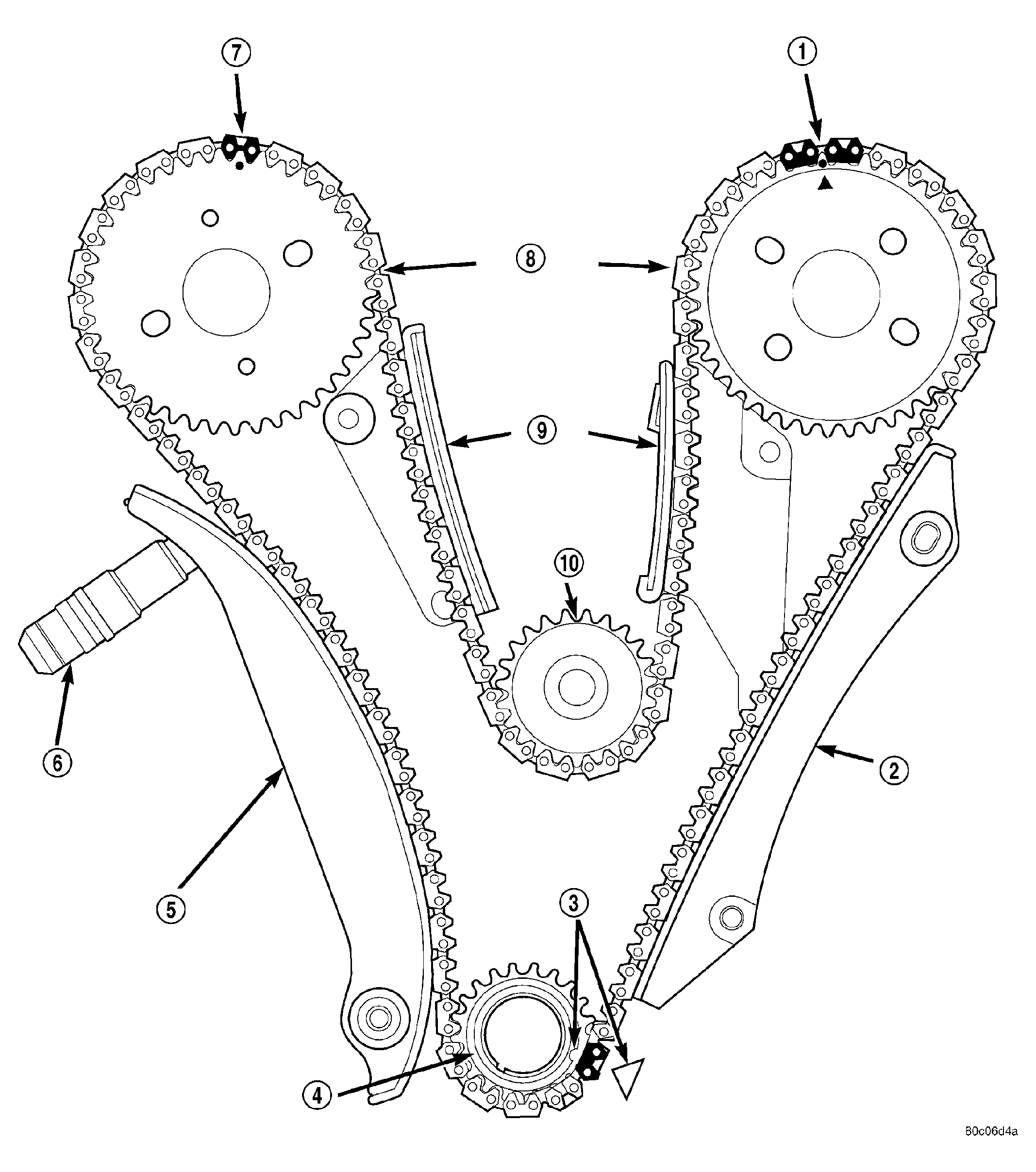

Fig 4: Timing Chain Alignment Marks - Primary
Courtesy of DAIMLERCHRYSLER CORP.
Install primary timing chain (7), guides (2, 5, 10) and sprockets (9) (Refer to ENGINE/VALVE TIMING/TIMING CHAIN AND SPROCKETS - INSTALLATION) .

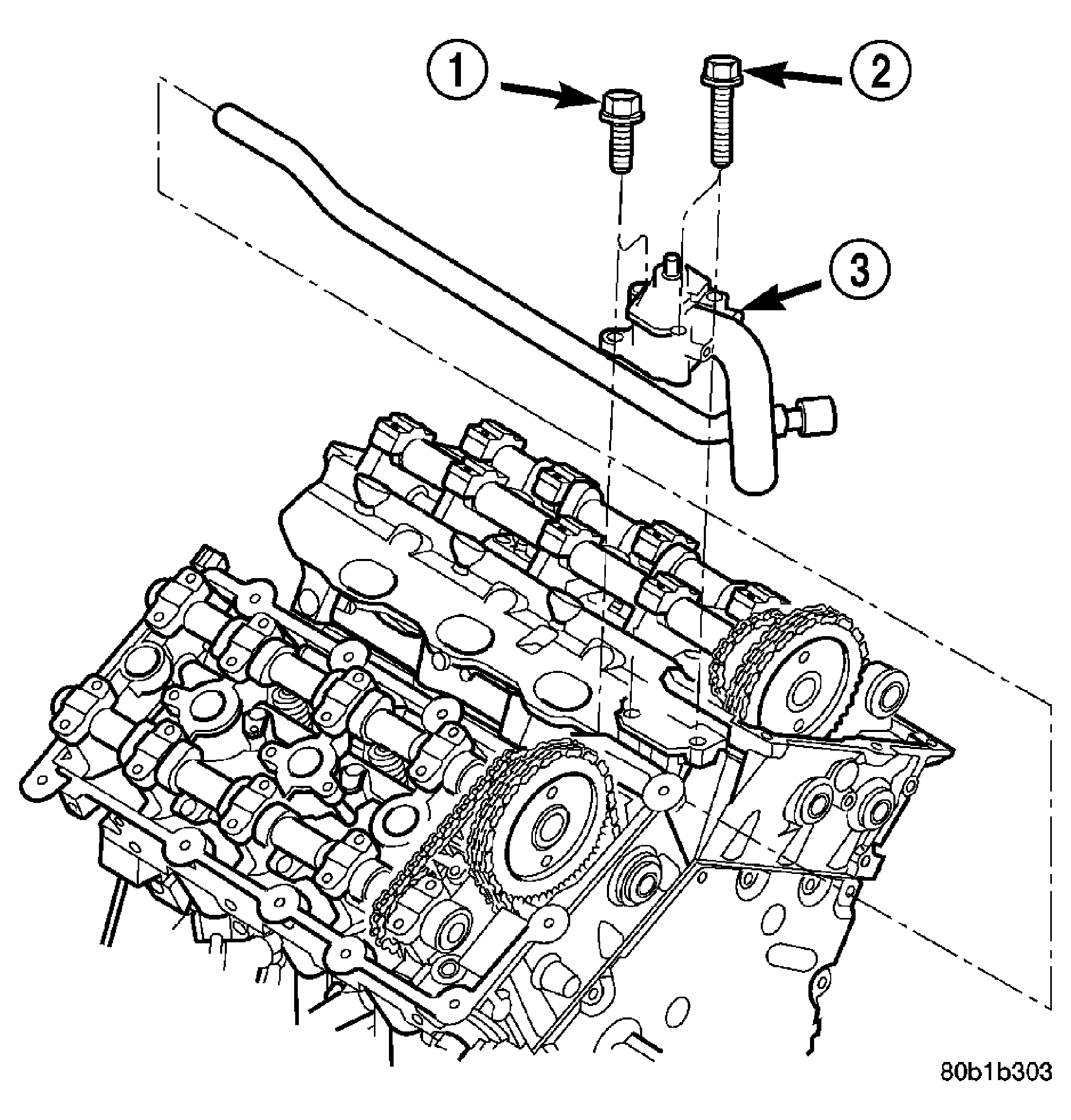

Fig 5: Water Outlet Connector
Courtesy of DAIMLERCHRYSLER CORP.
Install coolant outlet (3) (Refer to COOLING/ENGINE/COOLANT OUTLET HOUSING - INSTALLATION) .

Fig 6: Identifying Serpentine Accessory Drive Belt
Courtesy of DAIMLERCHRYSLER CORP.
Install lower intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) .
Install cylinder head covers (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - INSTALLATION ).
Connect camshaft position sensor (2) and coolant temperature sensor (1) connectors.
Install timing chain cover (Refer to ENGINE/VALVE TIMING/TIMING CHAIN COVER(S) - INSTALLATION ).
Install crankshaft vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION) .
Install upper intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) .

Fig 7: Locating Oil Pressure Switch
Courtesy of DAIMLERCHRYSLER CORP.
Connect oil pressure sensor (1) connector.

Fig 8: Identifying Serpentine Accessory Drive Belt
Courtesy of DAIMLERCHRYSLER CORP.
Install accessory drive belt (5) (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
Fill cooling system (Refer to COOLING/ENGINE - STANDARD PROCEDURE).

Fig 9: Locating Battery
Courtesy of DAIMLERCHRYSLER CORP.
Connect negative battery (1) cable.
Start engine and check for leaks.
