Section 15 (2.7L Engine (Service Information)): Damper-Crankshaft: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

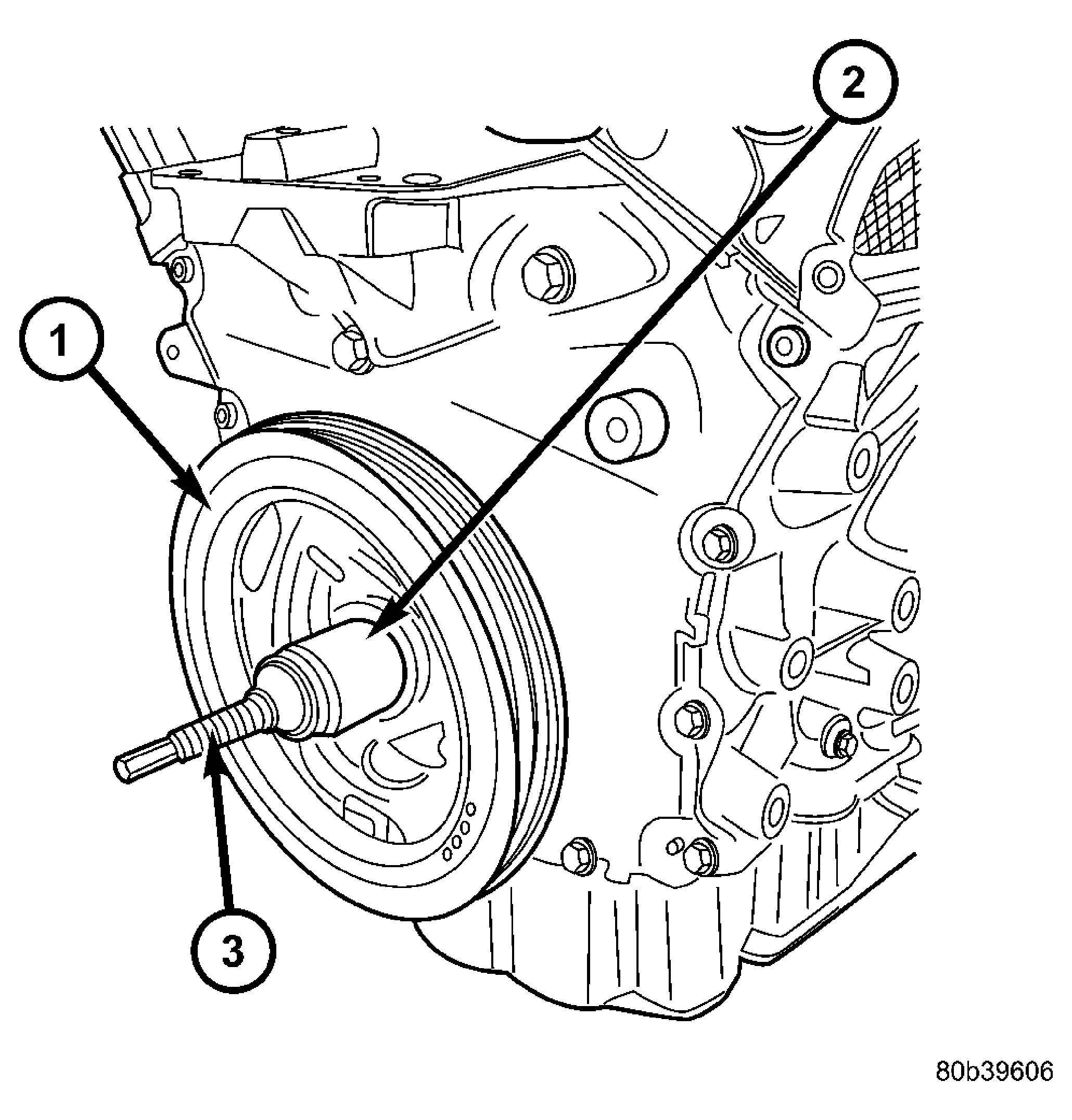

Fig 1: Vibration Damper- Installation
GC0015344Courtesy of DAIMLERCHRYSLER CORP.
  1. Install damper (1) using Special Tools 8179 Screw (3), with Nut and Thrust Bearing from 6792, and 6792-1 Installer (2).
    Fig 2: Damper Holder
    GC0015343Courtesy of DAIMLERCHRYSLER CORP.
  2. Install damper attaching bolt (3). Use special tool 9365 damper holder (2) to hold damper (1) while tightening attaching bolt to 170 N.m (125 ft. lbs.).
  3. Install accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
    Fig 3: Locating Battery
    GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect negative battery (1) cable located in trunk.
