Timing Chain

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Locating Battery
GC0015222Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery (1) cable.
  2. Drain cooling system (Refer to STANDARD PROCEDURE ).
  3. Remove upper intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - REMOVAL) .
  4. Remove cylinder head covers, crankshaft vibration damper, and timing chain cover (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - REMOVAL ) (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL) (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL ).

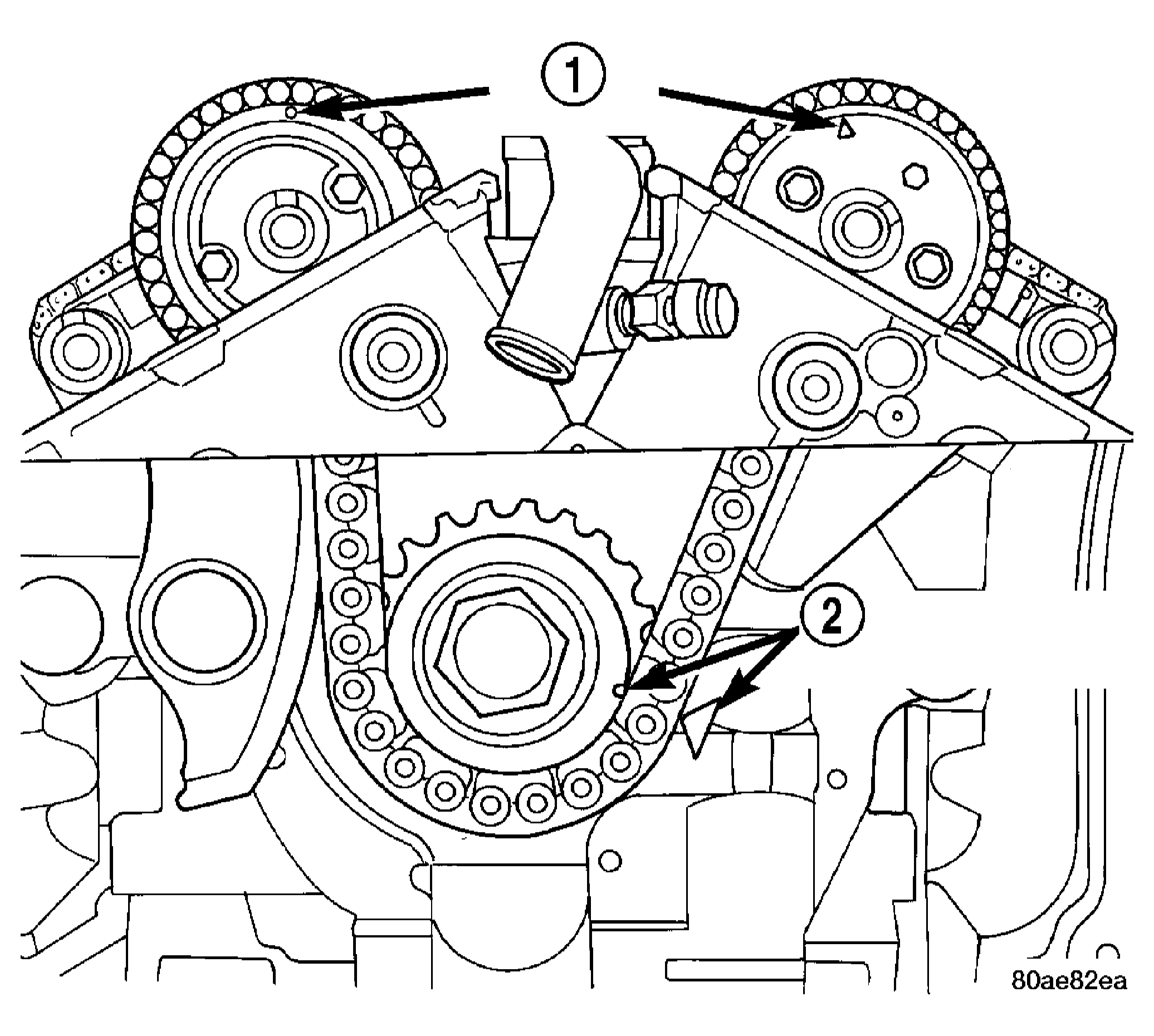

    Fig 2: Timing Mark Alignment
    GC0015282Courtesy of DAIMLERCHRYSLER CORP.
    CAUTION: When aligning timing marks, always rotate engine by turning the crankshaft. Failure to do so will result in valve and/or piston damage.
  5. Align crankshaft sprocket timing mark to mark on oil pump housing (2). The mark on oil pump housing is 60° ATDC of #1 cylinder.
    CAUTION: When the timing chain is removed and the cylinder heads are still installed, DO NOT rotate the camshafts or crankshaft without first locating the proper crankshaft position. Failure to do so will result in valve and/or piston damage.

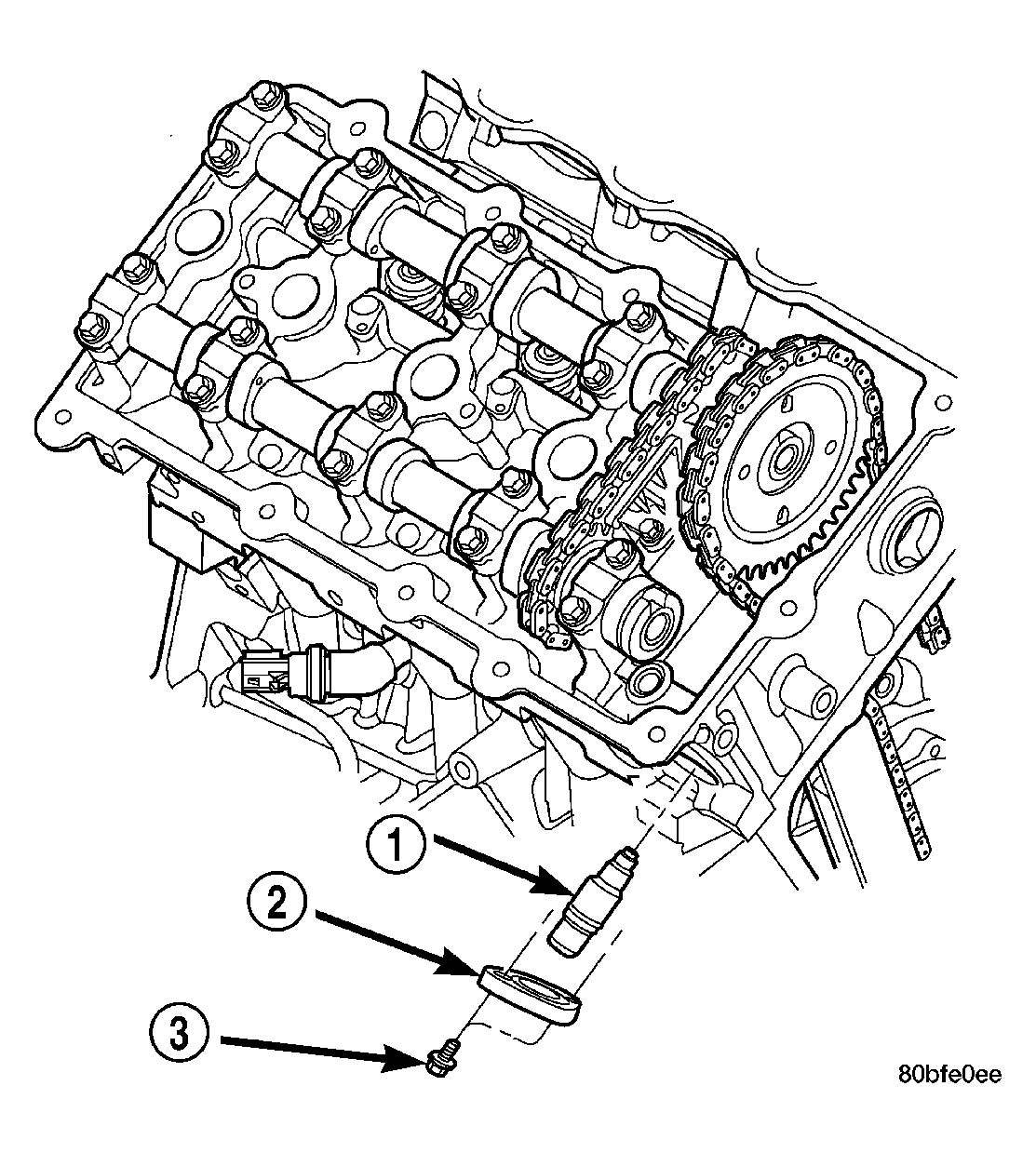

    Fig 3: Primary Timing Chain Tensioner
    GC0015384Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove primary timing chain tensioner retainer cap (2) and tensioner (1) from right cylinder head.

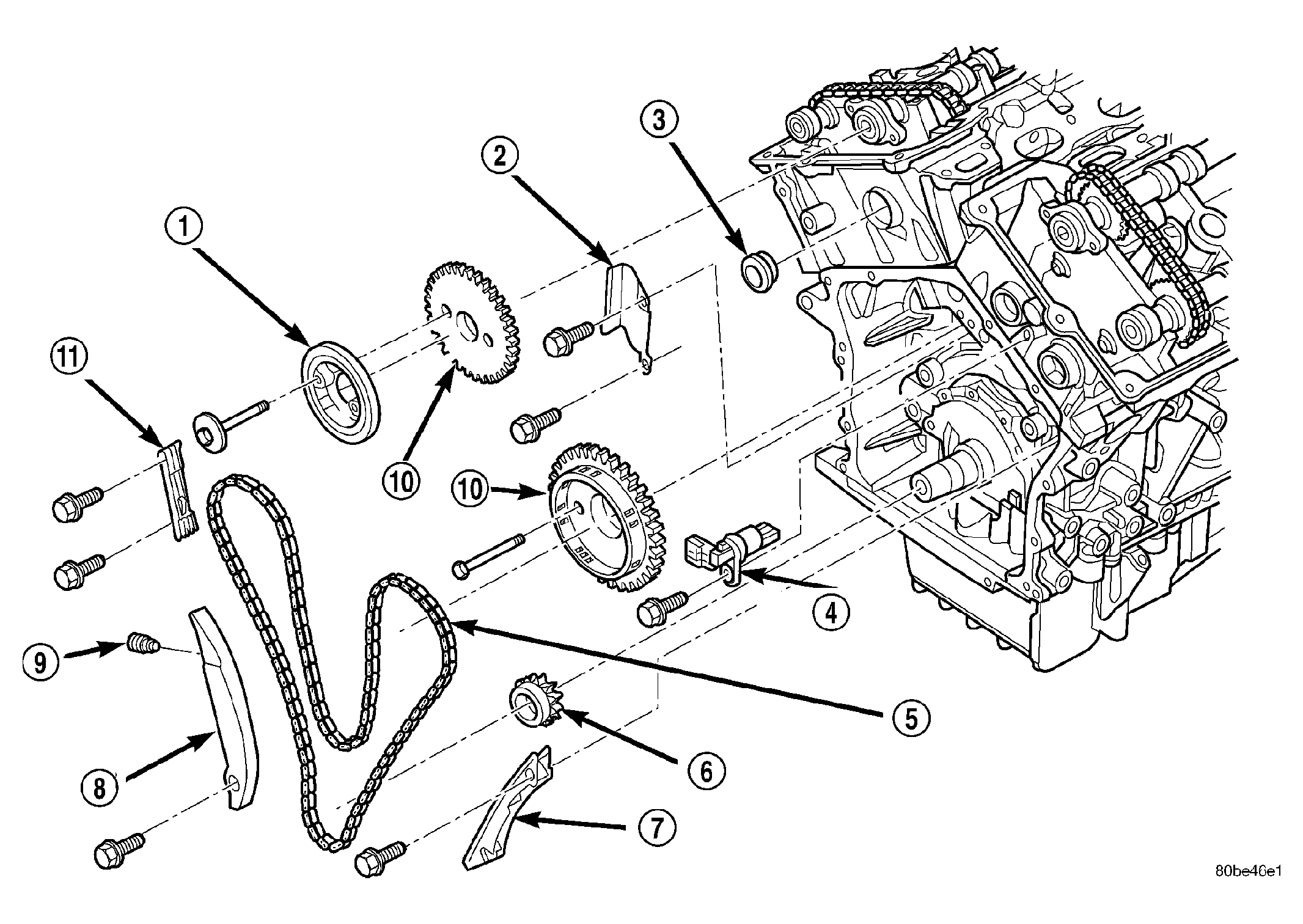

    Fig 4: Timing Drive System - Primary
    GC0015383Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect and remove camshaft position sensor (4) from left cylinder head.
  8. Remove timing chain guide access plugs (3) from cylinder heads.
    NOTE: When camshaft sprocket bolts are removed, the camshafts will rotate in a clockwise direction.
  9. Starting with the right camshaft sprocket, remove the sprocket attaching bolts. Remove camshaft damper (1) (if equipped) and sprocket.
  10. Remove left side camshaft sprocket attaching bolts and remove sprocket.
  11. Remove lower chain guide (7) and tensioner arm (8).
  12. Remove the primary timing chain (5).
  13. For removal of crankshaft sprocket (6), (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT - REMOVAL) .
