Rear Wiper Motor: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

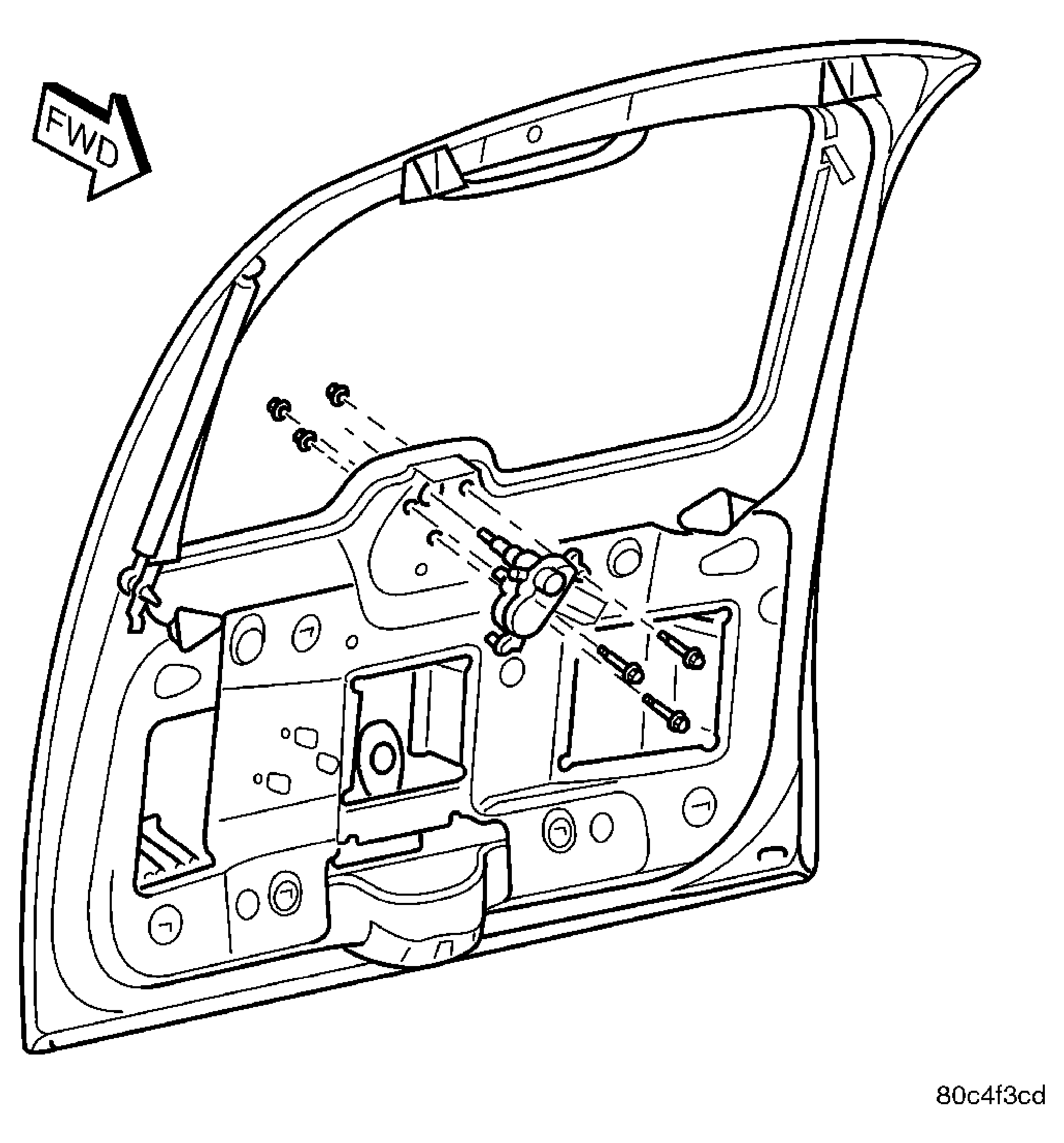

Fig 1: Removing/Installing Rear Wiper Motor
GC0021966Courtesy of DAIMLERCHRYSLER CORP.

Before installation activate wiper system to ensure the wiper module is in the PARK position. Position wiper arm so that the tip of the blade is on the park line on the glass.

NOTE: When servicing the rear wiper motor, replace all three rubber well-nuts.
  1. Install three bolts to the rear wiper motor. Torque screws to 6.5 N.m (60 in. lbs.).
  2. Connect harness connector.
  3. Install liftgate trim panel, refer to INSTALLATION  and (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - INSTALLATION) or (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - INSTALLATION) .
    Fig 2: Removing/Installing Rear Wiper Arm
    GC0021964Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the arm on the pivot.
  5. Install wiper arm retaining nut and torque to 18-20 N.m (160-175 in. lbs.).
  6. Install the rear wiper arm nut cap.
  7. Connect the battery negative cable.
  8. Close hood.
