Balance Shafts/Chain/Sprockets

NOTE: For service procedures requiring only temporary relocation of carrier assembly, refer to BALANCE SHAFT CARRIER procedure below.

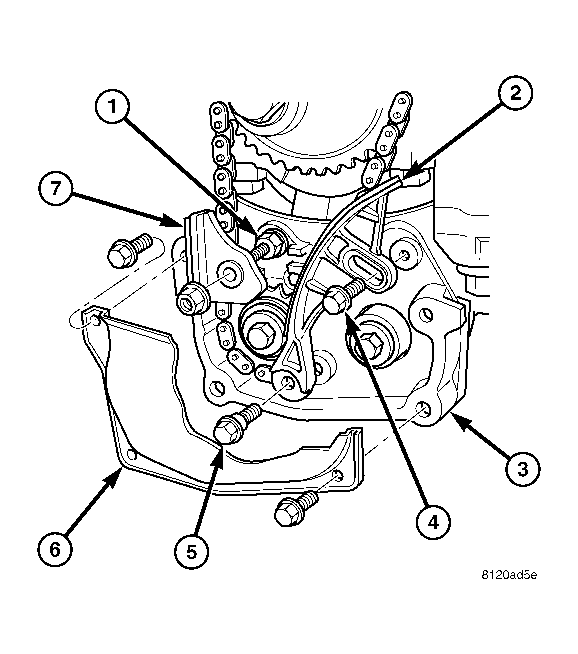

Fig 1: Chain Cover, Guide and Tensioner

Courtesy of DAIMLERCHRYSLER CORP.

1 - STUD

2 - TENSIONER (ADJUSTER)

3 - GEAR COVER

4 - ADJUSTER SCREW

5 - SHOULDERED PIVOT SCREW

6 - CHAIN COVER (CUTAWAY)

7 - GUIDE

Drain engine oil.
Remove the oil pan and pick-up tube (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .
If replacing crankshaft sprocket, remove oil pump (Refer to ENGINE/LUBRICATION/OIL PUMP - REMOVAL) .

Remove chain cover (6) , guide (7) and tensioner (2). Discard pivot screw (5) and adjuster screw (4). See Fig 1.

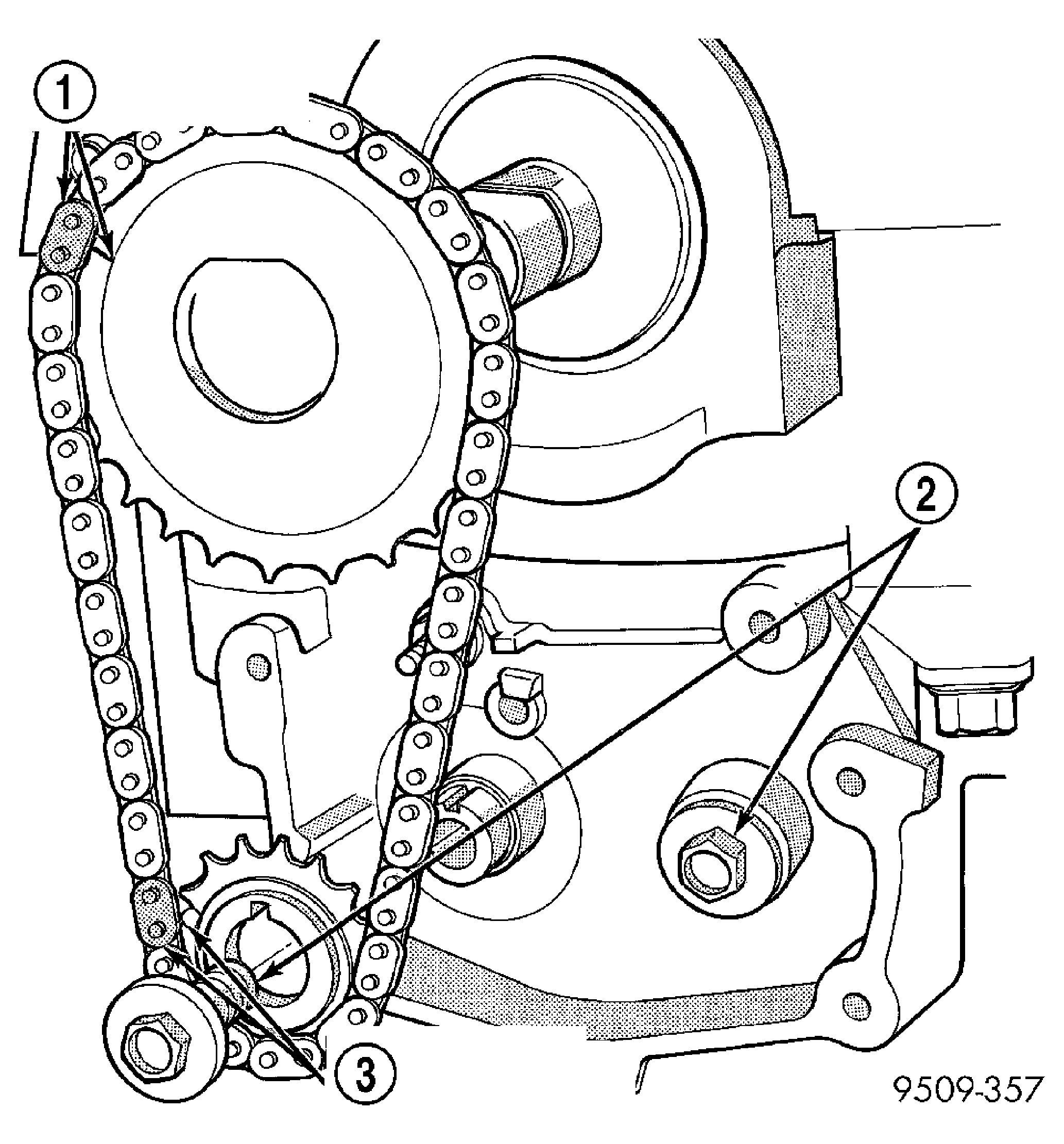

Fig 2: Drive Chain and Sprockets

Courtesy of DAIMLERCHRYSLER CORP.

1 - NICKEL PLATED LINK AND MARK

2 - GEAR/SPROCKET SCREWS

3 - NICKEL PLATED LINK AND DOT

Remove screw retaining balance shaft drive sprocket (2). See Fig 2. Remove chain and sprocket.

Using two wide pry bars, work the crankshaft sprocket back and forth until it is off the crankshaftshaft.

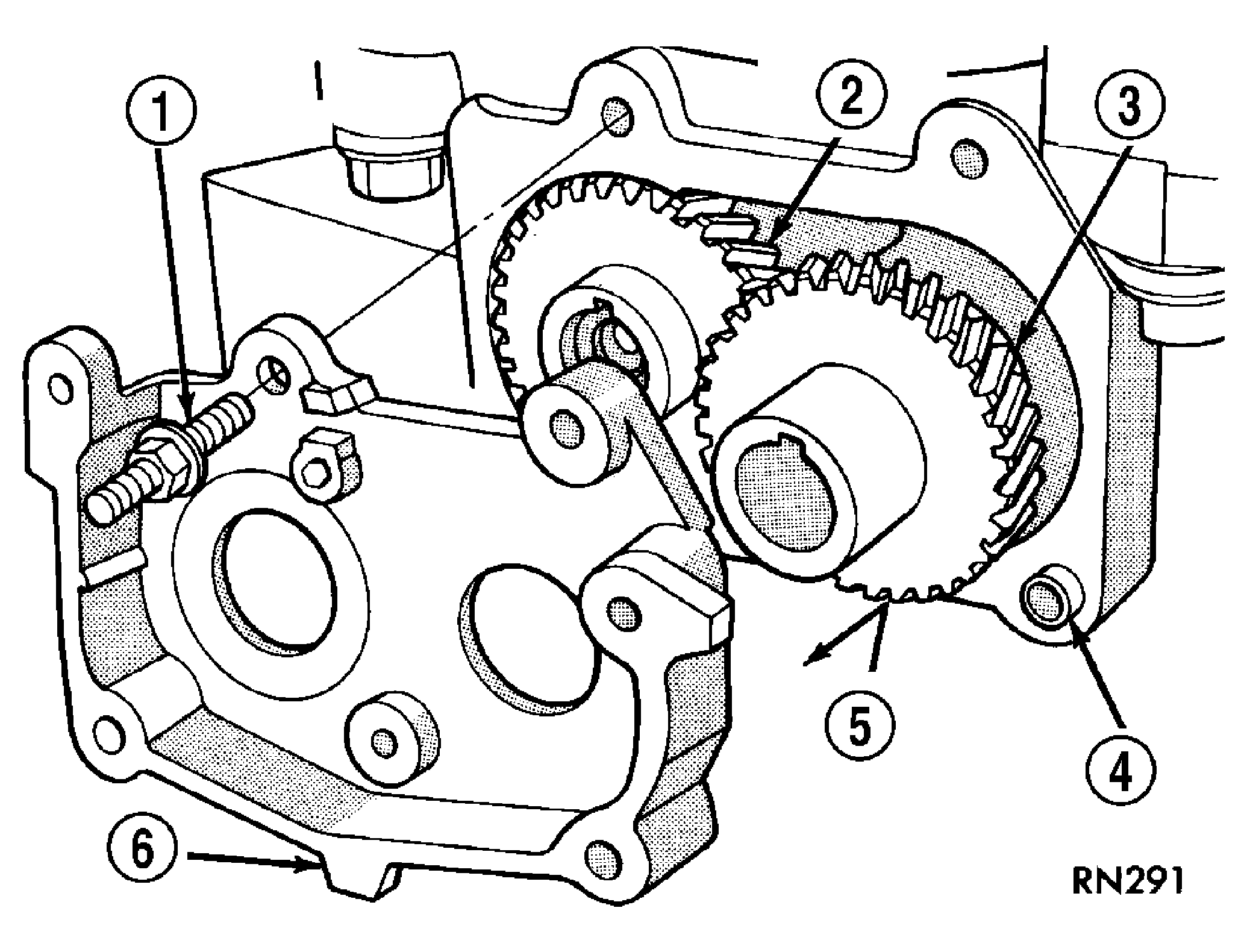

Fig 3: Gear Cover and Gears

Courtesy of DAIMLERCHRYSLER CORP.

1 - STUD (DOUBLE ENDED)

2 - DRIVE GEAR

3 - DRIVEN GEAR

4 - CARRIER DOWEL

5 - GEAR(S)

6 - GEAR COVER

Remove gear cover retaining stud (1) (double ended to also retain chain guide). Remove cover (6) and balance shaft gears (5). See Fig 3.

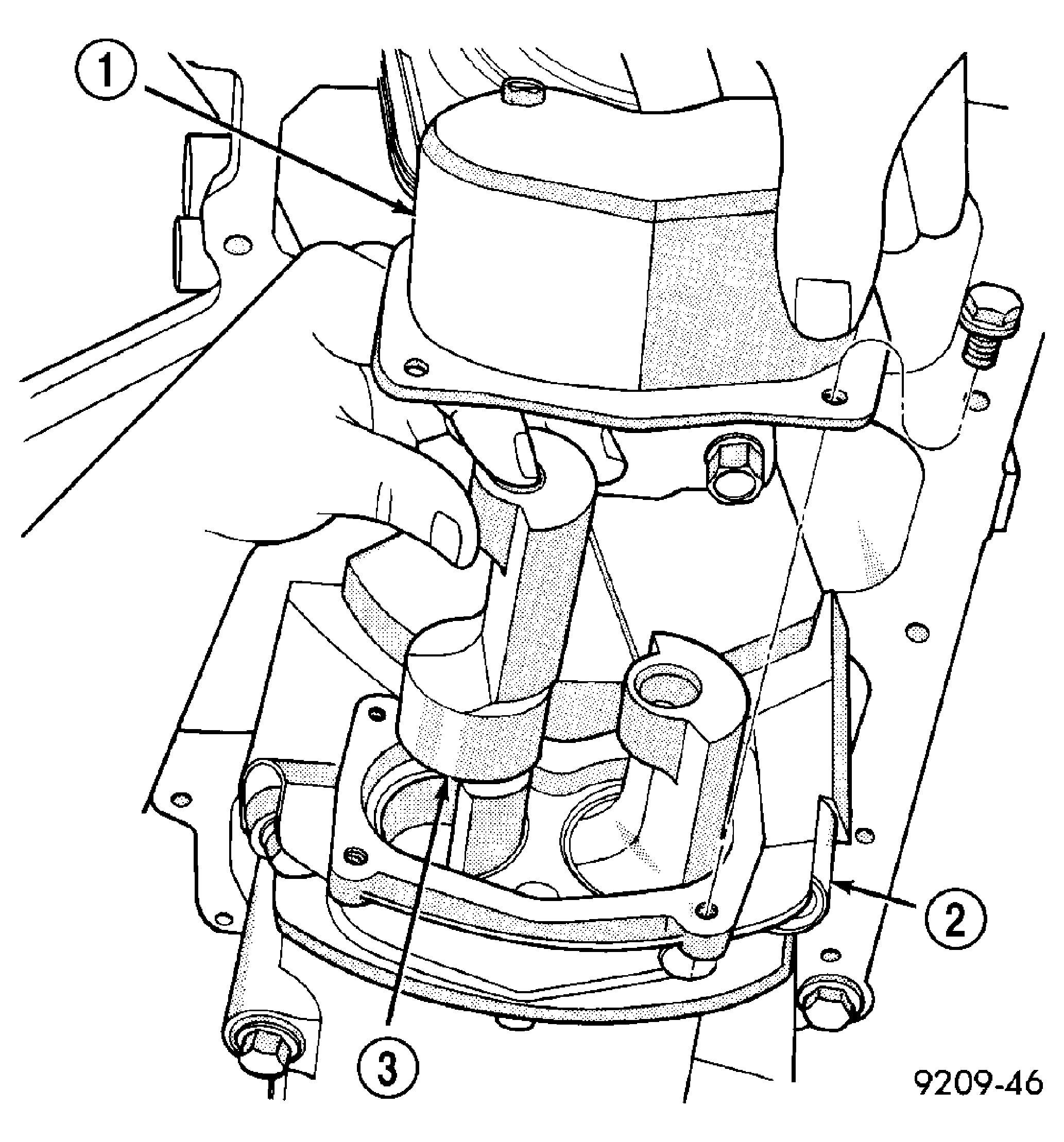

Fig 4: Balance Shaft - Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR COVER

2 - CARRIER

3 - BALANCE SHAFT

Remove rear cover (1) and balance shafts (3). See Fig 4.
Remove four carrier to crankcase attaching bolts to separate carrier from engine bedplate.
