2.4L DOHC Engine: Pan-Oil: Removal

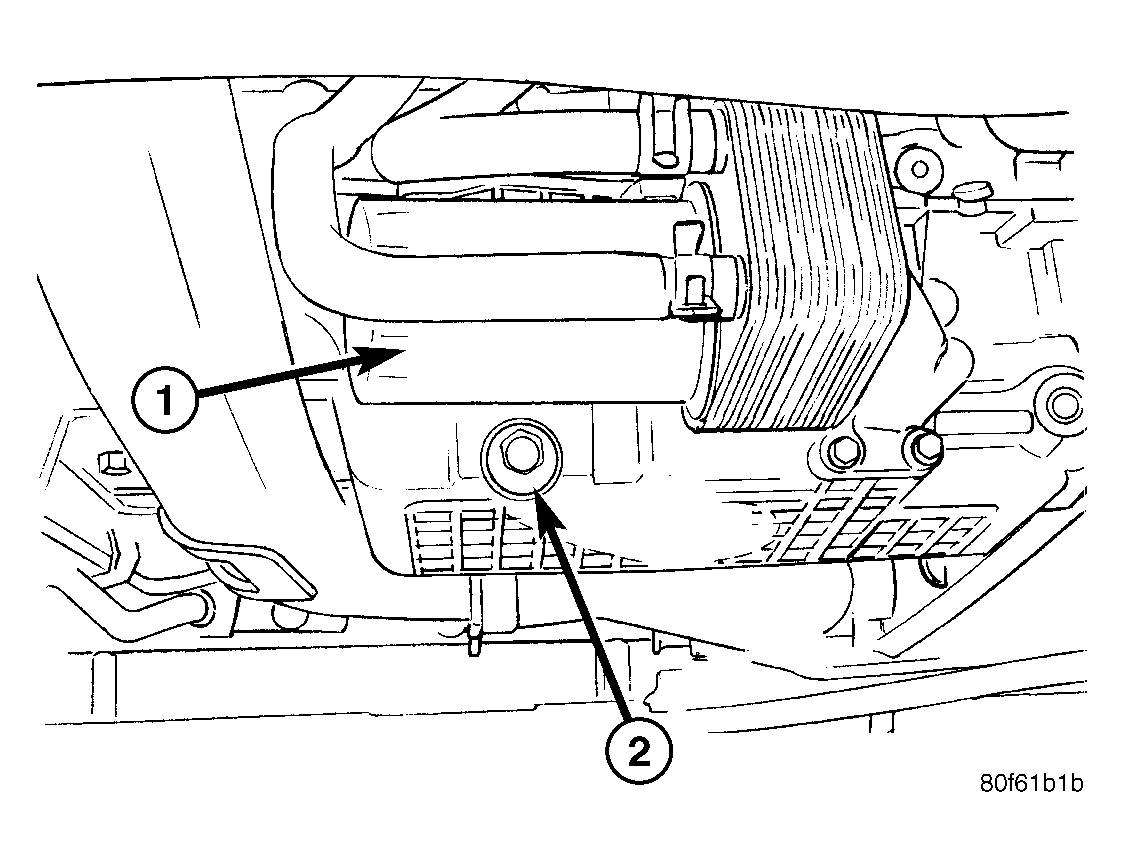

Fig 1: Oil Filter and Drain Plug - 2.4L Turbo
GC0042841Courtesy of DAIMLERCHRYSLER CORP.
1 - OIL FILTER
2 - DRAIN PLUG
  1. Raise vehicle on hoist.
  2. Drain engine oil (2) and remove oil filter (1).

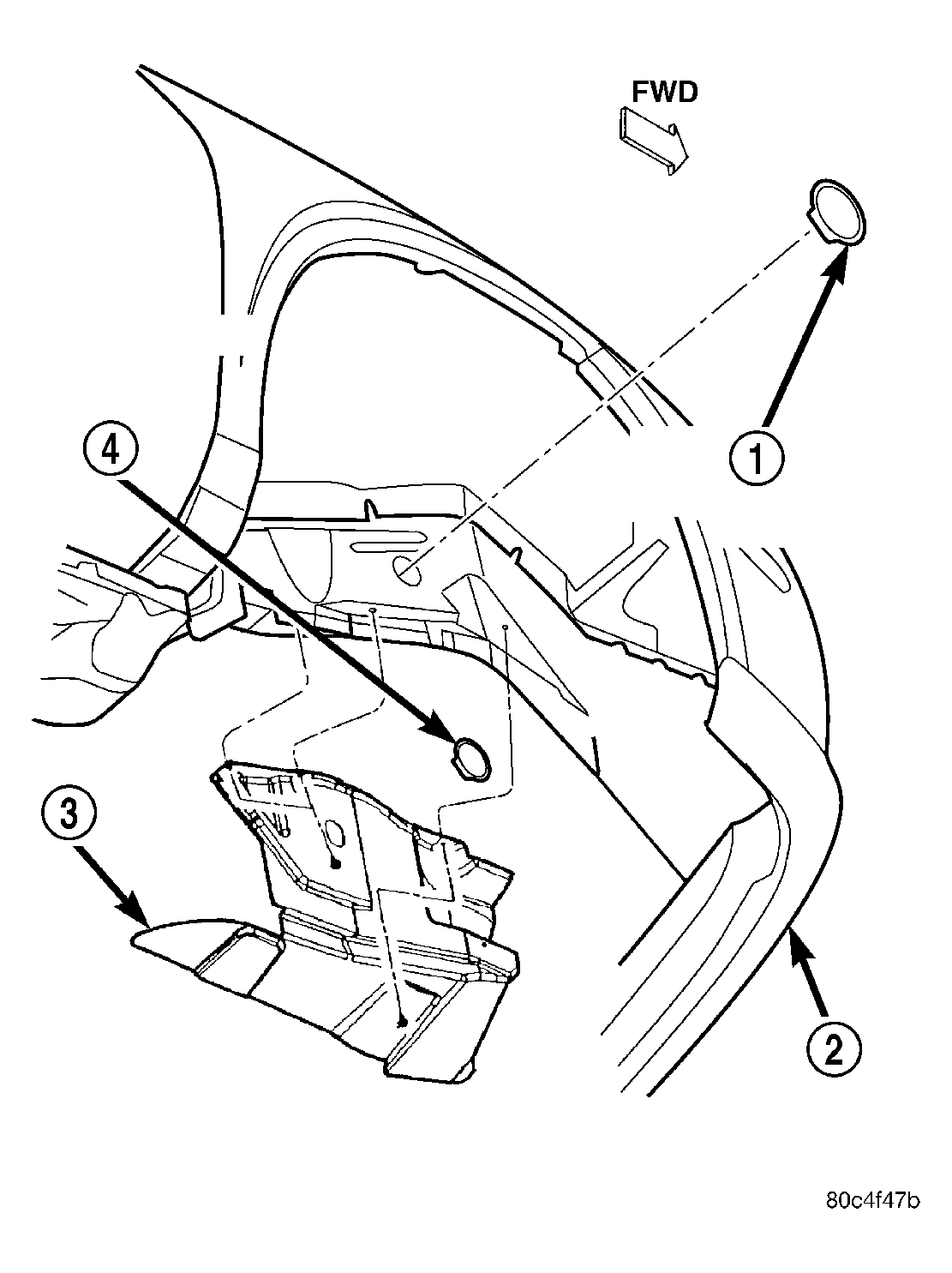

    Fig 2: Splash Shield
    GC0042842Courtesy of DAIMLERCHRYSLER CORP.
    1 - RIGHT MOUNT BOLT ACCESS PLUG
    2 - FASCIA
    3 - SPLASH SHIELD
    4 - CRANKSHAFT BOLT ACCESS PLUG
  3. Remove accessory drive belt splash shield (3).
  4. Turbocharger Equipped Vehicles:   Remove turbocharger to charge air cooler hose assembly (Refer to EXHAUST SYSTEM/TURBOCHARGER SYSTEM/CHARGE AIR COOLER AND HOSES - REMOVAL) .
  5. Turbocharger Equipped Vehicles:   Remove oil cooler connector bolt. DO NOT   disconnect coolant lines from oil cooler. Reposition oil cooler.

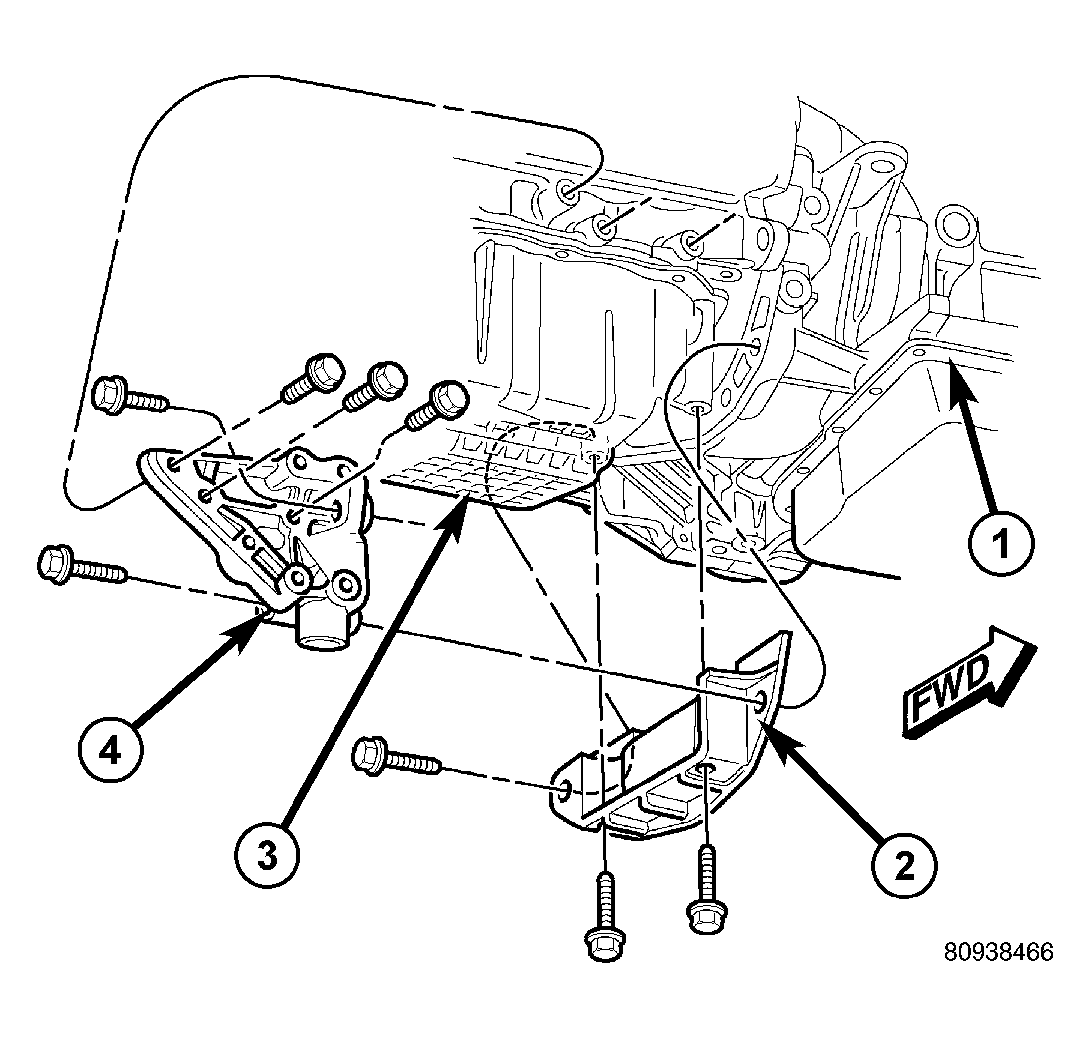

    Fig 3: Structural Collar and Bending Strut - (Automatic Transaxle Equipped)
    GC0042844Courtesy of DAIMLERCHRYSLER CORP.
    1 - TRANSAXLE
    2 - STRUCTURAL COLLAR
    3 - OIL PAN
    4 - BENDING STRUT
  6. Remove structural collar (2) (Refer to ENGINE/ENGINE BLOCK/STRUCTURAL COLLAR - REMOVAL) .

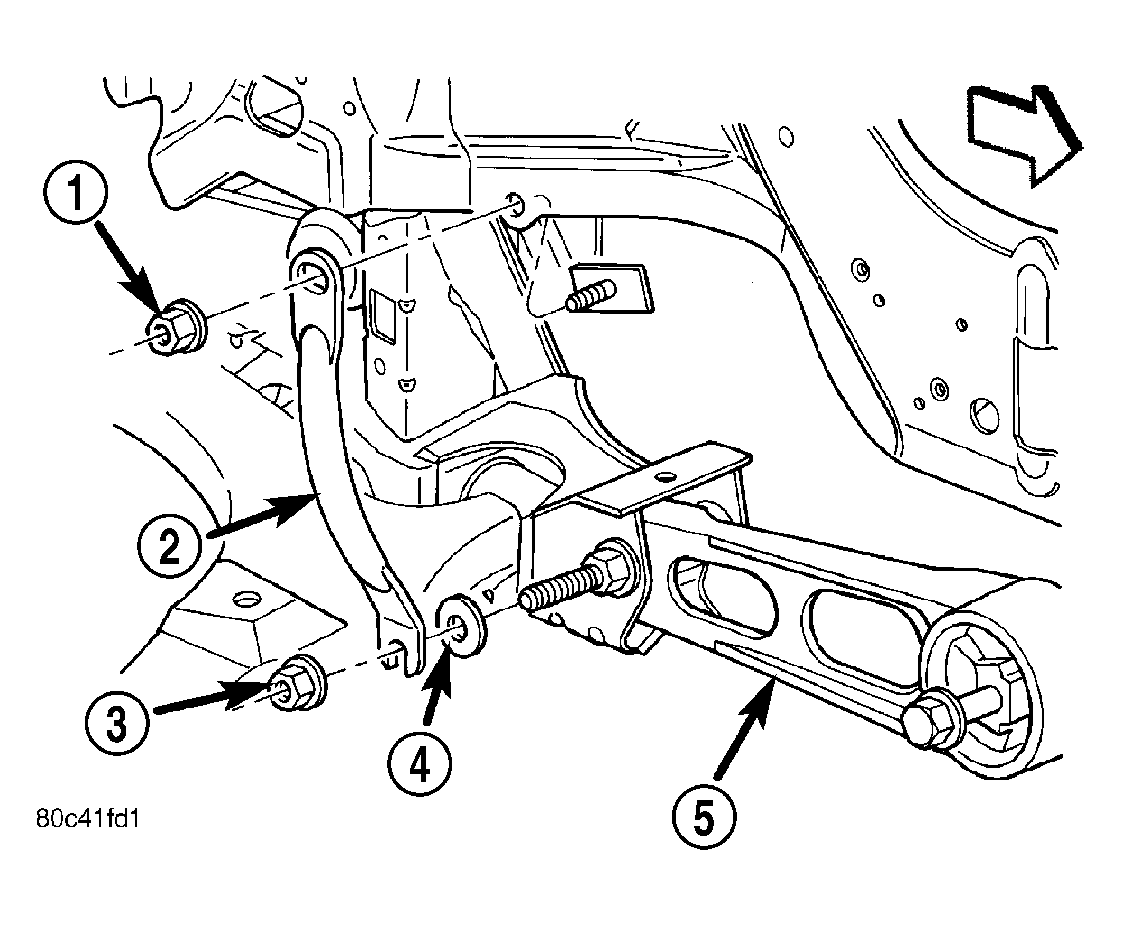

    Fig 4: View Of Pencil Strut Mounting
    GC0042843Courtesy of DAIMLERCHRYSLER CORP.
    1 - NUT
    2 - PENCIL STRUT
    3 - NUT
    4 - FLAT WASHER
    5 - LOWER TORQUE STRUT
  7. Remove lower torque strut (5) (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - REMOVAL)  .

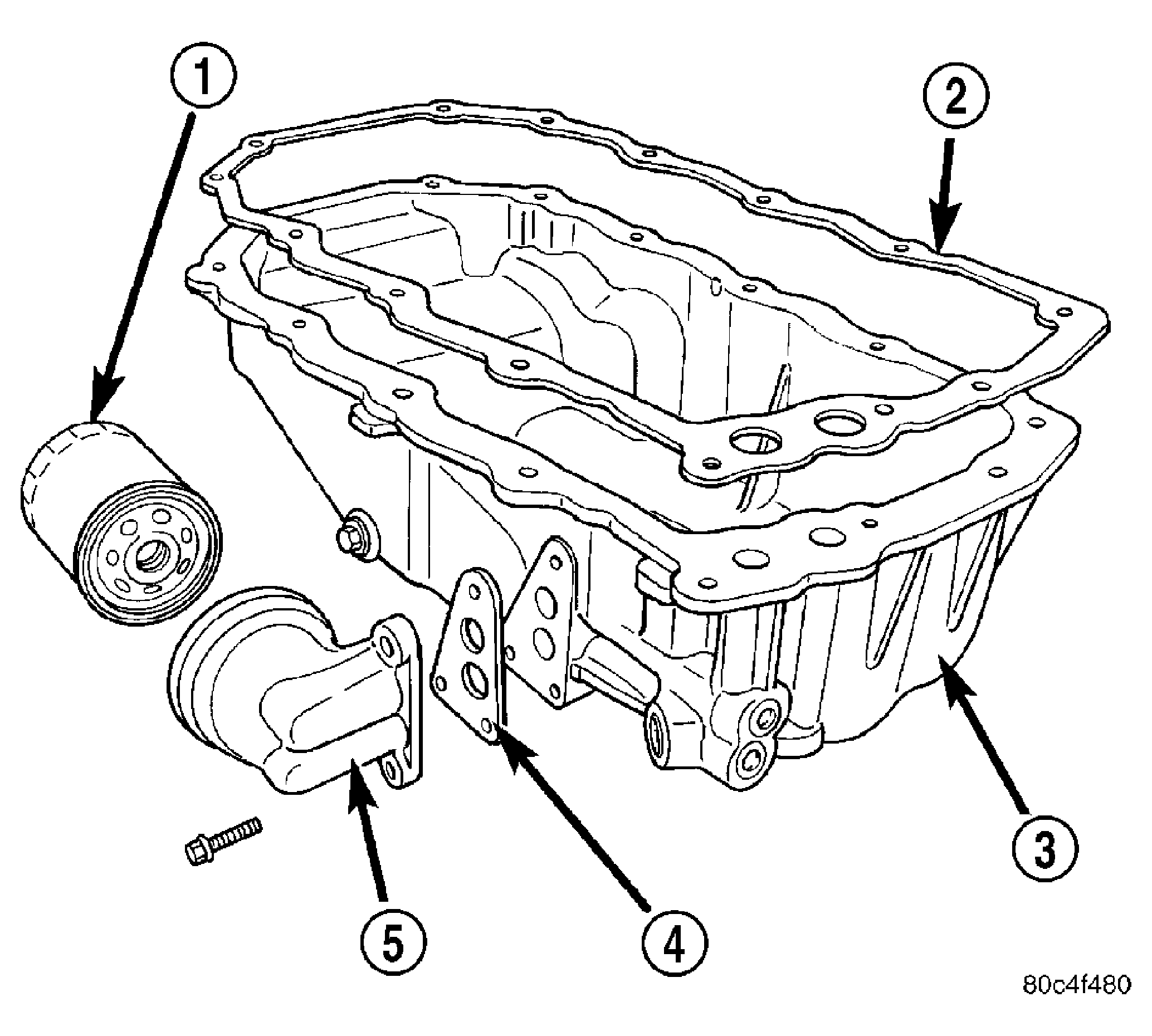

    Fig 5: Oil Pan
    GC0021249Courtesy of DAIMLERCHRYSLER CORP.
    1 - OIL FILTER
    2 - OIL PAN GASKET
    3 - OIL PAN
    4 - ADAPTER GASKET
    5 - OIL FILTER ADAPTER
  8. Remove oil filter adapter (5) and gasket (4). See Fig 5.
  9. Remove oil pan (3) and gasket (2). See Fig 5.
  10. Clean oil pan and all gasket surfaces.
