Seat Armrest: Removal
- Using a small flat blade, pry cap from side of armrest. See Fig 1.
- Remove bolt attaching armrest to seat back.
- Remove armrest from seat back.

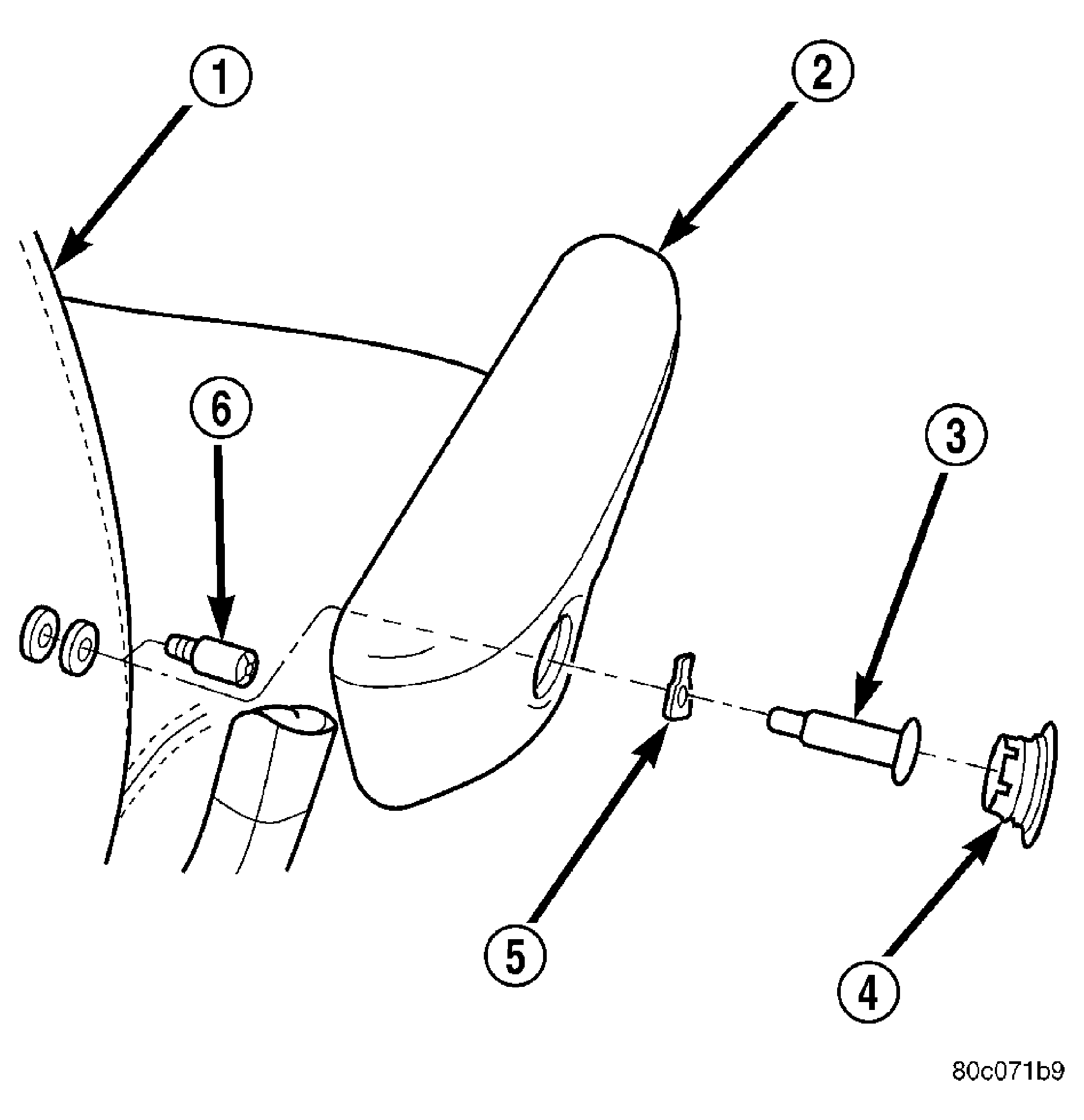

| 1 - SEAT BACK |
| 2 - ARMREST |
| 3 - SHOULDER BOLT |
| 4 - CAP |
| 5 - WASHER |
| 6 - STOP SCREW |
| 1 - SEAT BACK |
| 2 - ARMREST |
| 3 - SHOULDER BOLT |
| 4 - CAP |
| 5 - WASHER |
| 6 - STOP SCREW |
