C-Pillar Upper Trim Panel: Removal
- Open rear door and liftgate.
- Fold door first row and second row seats to access upper trim panel
- Remove rear header trim. (Refer to BODY/INTERIOR/REAR HEADER TRIM - REMOVAL) .
- Remove D-pillar trim panel. (Refer to BODY/INTERIOR/D-PILLAR TRIM - REMOVAL) .
- Remove lower D-pillar seat belt anchor. (Refer to ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - REMOVAL) .

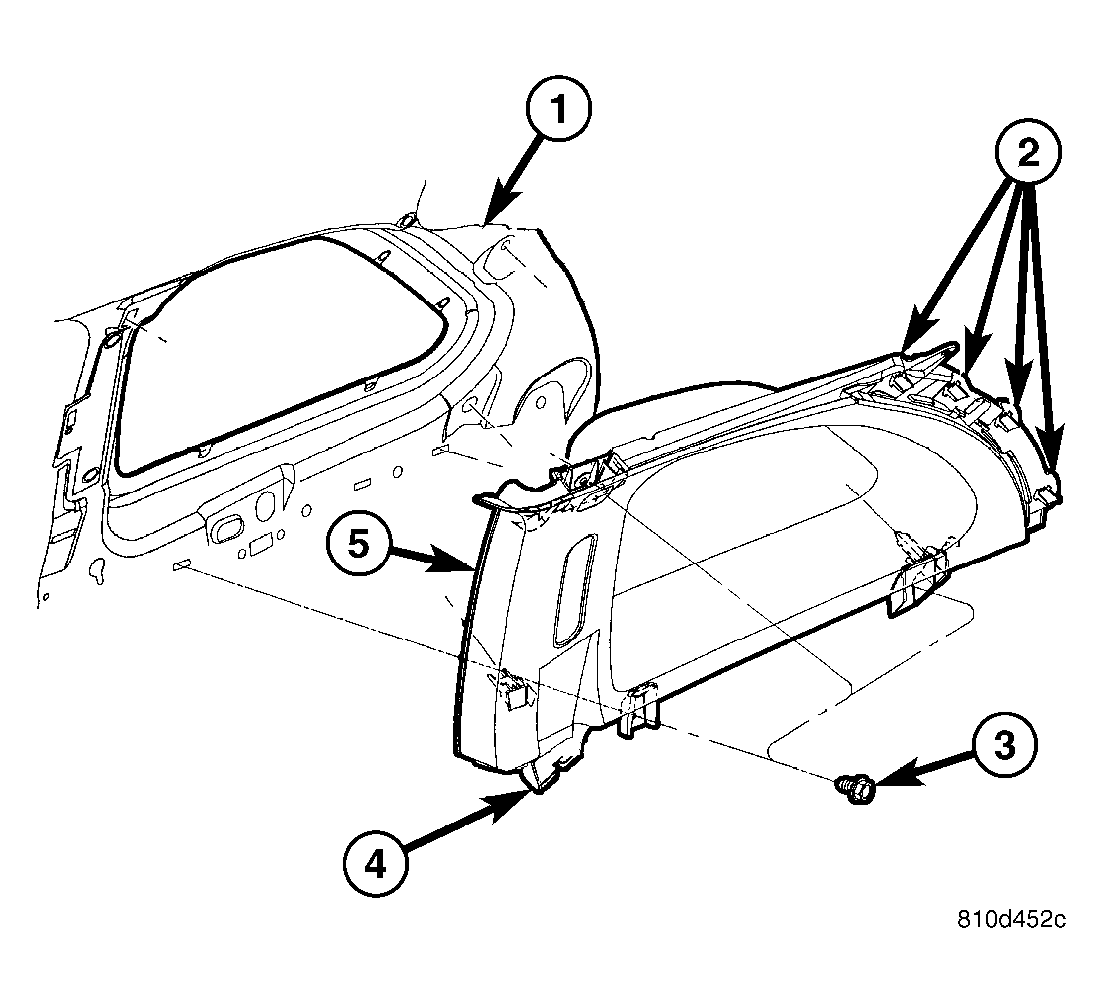

- Remove quarter trim bolster to access screws attaching C-pillar upper trim panel. See Fig 1.
- Using a trim stick C-4755 or equivalent, disengage the locking tabs and remove C-pillar upper trim panel
- Remove trim panel from vehicle.
| 1 - BODY SIDE |
| 2 - LOCATING PINS |
| 3 - ATTACHING SCREW |
| 4 - ROUTE SEAT BELT THROUGH OPENING |
| 5 - C-PILLAR UPPER TRIM PANEL |
