Rear Header Trim: Removal

  1. Disengage locking tabs attaching rear header trim panel. See Fig 1.
  2. Remove rear header trim from vehicle.

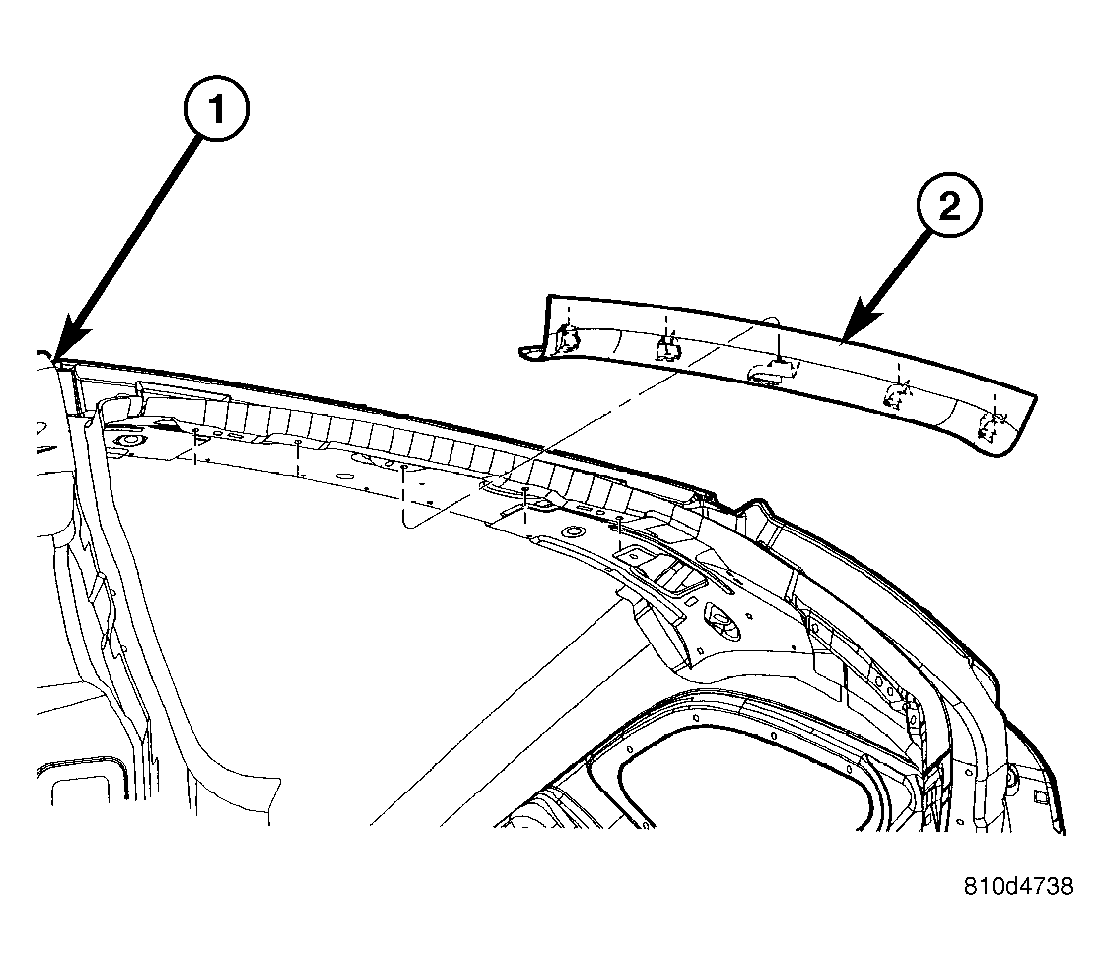

Fig 1: REAR HEADER TRIM PANEL
GC0001100Courtesy of DAIMLERCHRYSLER CORP.
1 - BODY ASSEMBLY
2 - REAR HEADER TRIM PANEL
