Antenna Cable: Removal
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect and isolate the battery negative cable.
- Remove right side A-pillar trim (Refer to BODY/INTERIOR/A-PILLAR TRIM - REMOVAL)
.
- Remove headliner to access antenna cable (Refer to BODY/INTERIOR/HEADLINER - REMOVAL)
.

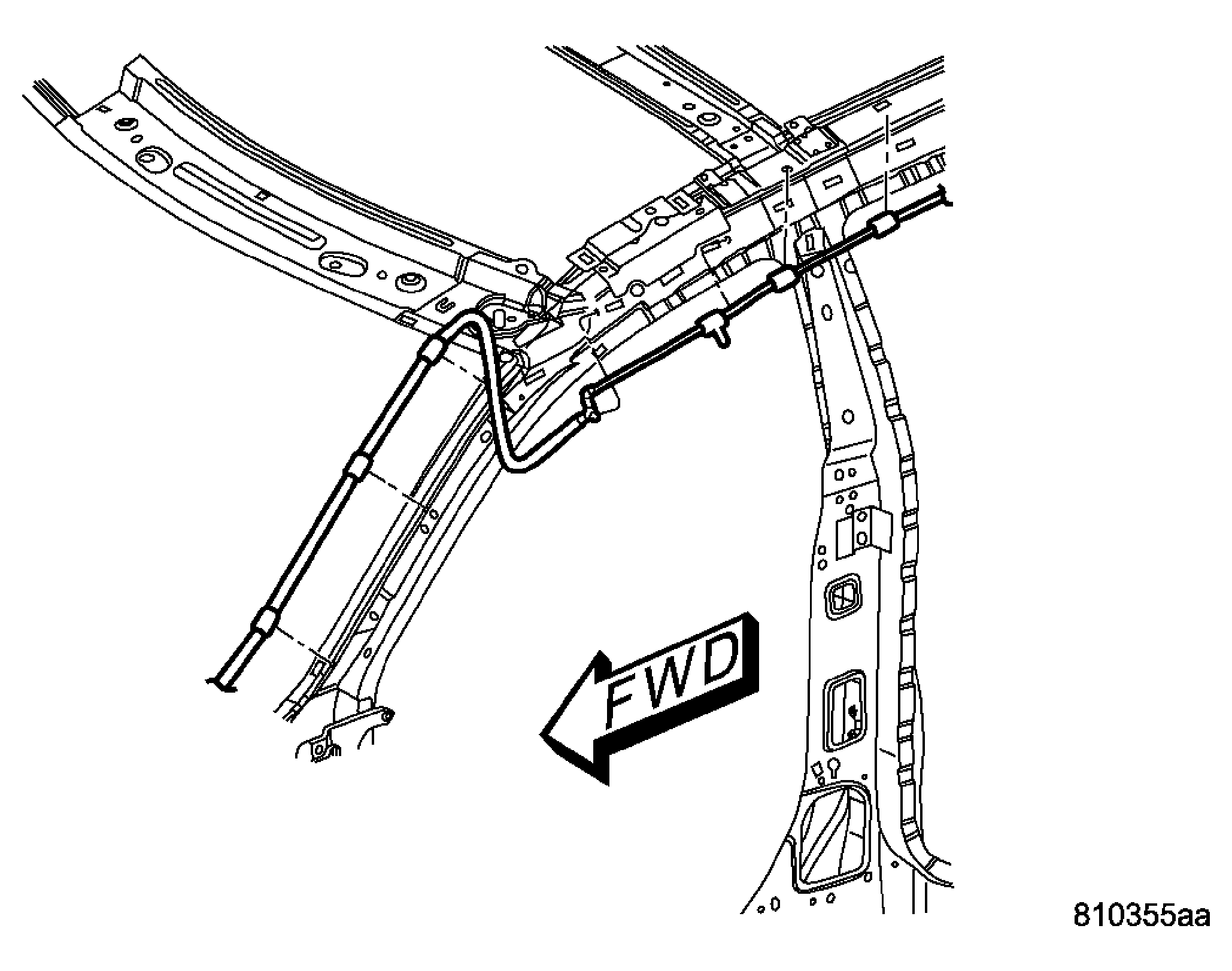

- Disconnect electrical harness connector and antenna from antenna module. See Fig 1.
- Remove antenna cable from roof panel.
Courtesy of DAIMLERCHRYSLER CORP.

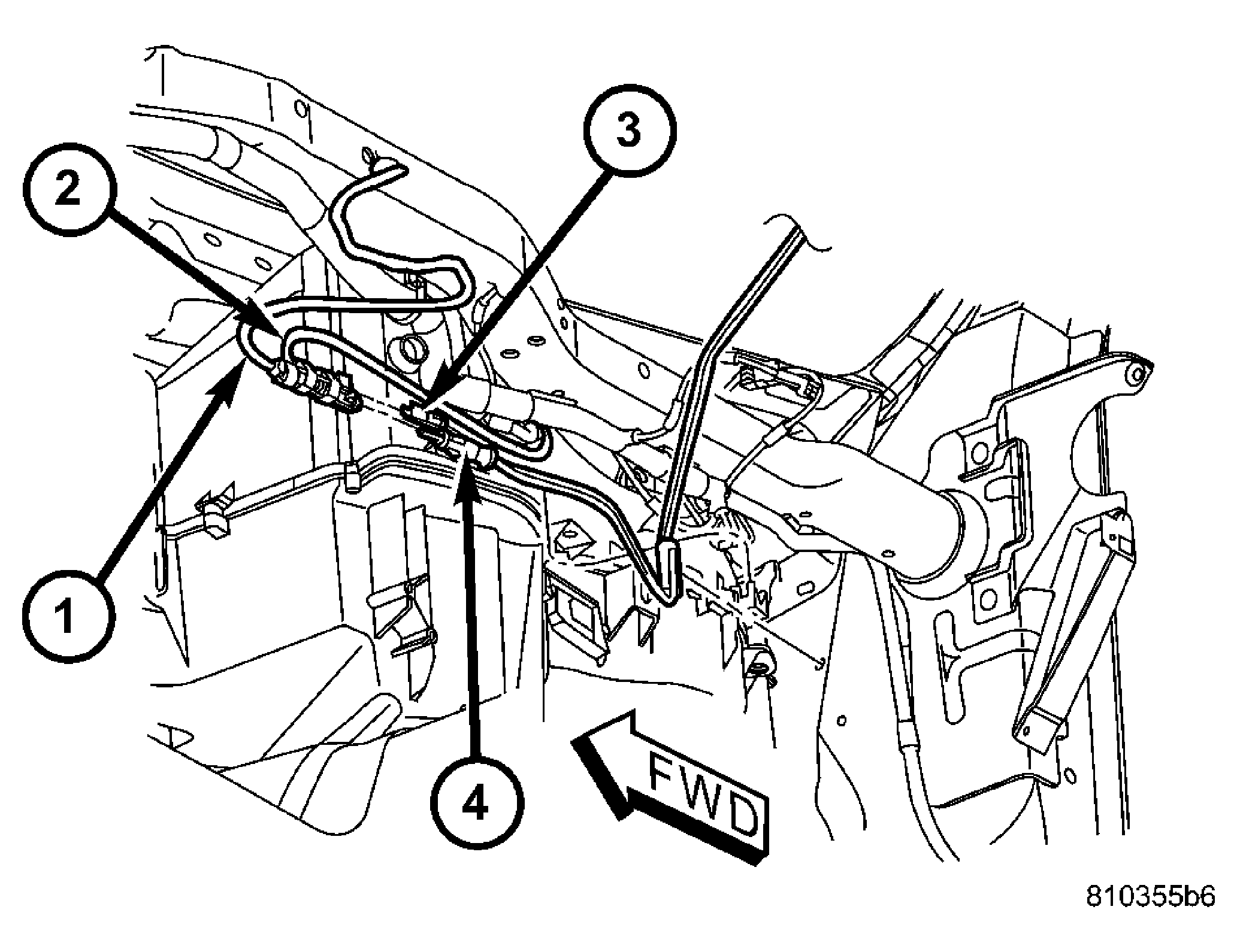

- Under the right side of the instrument panel, disconnect the electrical harness connector and antenna cable from the instrument panel antenna cable. See Fig 2.
- Remove antenna cable from vehicle.
