A-Pillar Trim: Removal

  1. Disengage hidden clips attaching A-pillar trim panel to A-pillar. See Fig 1.
  2. Remove A-pillar trim from vehicle.

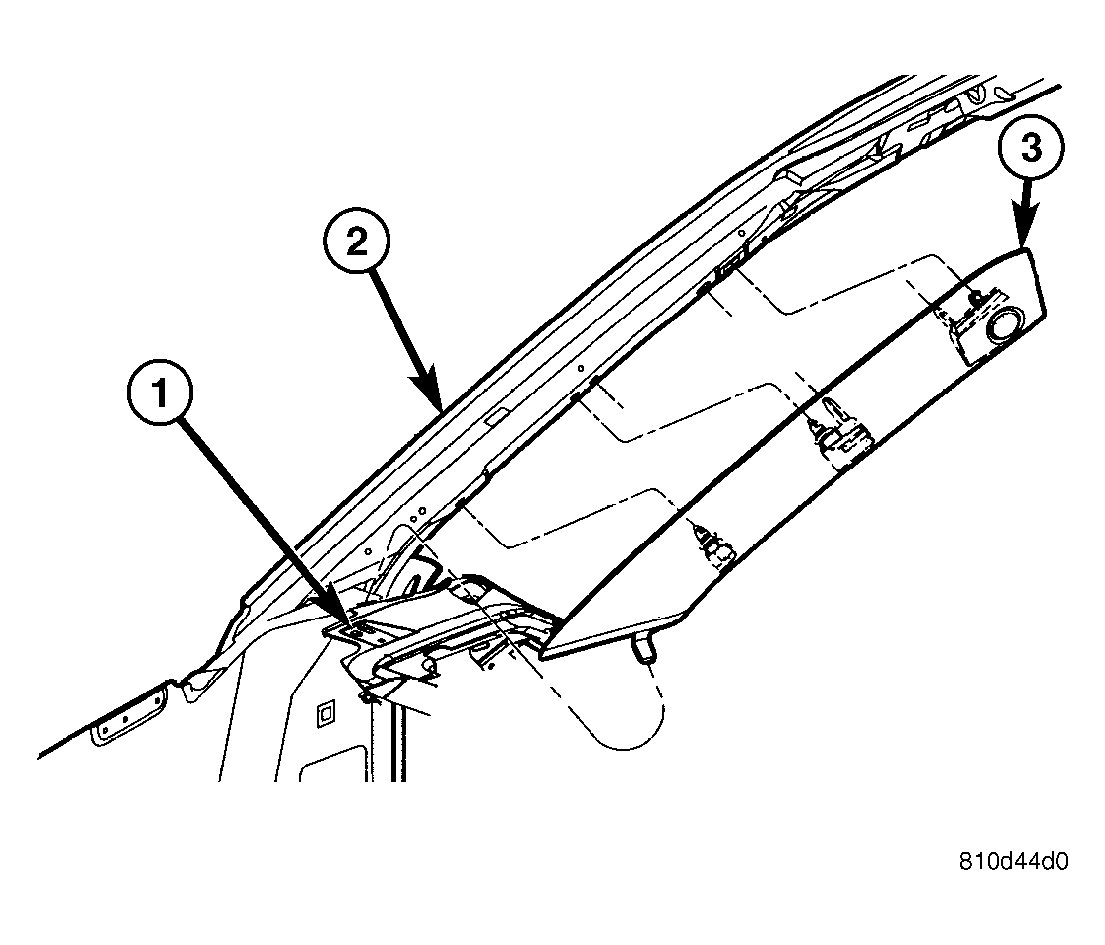

Fig 1: A-PILLAR TRIM PANEL
GC0001074Courtesy of DAIMLERCHRYSLER CORP.
1 - INSTRUMENT PANEL UPPER RETAINER PANEL
2 - BODY SIDE ASSEMBLY
3 - A-PILLAR TRIM PANEL
