Third Row Seat Cushion / Cover: Removal

  1. Open liftgate.
  2. Remove rear floor stowage bin. (Refer to BODY/INTERIOR/REAR FLOOR STOWAGE BIN - REMOVAL) .
  3. Remove third row seat. (Refer to BODY/SEATS/THIRD ROW SEAT - REMOVAL) .
  4. Remove two bolts (on outboard side of seat) attaching drive link assembly. See Fig 1.
    Fig 1: DRIVE LINK AND SHIELD
    GC0001192Courtesy of DAIMLERCHRYSLER CORP.
    1 - DRIVE LINK AND SHIELD
  5. Remove drive link assembly.
  6. Remove two bolts attaching front cushion pan to link and riser assemblies. See Fig 2.
    Fig 2: THIRD ROW SEAT PAN
    GC0001206Courtesy of DAIMLERCHRYSLER CORP.
    1 - J-STRAP
    2 - SEAT PAN
    3 - FRONT LINK ASSEMBLY
  7. Remove cushion assembly by sliding the front links off of the riser pins and twisting the cushion assembly to disengage the rear sliders from the riser tracks. See Fig 3.
    Fig 3: THIRD ROW SEAT SLIDER
    GC0001202Courtesy of DAIMLERCHRYSLER CORP.
    1 - SLIDER
  8. Disengage J-straps.
    Fig 4: THIRD ROW SEAT CUSHION COVER AND PAN
    GC0001204Courtesy of DAIMLERCHRYSLER CORP.
    1 - J-STRAPS
    2 - SEAT CUSHION COVER
  9. Remove seat cushion cover and foam pad from the seat pan. See Fig 5 and Fig 6.
  10. Remove seat cushion cover from foam pad.
Fig 5: THIRD ROW SEAT CUSHION
GC0001201Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT CUSHION PAN
2 - SEAT CUSHION FOAM AND COVER
3 - J-STRAPS
Fig 6: THIRD ROW SEAT CUSHION FOAM PAD
GC0001203Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT CUSHION COVER
2 - SEAT CUSHION FOAM PAD

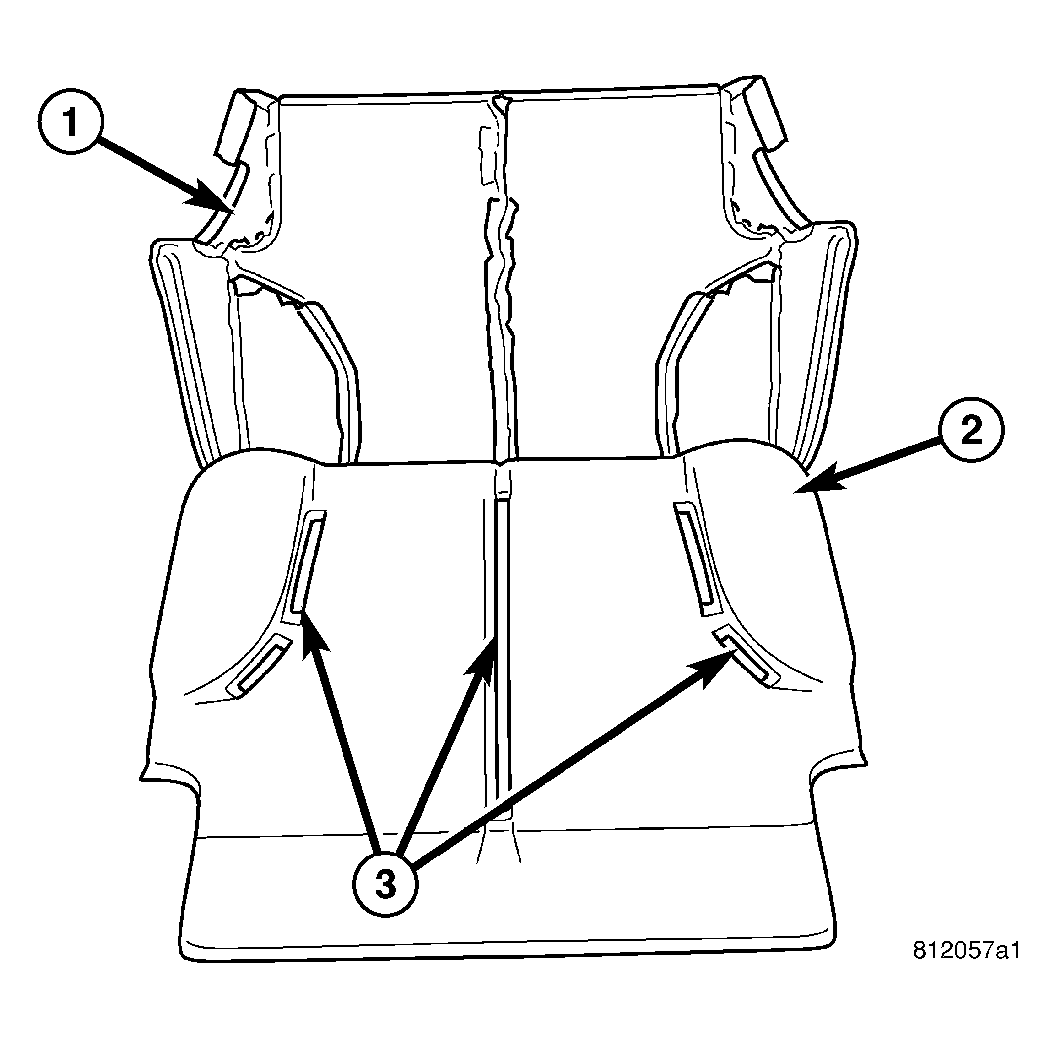

Fig 7: THIRD ROW SEAT CUSHION COVER
GC0001205Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT CUSHION COVER
2 - SEAT CUSHION FOAM PAD
3 - HOOK AND LOOP FASTENER
