Third Row Outboard Latch Assembly: Removal

  1. Open liftgate.
  2. Remove rear floor stowage bin. (Refer to BODY/INTERIOR/REAR FLOOR STOWAGE BIN - REMOVAL) .
  3. Remove third row seat. (Refer to BODY/SEATS/THIRD ROW SEAT - REMOVAL) .

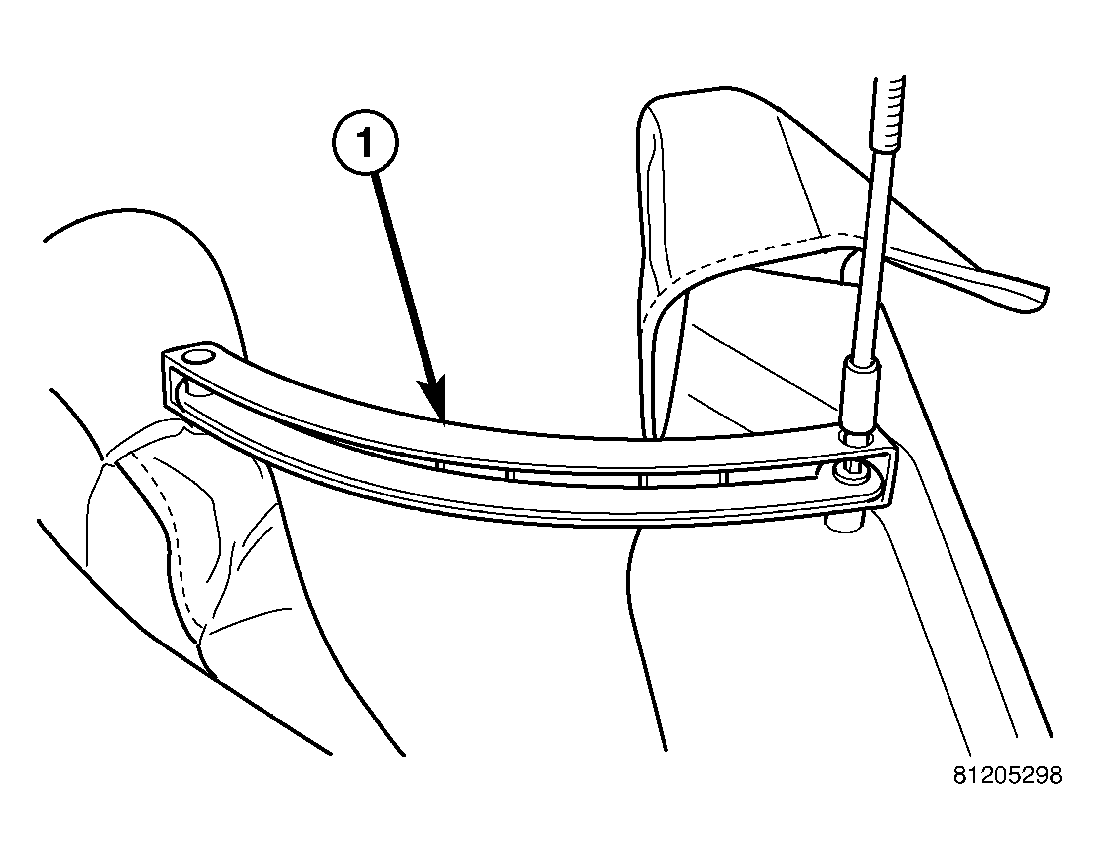

  4. Remove two bolts (on outboard side of seat) attaching drive link assembly. See Fig 1.
    Fig 1: DRIVE LINK AND SHIELD
    GC0001192Courtesy of DAIMLERCHRYSLER CORP.
    1 - DRIVE LINK AND SHIELD
  5. Remove drive link assembly.

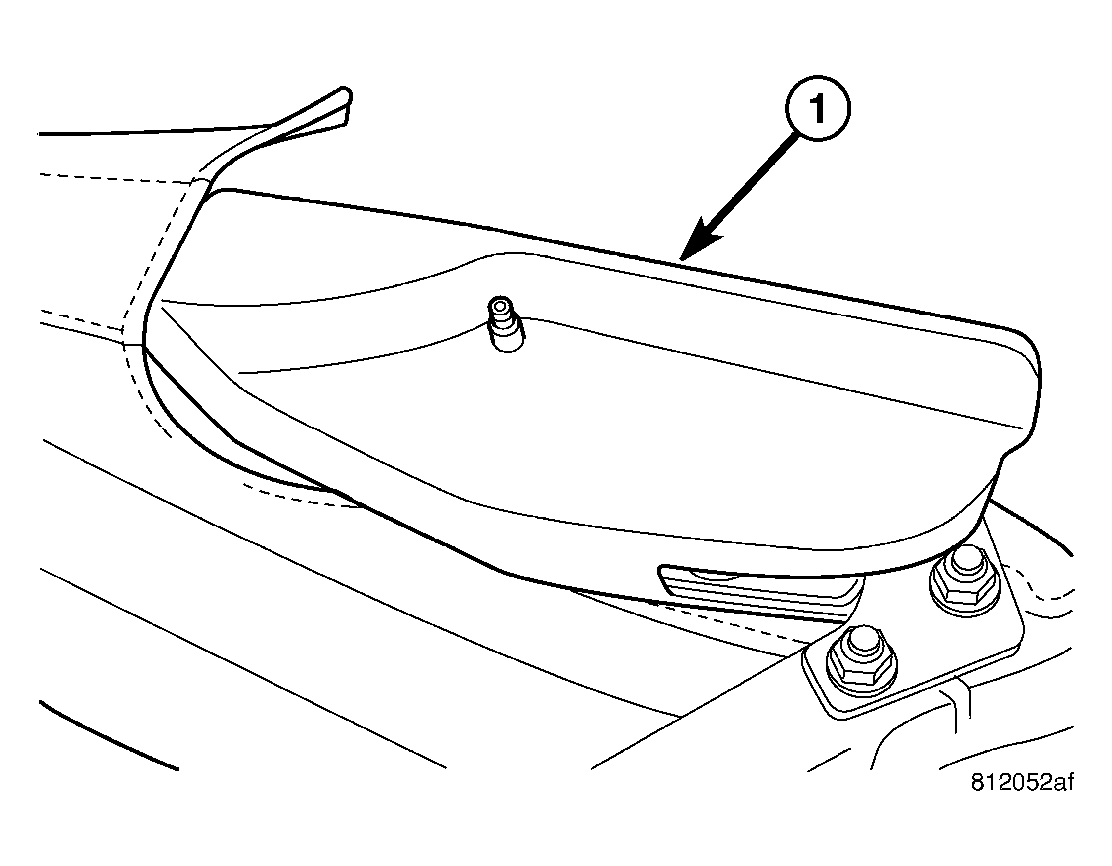

  6. Remove outboard seat back shield. See Fig 2.
    Fig 2: OUTBOARD SEAT BACK SHIELD
    GC0001198Courtesy of DAIMLERCHRYSLER CORP.
    1 - SHIELD
  7. Disconnect fold flat cable from outboard fold flat mechanism. See Fig 3.
    Fig 3: FOLD FLAT CABLE ATTACHING POINTS
    GC0001190Courtesy of DAIMLERCHRYSLER CORP.
    1 - FOLD FLAT MECHANISM
    2 - FOLD FLAT CABLE ATTACHING POINTS

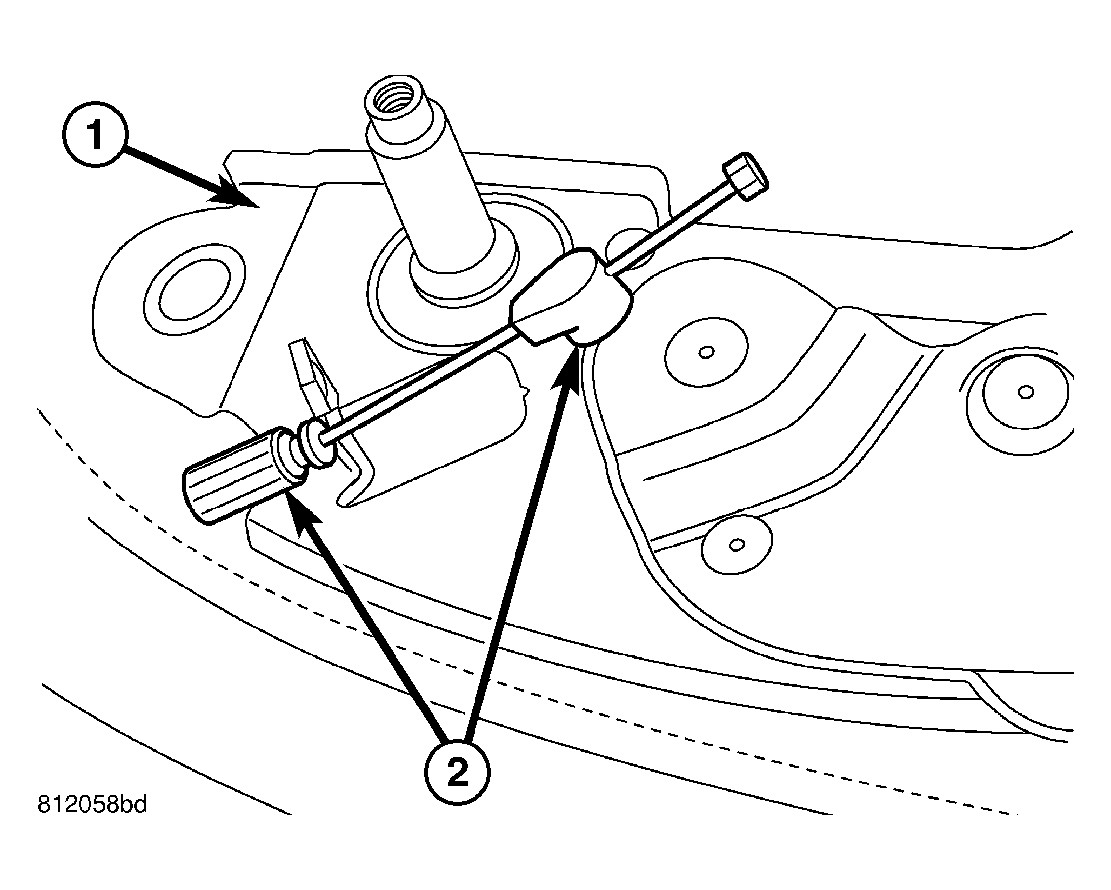

  8. Remove two bolts attaching outboard fold flat mechanism to outer seat back. Remove two nuts attaching outboard fold flat mechanism to outboard riser. See Fig 4.
    Fig 4: FOLD FLAT MECHANISM
    GC0001185Courtesy of DAIMLERCHRYSLER CORP.
    1 - FOLD FLAT MECHANISM
  9. Remove outboard fold flat mechanism.
