Third Row Inboard Pivot Shield: Removal

  1. Open liftgate.
  2. Remove rear floor stowage bin. (Refer to BODY/INTERIOR/REAR FLOOR STOWAGE BIN - REMOVAL) .
  3. Remove third row seat. (Refer to BODY/SEATS/THIRD ROW SEAT - REMOVAL) .
  4. Remove inboard pivot drive shield screw. See Fig 1.

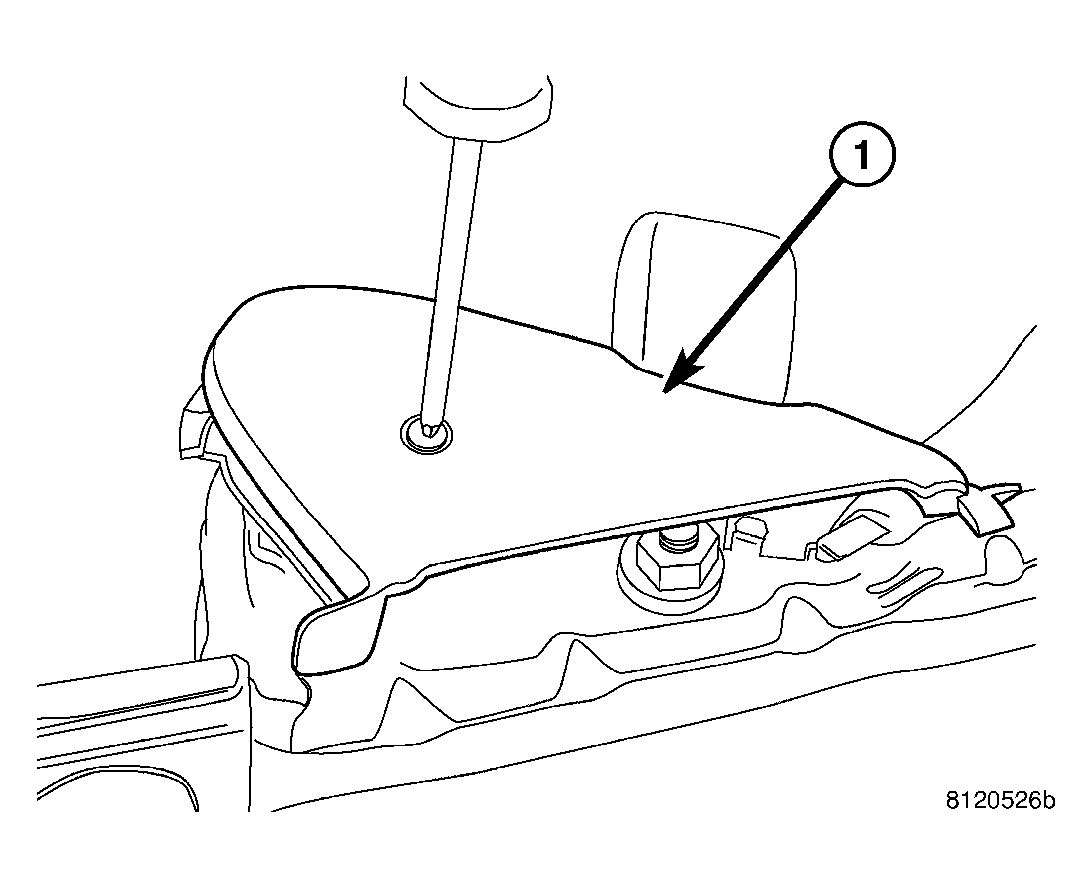

    Fig 1: INBOARD PIVOT DRIVE SHIELD
    GC0001196Courtesy of DAIMLERCHRYSLER CORP.
    1 - SHIELD
  5. Remove inboard pivot drive shield.
