Third Row Cushion Slider: Removal

  1. Open liftgate.
  2. Remove rear floor stowage bin. (Refer to BODY/INTERIOR/REAR FLOOR STOWAGE BIN - REMOVAL) .
  3. Remove third row seat. (Refer to BODY/SEATS/THIRD ROW SEAT - REMOVAL) .
  4. Remove two bolts (on outboard side of seat) attaching drive link assembly. See Fig 1.
    Fig 1: DRIVE LINK AND SHIELD
    GC0001192Courtesy of DAIMLERCHRYSLER CORP.
    1 - DRIVE LINK AND SHIELD
  5. Remove drive link assembly.
  6. Remove two bolts attaching front cushion pan to link and riser assemblies. See Fig 2.

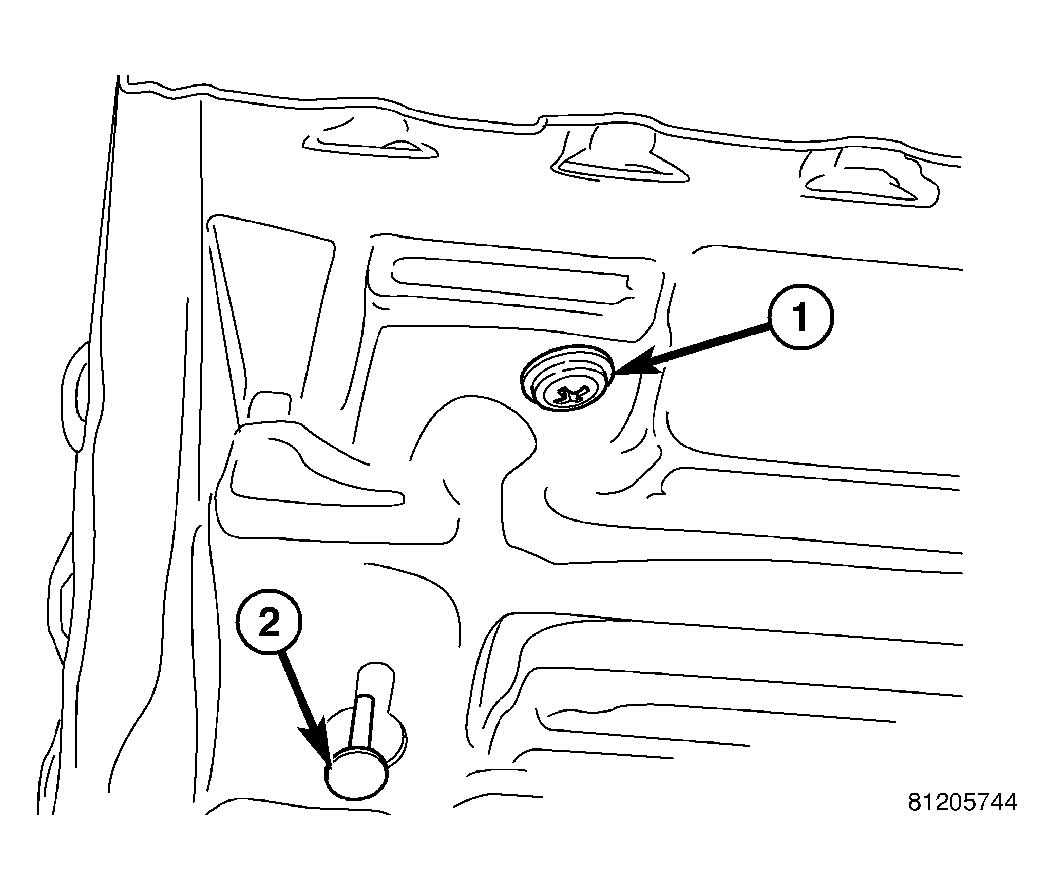

    Fig 2: THIRD ROW SEAT PAN
    GC0001206Courtesy of DAIMLERCHRYSLER CORP.
    1 - J-STRAP
    2 - SEAT PAN
    3 - FRONT LINK ASSEMBLY
  7. Remove cushion assembly by sliding the front links off of the riser pins and twisting the cushion assembly to disengage the rear sliders from the riser tracks. See Fig 3.
    Fig 3: THIRD ROW SEAT SLIDER
    GC0001202Courtesy of DAIMLERCHRYSLER CORP.
    1 - SLIDER
  8. Disengage J-straps. See Fig 4.

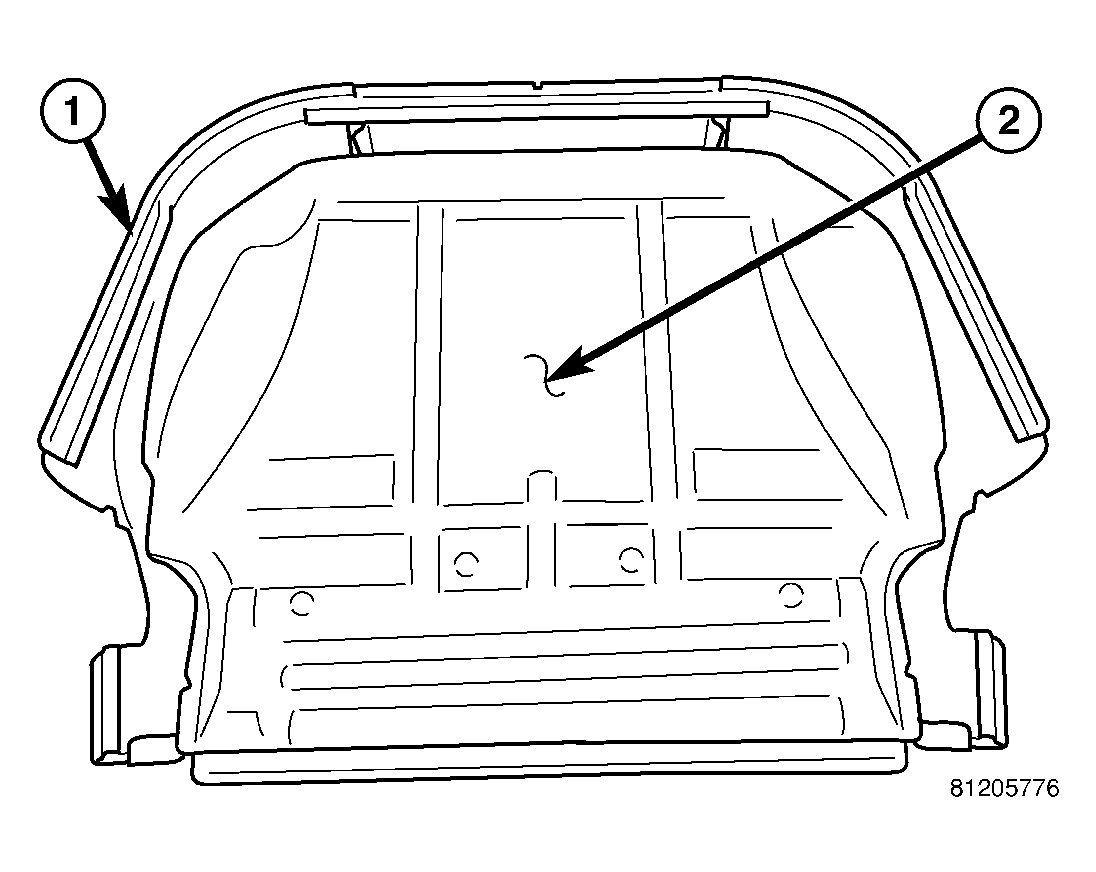

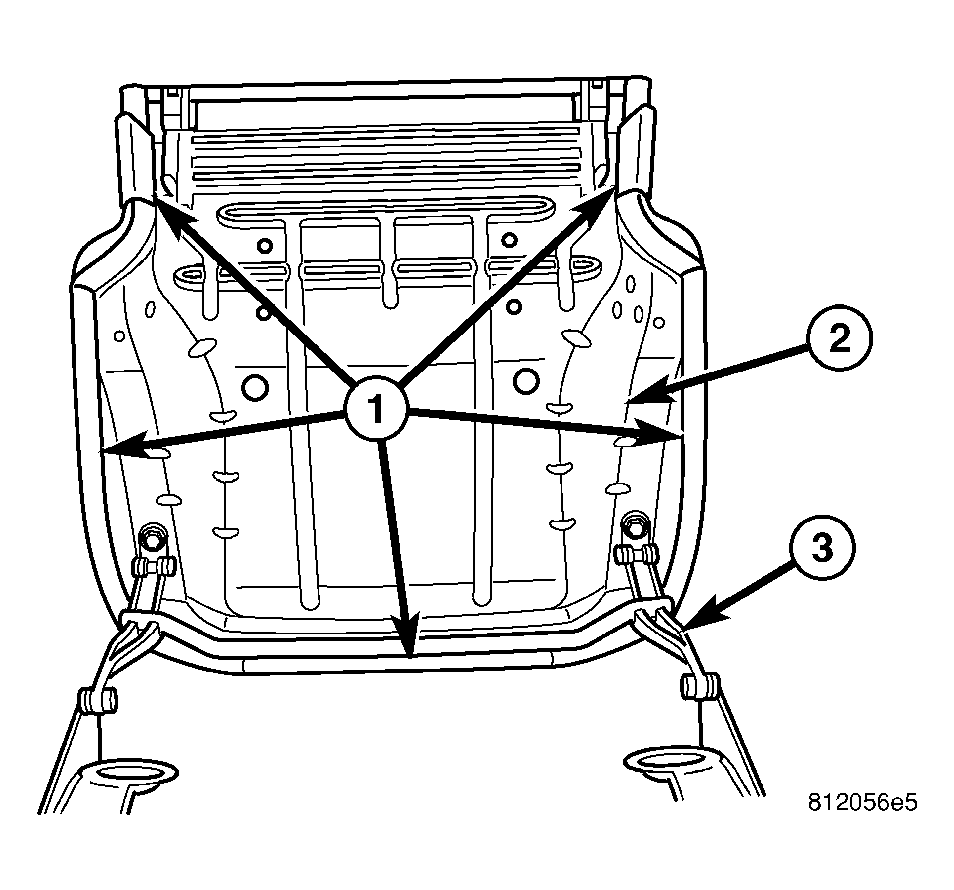

    Fig 4: THIRD ROW SEAT CUSHION COVER AND PAN
    GC0001204Courtesy of DAIMLERCHRYSLER CORP.
    1 - J-STRAPS
    2 - SEAT CUSHION COVER
  9. Remove seat cushion cover and foam pad from the seat pan. See Fig 5 and Fig 6.

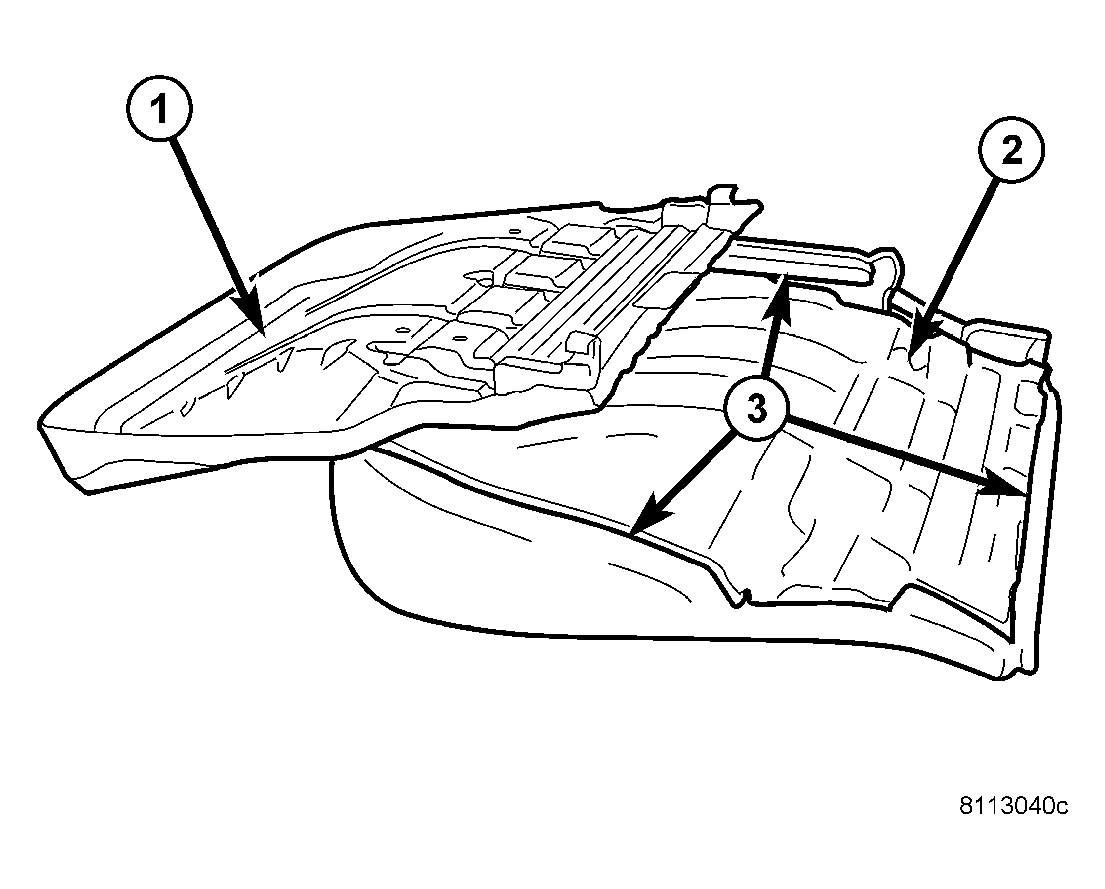

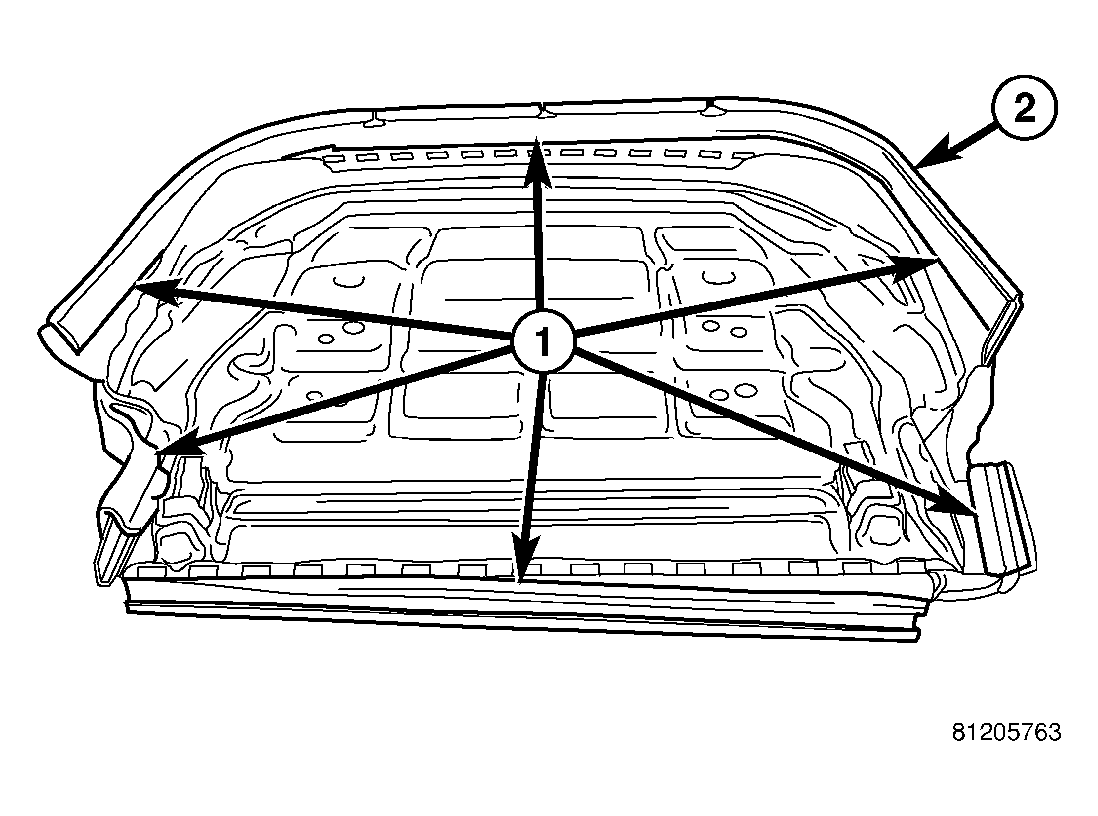

    Fig 5: THIRD ROW SEAT CUSHION
    GC0001201Courtesy of DAIMLERCHRYSLER CORP.
    1 - SEAT CUSHION PAN
    2 - SEAT CUSHION FOAM AND COVER
    3 - J-STRAPS
    Fig 6: THIRD ROW SEAT CUSHION FOAM PAD
    GC0001203Courtesy of DAIMLERCHRYSLER CORP.
    1 - SEAT CUSHION COVER
    2 - SEAT CUSHION FOAM PAD
  10. Remove one screw (at the rear of the cushion pan) attaching the cushion slider. See Fig 7.

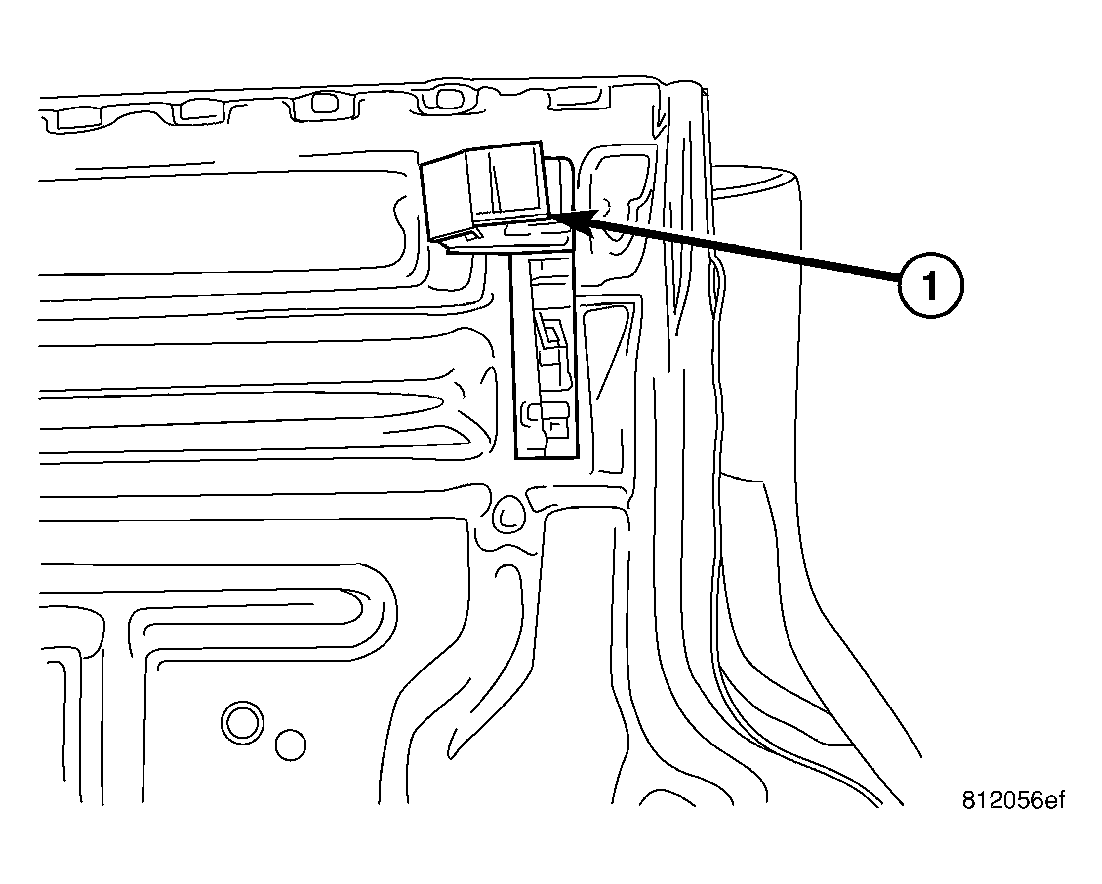

    Fig 7: THIRD ROW SEAT SLIDER ATTACHING SCREW
    GC0001187Courtesy of DAIMLERCHRYSLER CORP.
    1 - ATTACHING SCREW
    2 - SLIDER GUIDE PIN
  11. Remove cushion slider.
