Second Row Seat Riser: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove headrest. (Refer to BODY/SEATS/HEADREST - REMOVAL) .
  3. Remove second row seat. (Refer to BODY/SEATS/SECOND ROW SEAT - REMOVAL) .
  4. Disconnect heat element wire harness.
  5. Turn seat over. See Fig 1.
  6. Remove four nuts attaching seat base to seat assembly.
  7. Remove seat base.

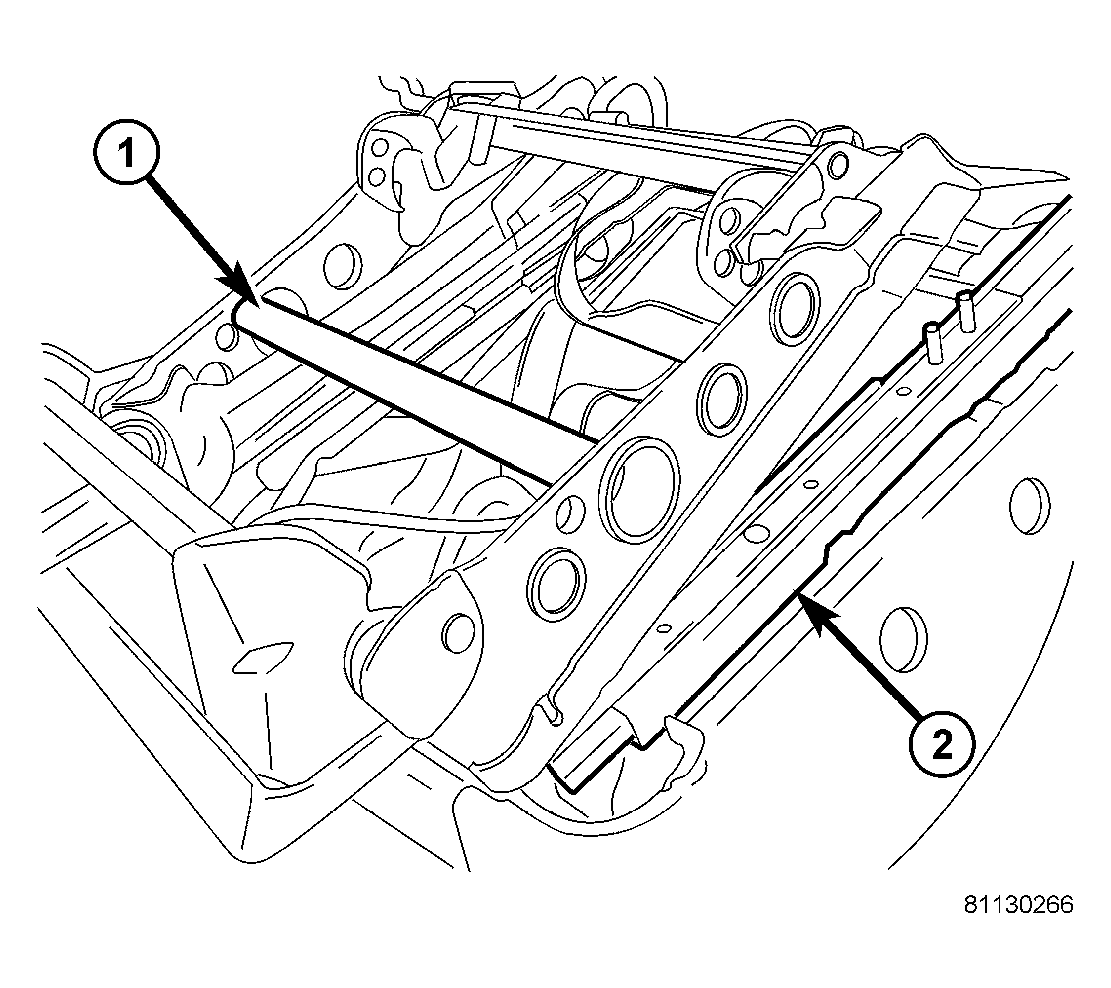

Fig 1: SEAT RAISER
GC0001179Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT BASE
2 - SECOND ROW SEAT ASSEMBLY
