Frame Closeout Molding: Removal
- Open door.
- Lower door window glass.
- Remove rear door trim panel. (Refer to BODY/DOORS - REAR/DOOR TRIM PANEL - REMOVAL) .
- Remove door inner belt molding weatherstrip. (Refer to BODY/WEATHERSTRIP/SEALS/REAR DOOR INNER BELT MOLDING - REMOVAL) .
- Remove door fixed glass run channel. (Refer to BODY/DOORS - REAR/GLASS RUN CHANNEL - REMOVAL) .
- Using a trim stick C-4755 or equivalent and hand pull down on front door frame closeout molding to disengage from window frame channel. See Fig 1.
- Remove closeout molding from vehicle.

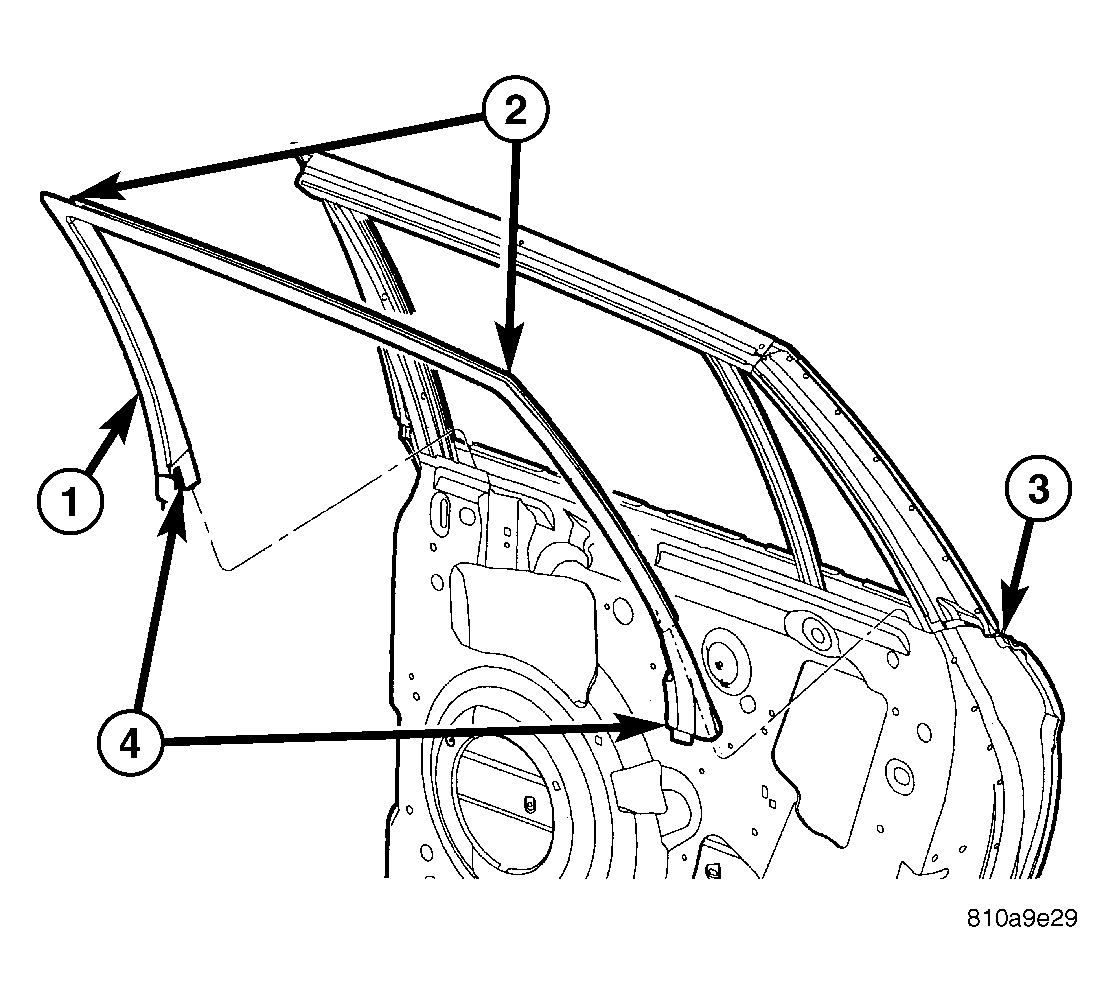

| 1 - FRAME CLOSE OUT MOLDING |
| 2 - OUT BOARD LIP OF MOLDING |
| 3 - DOOR ASSEMBLY |
| 4 - SLOTTED END AT BELT MOLDING |
