Rear Door Inner Belt Molding Weatherstrip: Removal

1. Remove the door trim panel. (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .
2. Rotate the inner belt molding outboard while pulling up to disengage the retention tabs. See Fig 1.
3. Remove inner belt molding from door.

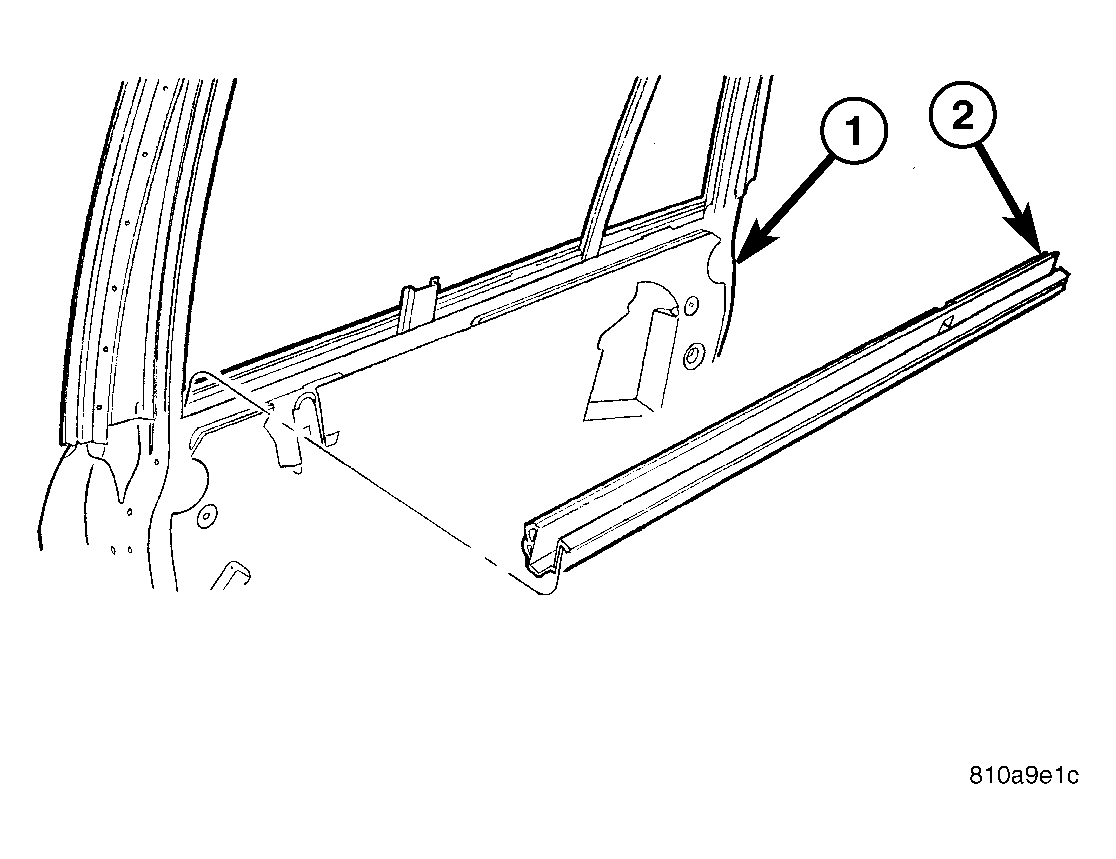

Fig 1: REAR DOOR INNER BELT WEATHERSTRIP

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR ASSEMBLY

2 - INNER BELT MOLDING
