Front Fender: Removal

  1. Remove headlamp housing. (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - REMOVAL) .
  2. Remove inner splash shield. (Refer to BODY/EXTERIOR/LF WHEELHOUSE SPLASH SHIELD - REMOVAL) .
  3. Remove fender to fascia fasteners.
  4. Remove outboard cowl grille/fender bracket screw. See Fig 1.
  5. Remove fender screws to lower sill panel. See Fig 2.
  6. Remove fender screw to A-pillar. See Fig 3.
  7. Pull fascia away from fender.
  8. Remove bolts attaching fender to side shield. See Fig 4.
  9. From inside engine compartment, remove bolts attaching fender to upper rail. See Fig 5.
  10. Remove fender from vehicle.
Fig 1: FENDER BRACKET TO COWL ATTACHING SCREWS
GC0001035Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT FENDER
2 - ATTACHING SCREW

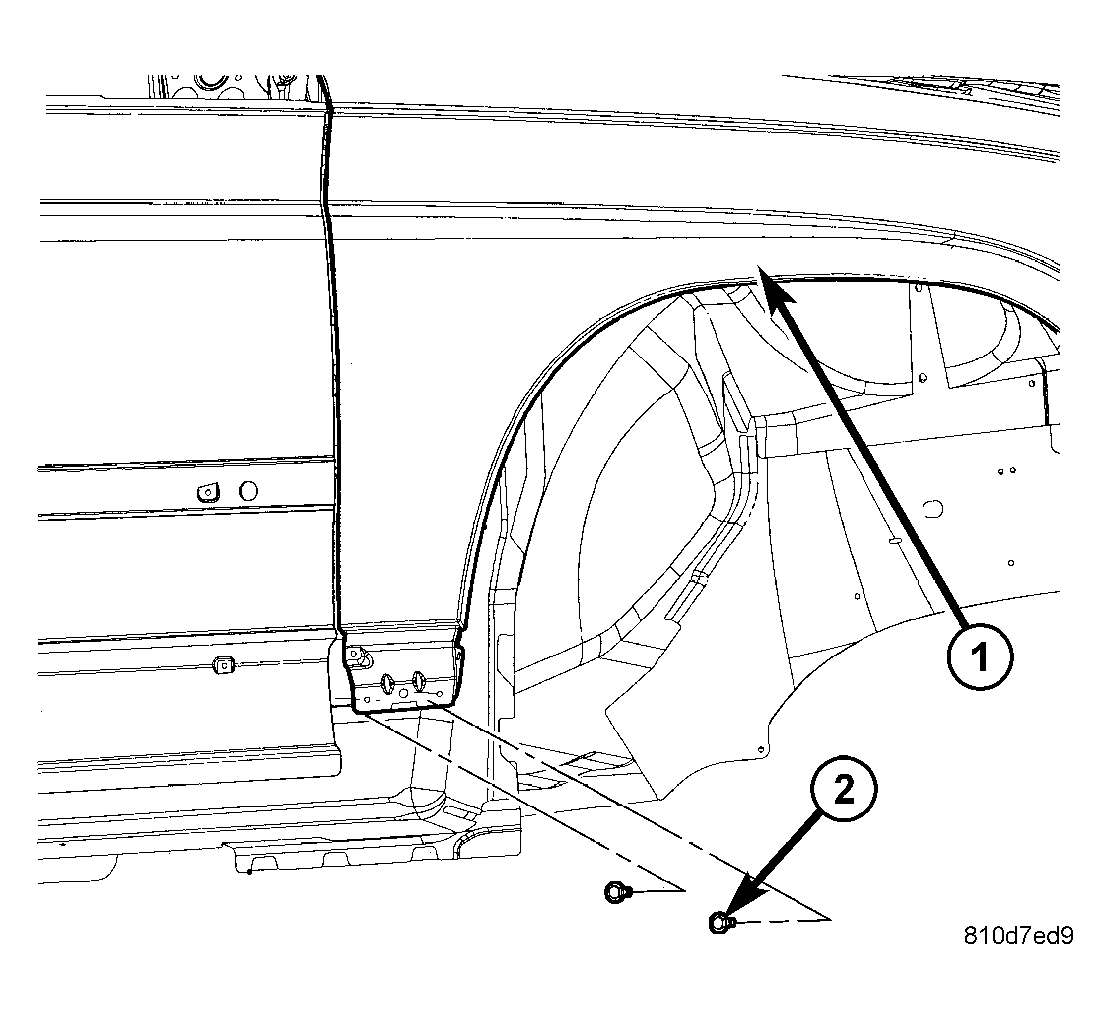

Fig 2: FENDER TO SILL ATTACHING SCREWS
GC0001034Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT FENDER
2 - ATTACHING SCREWS

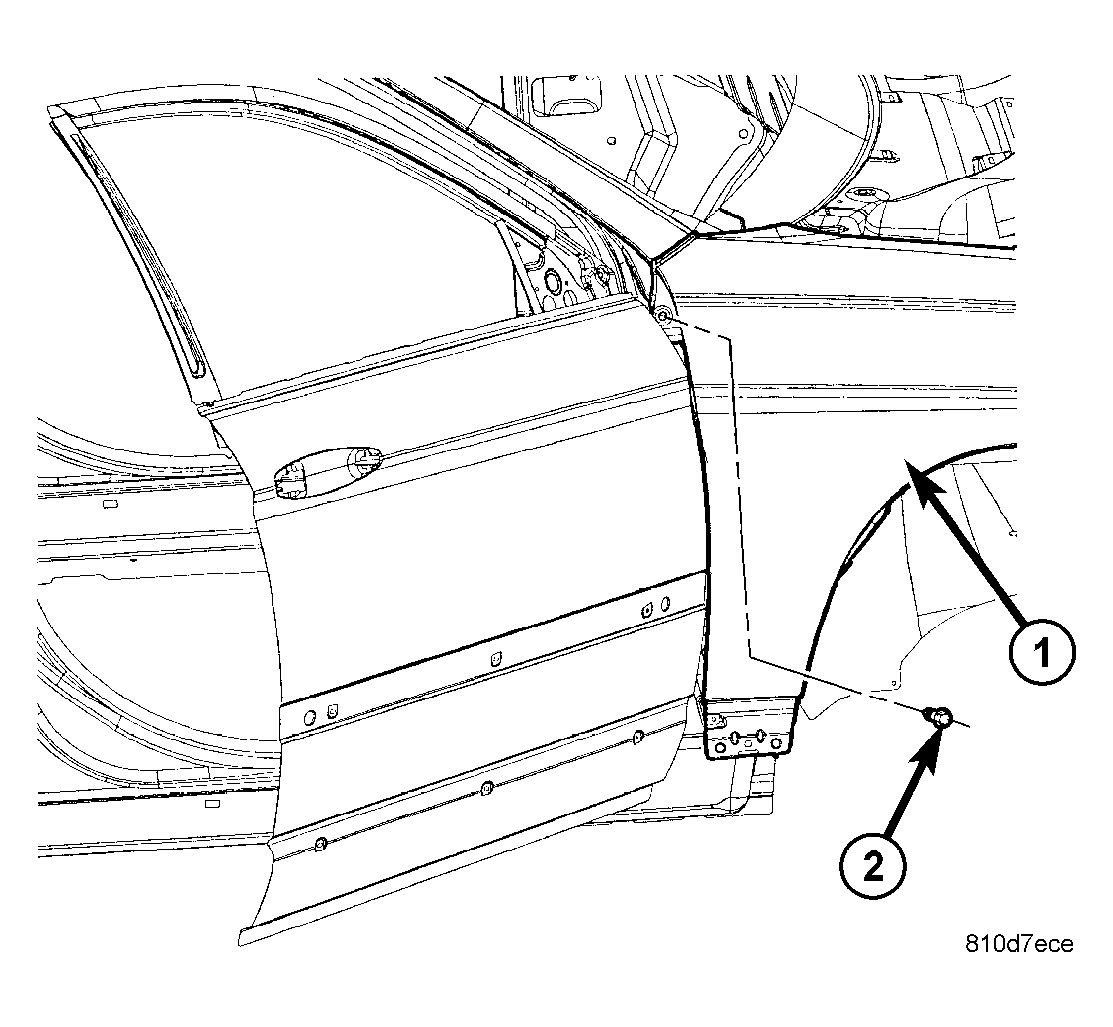

Fig 3: FENDER TO A-PILLAR ATTACHING SCREWS
GC0001033Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT FENDER
2 - ATTACHING SCREW

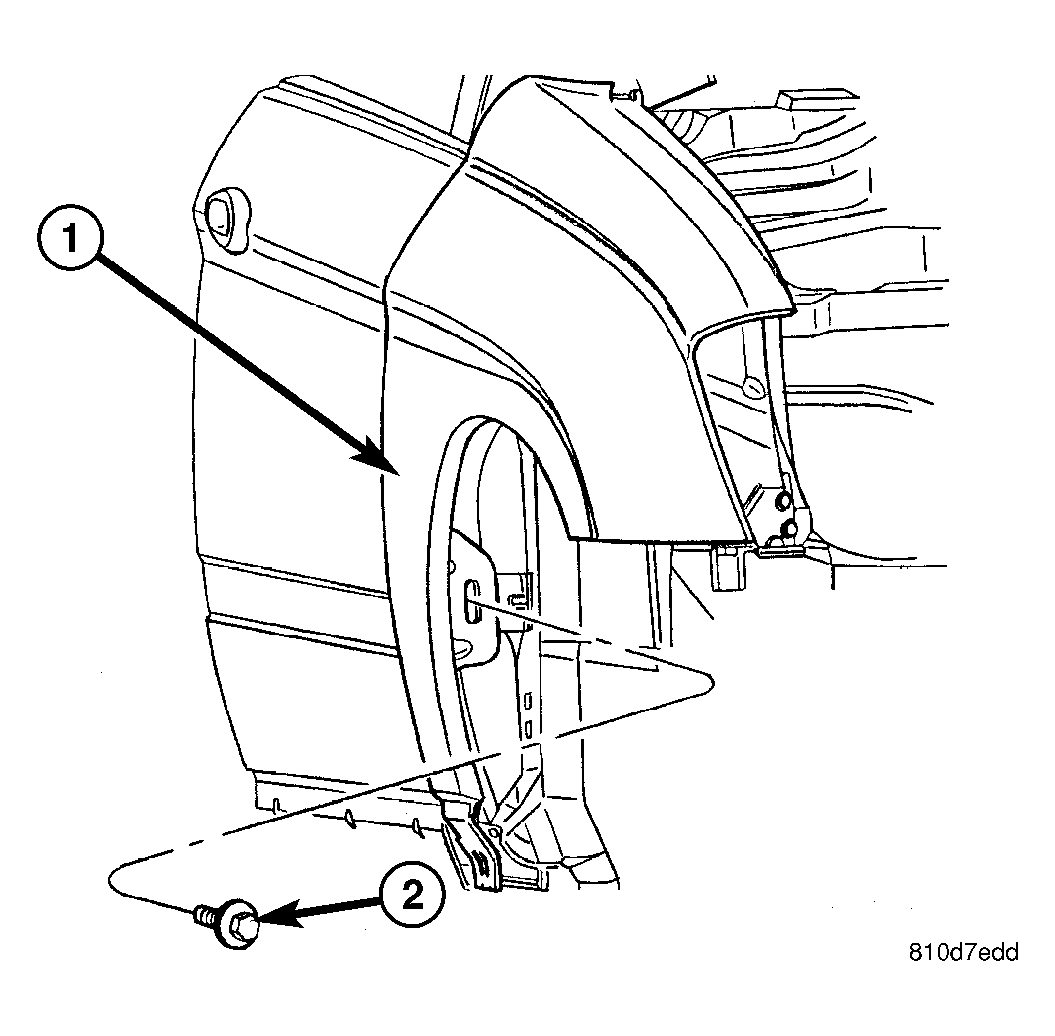

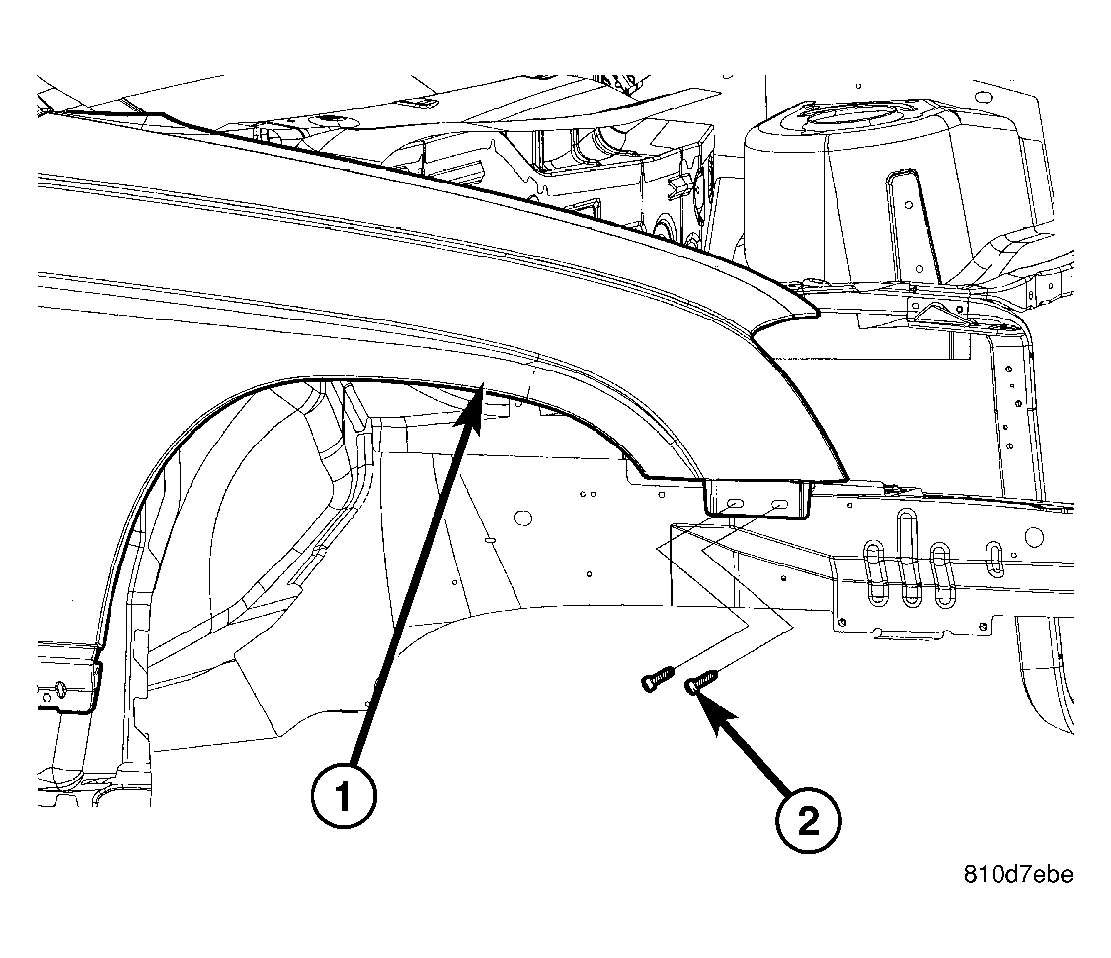

Fig 4: FENDER TO BODY ATTACHING SCREWS
GC0001032Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT FENDER
2 - ATTACHING SCREWS

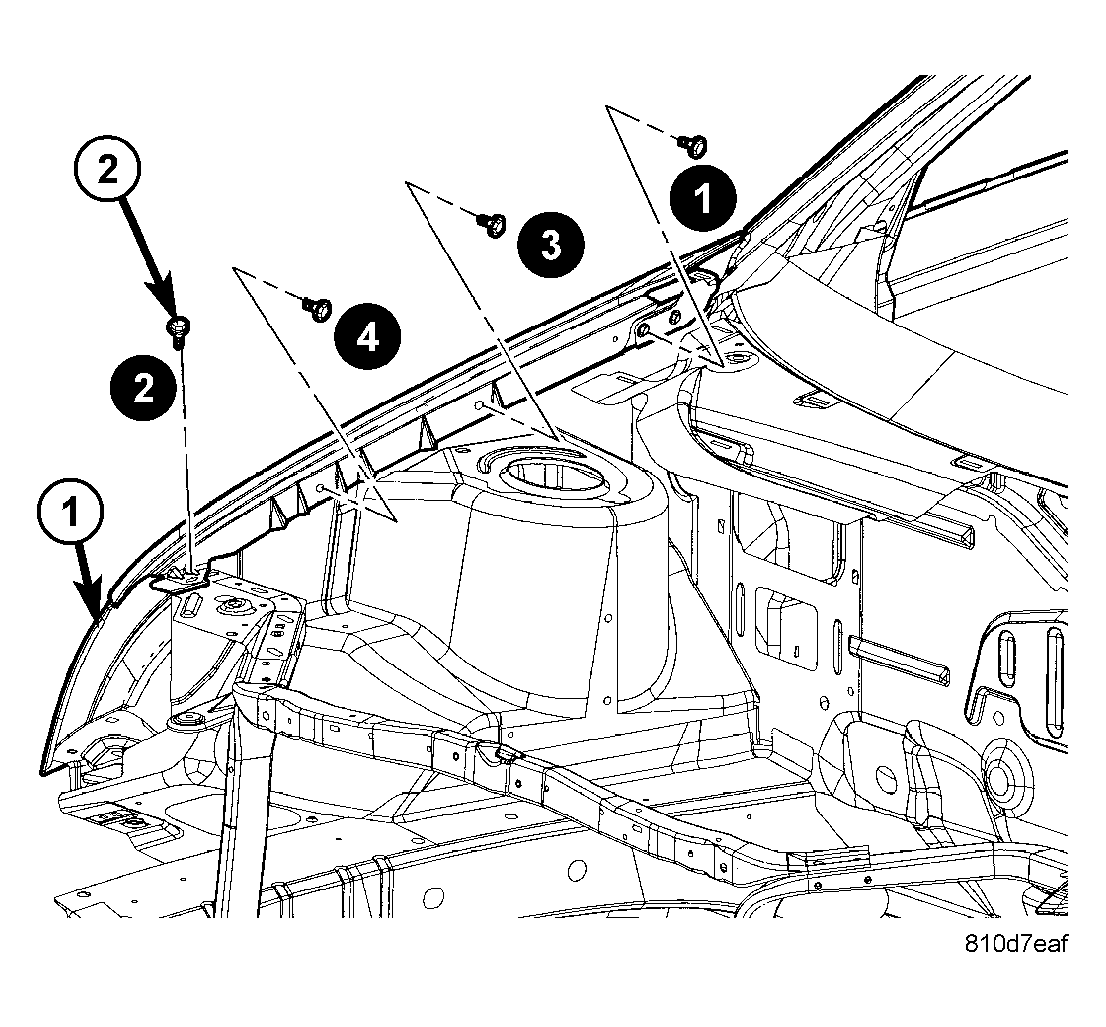

Fig 5: FRONT FENDER
GC0001031Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT FENDER
2 - ATTACHING SCREWS AND TIGHTENING SEQUENCE
