Accessory Drive Splash Shield: Removal

Hoist and support vehicle on safety stands, as necessary.
Move front wheel as necessary to access the splash shield.
Remove four push pins attaching accessory drive splash shield to engine cradle. See Fig 1.
Remove accessory drive splash shield from vehicle.

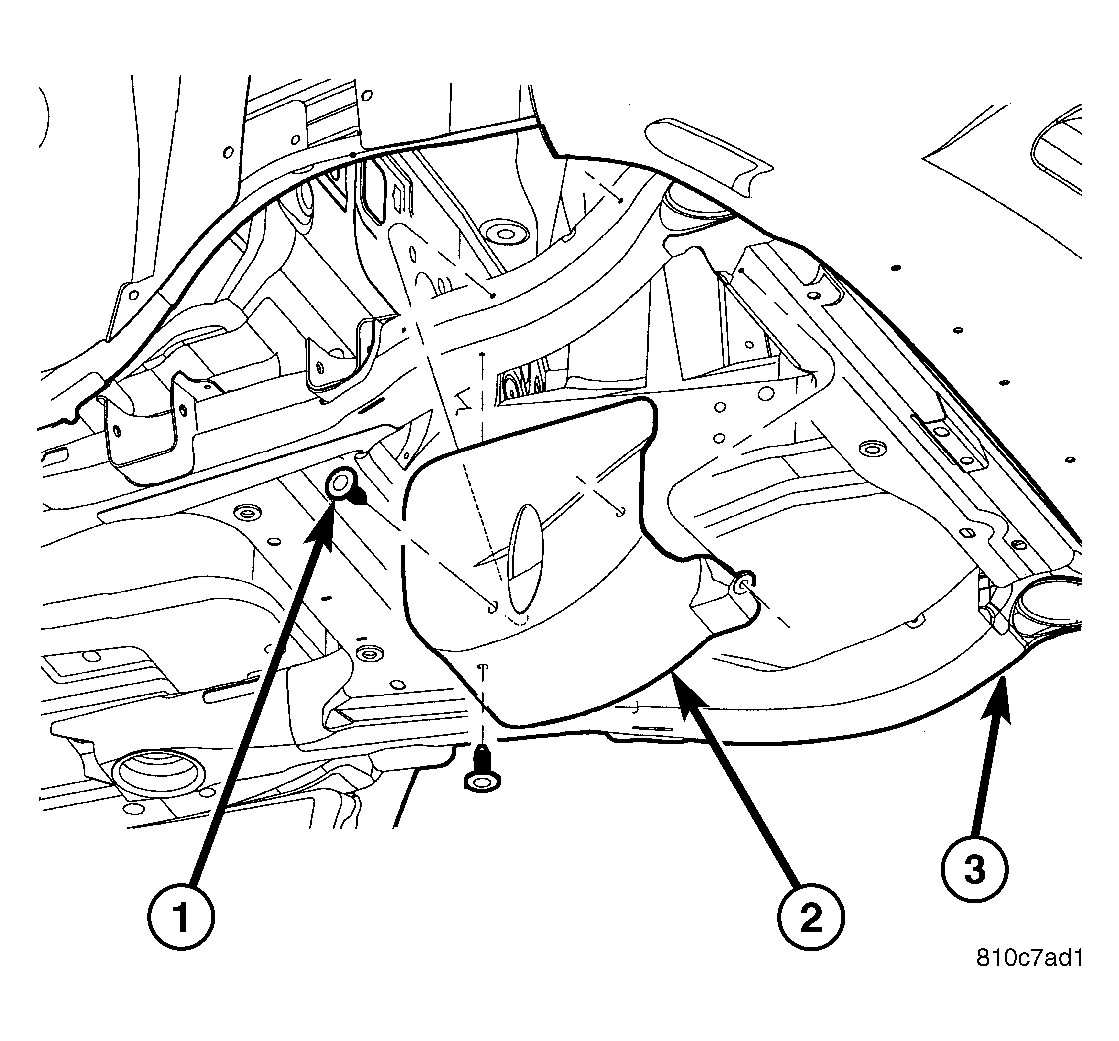

Fig 1: ACCESSORY DRIVE SPLASH SHIELD

Courtesy of DAIMLERCHRYSLER CORP.

1 - PUSH PIN(S)

2 - ACCESSORY DRIVE SPLASH SHIELD

3 - ENGINE CRADLE
