Headlamp Unit: Removal

Open hood, disconnect and isolate the battery negative cable.

Remove the two headlamp unit retaining screws. See Fig 1.

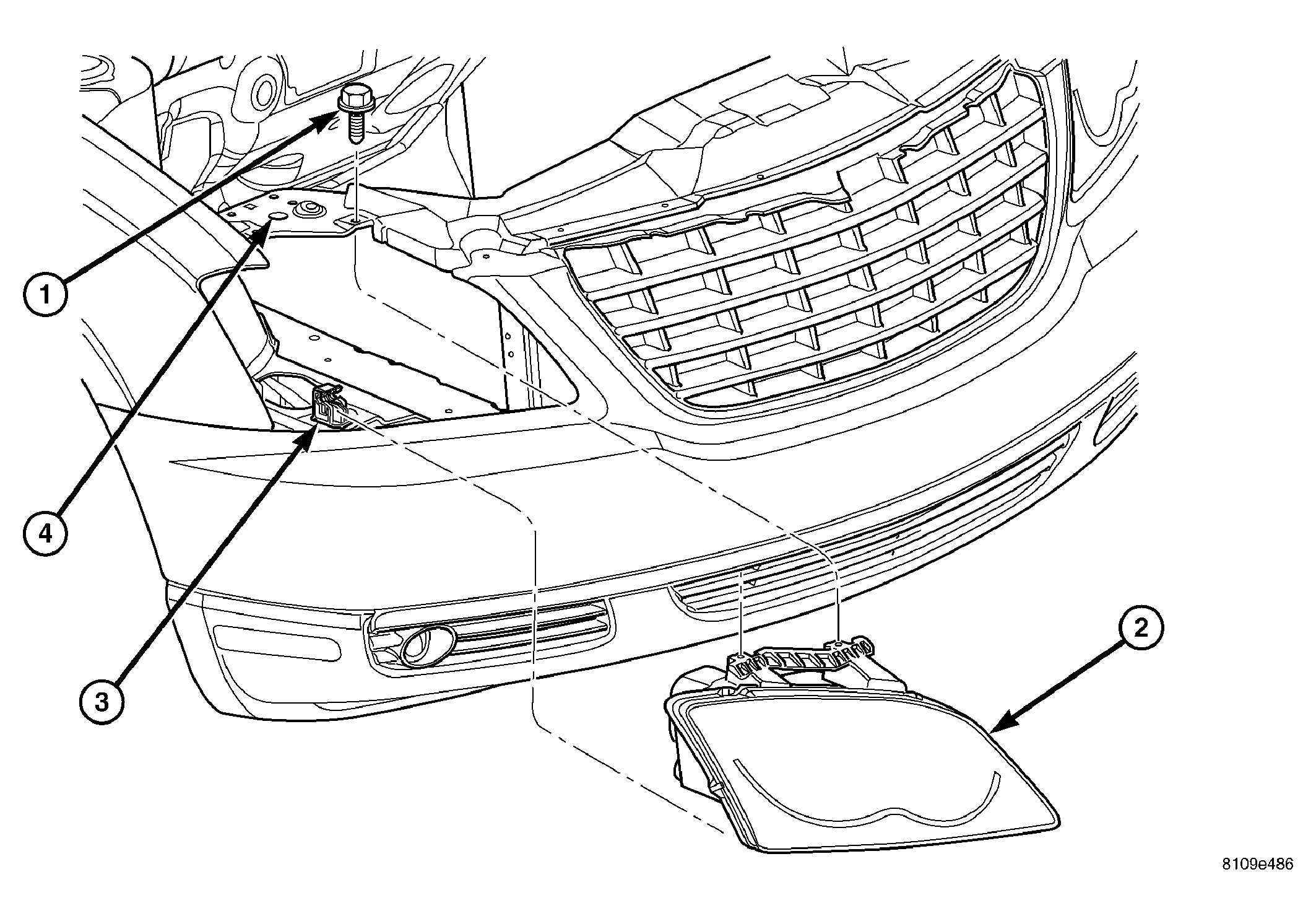

Fig 1: Headlamp Unit Mounting - Remove/Install

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEADLAMP UNTI RETAINING SCREW	3 - LOWER HEADLAMP UNIT RETAINING CLIP
2 - HEADLAMP UNIT	4 - VERTICAL HEADLAMP ADJUSTMENT SCREW

Gently pull headlamp unit forward, unsnapping it from the lower retaining clip. See Fig 2. Be careful not to damage lower retaining clip upon removal.

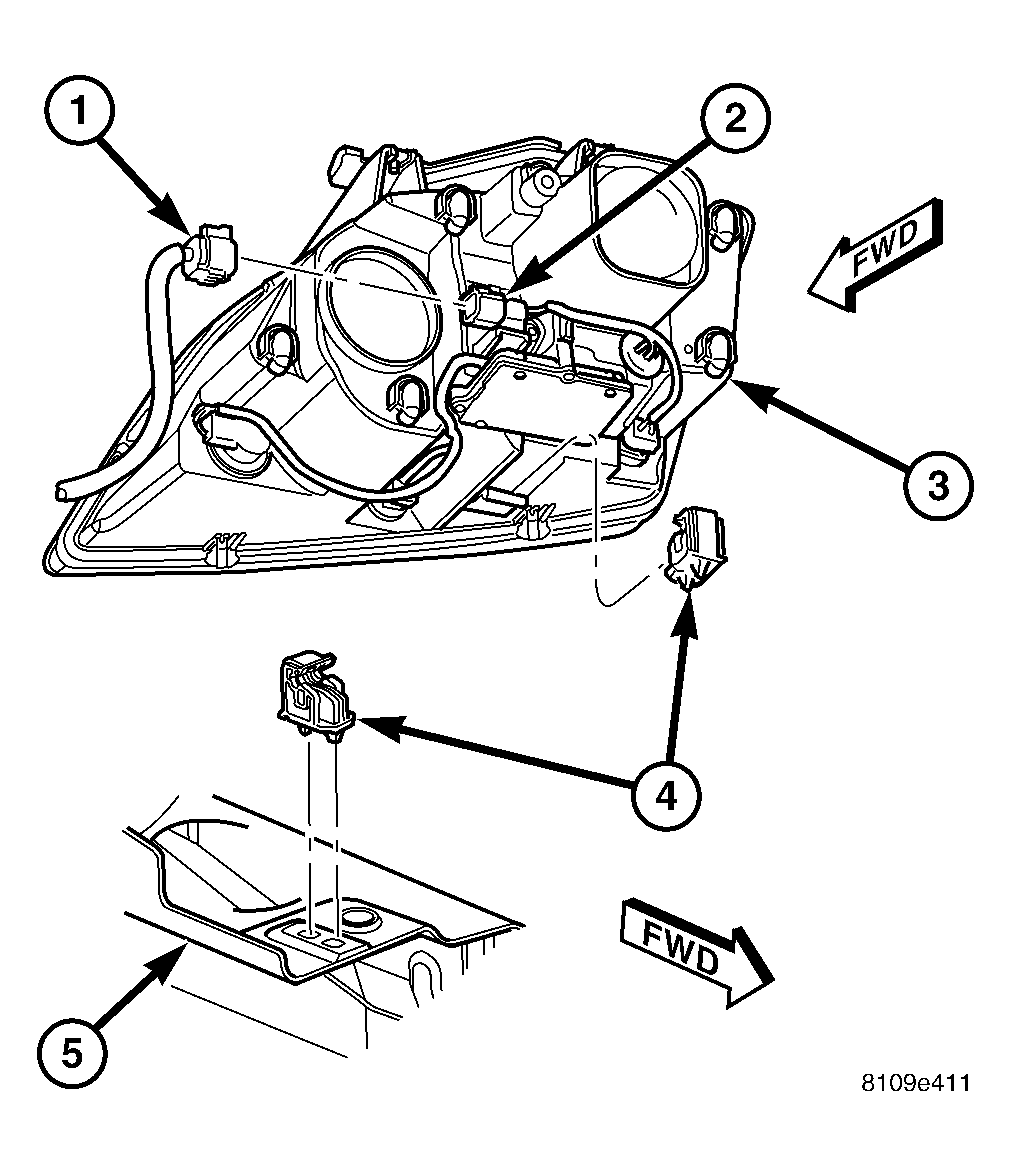

Fig 2: Headlamp Unit Lower Attachment

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEADLAMP UNIT BODY HARNESS CONNECTOR

2 - HEADLAMP UNIT ELECTRICAL CONNECTOR

3 - HEADLAMP UNIT

4 - LOWER HEADLAMP UNIT RETAINING CLIP

5 - HEADLAMP UNIT BODY OPENING

Disconnect the headlamp unit electrical connector. See Fig 2.
Transfer the lamps to the new headlamp unit if replacing.
