Front Cover

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Raise vehicle on hoist.
  3. Remove right front wheel and accessory drive belt splash shield.
  4. Remove the accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  5. Remove the crankshaft damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL)  .
  6. Remove accessory drive belt automatic tensioner.
  7. Disconnect generator connectors. Remove generator and bracket.
  8. Lower vehicle.
  9. Position a jack under engine. Raise jack enough to support engine weight.
  10. Remove the right engine mount (Refer to ENGINE/ENGINE MOUNTING/RIGHT MOUNT - REMOVAL)  .
  11. Remove front engine mount bracket. See Fig 1.
  12. Remove the front timing belt cover. See Fig 1.

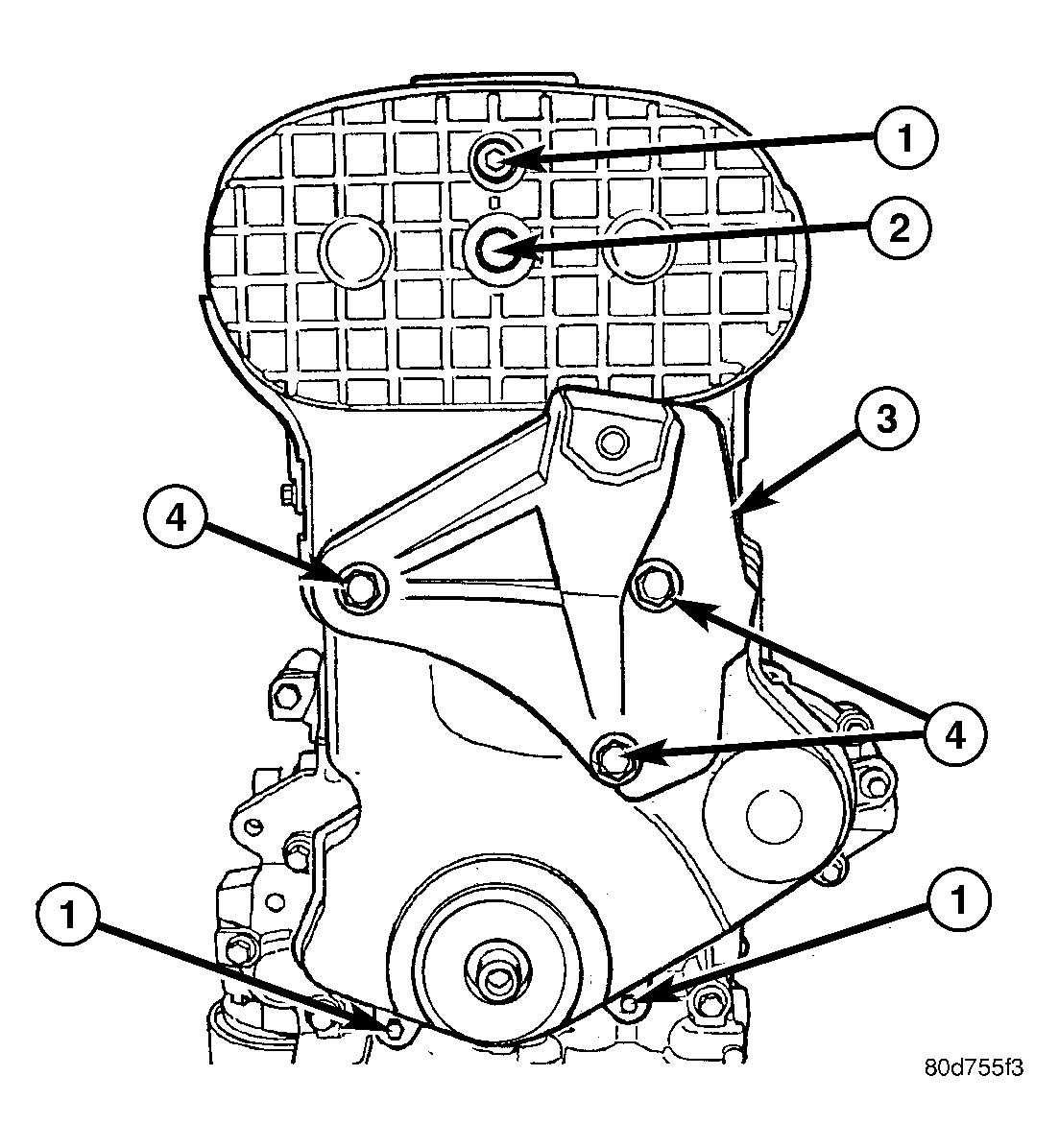

Fig 1: Front Timing Belt Cover
GC0032078Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT TIMING BELT COVER FASTENERS
2 - ACCESS PLUG
3 - FRONT ENGINE MOUNT BRACKET
4 - FASTENERS
