Vibration Damper: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Support engine under oil pan with wooden block and floor jack.
  3. Remove three right side engine mount vertical bolts to front engine bracket.
  4. Raise vehicle on hoist.
  5. Remove right front wheel and belt splash shield.
  6. Support engine under oil pan with a wooden block and screw jack. See Fig 1.
  7. Remove front and rear engine mount through bolts.
  8. Slowly lower engine down with screw jack.
  9. Remove accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  10. Remove crankshaft damper bolt.
  11. Remove damper using Special Tool 8454 Puller and Insert 6827-A. See Fig 2.
Fig 1: Vibration Damper - Removal
GC0032051Courtesy of DAIMLERCHRYSLER CORP.
1 - VIBRATION DAMPER
2 - WOODEN BLOCK
3 - SCREW JACK

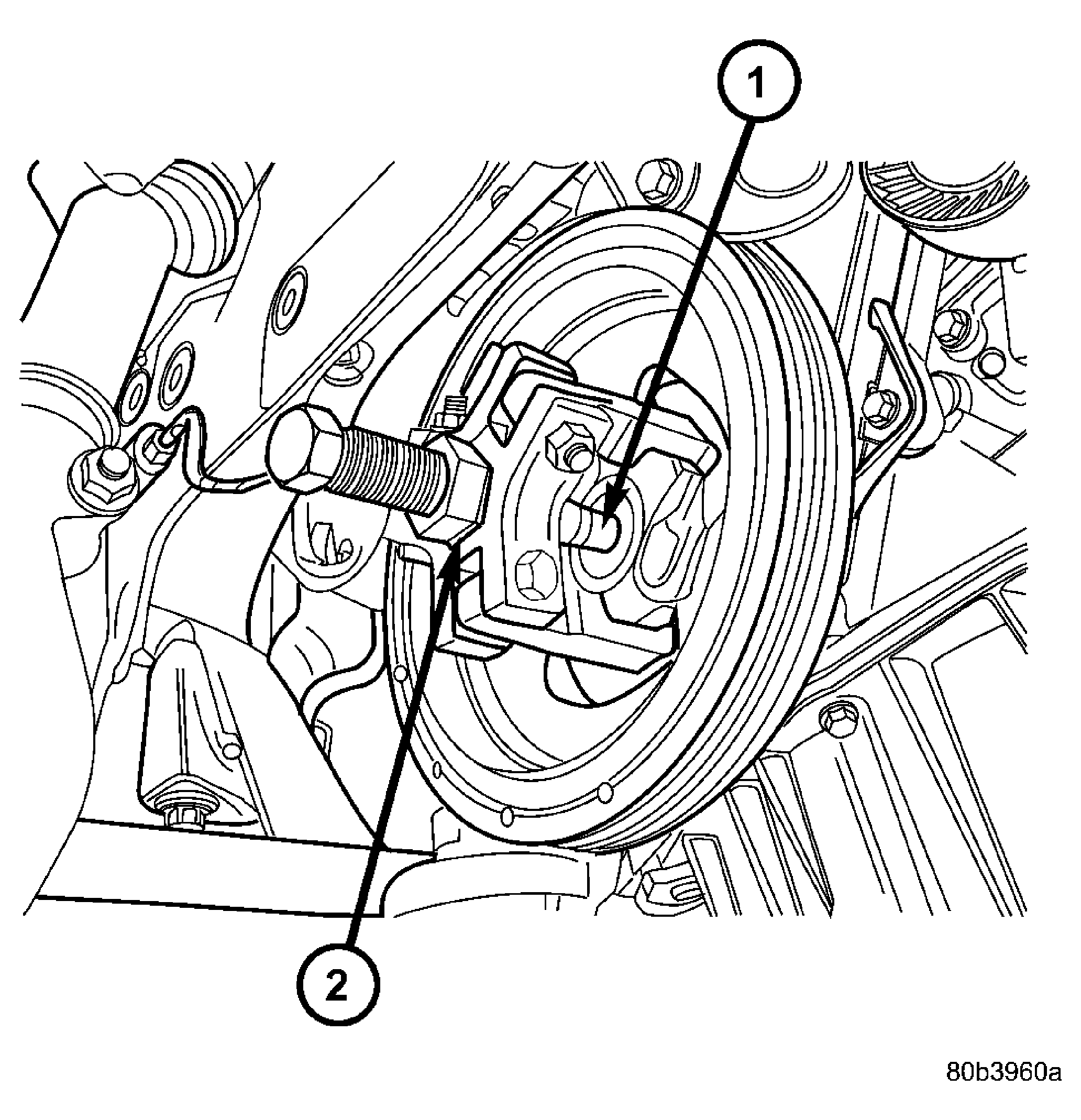

Fig 2: Vibration Damper - Removal
GC0032052Courtesy of DAIMLERCHRYSLER CORP.
1 - SPECIAL TOOL 6827-A INSERT
2 - SPECIAL TOOL 8454 PULLER
