Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

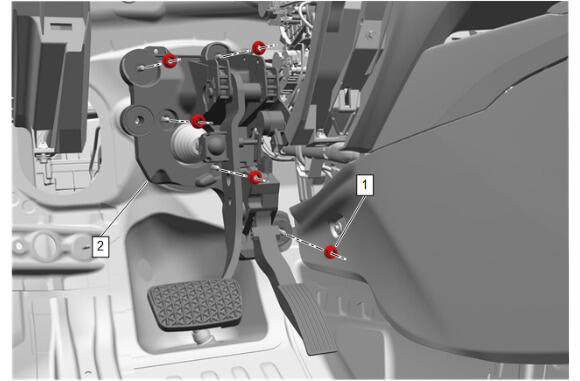

Brake and Accelerator Pedal Assembly (2) Install
Wiring Harness Retainer @ Brake and Accelerator Pedal Assembly - Secure

CAUTION:

Fastener Caution

Brake and Accelerator Pedal Bracket Nut (1) Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Push Rod Retainer (1) @ Brake Pedal Push Rod (3) - Install NEW
Brake Pedal Push Rod (3) @ Brake Pedal (2) - Connect
Wiring Harness Retainer @ Brake and Accelerator Pedal Bracket - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

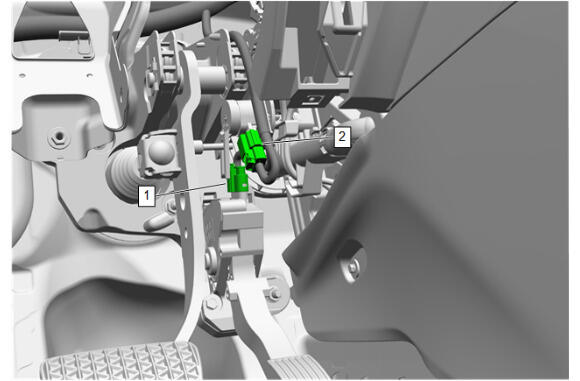

Electrical Connector (2) @ Brake Pedal Position Sensor - Connect
Electrical Connector (1) @ Accelerator Pedal Position Sensor - Connect
Courtesy of GENERAL MOTORS COMPANY

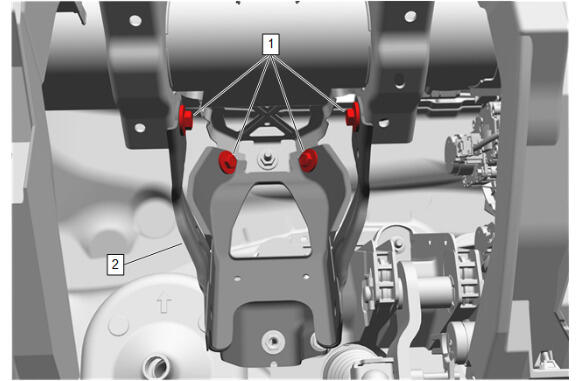

Steering Column Bracket (2) @ Instrument Panel Tie Bar - Install
Wiring Harness Retainer @ Steering Column Bracket - Secure
Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] - Fastener Specifications
Steering Column - Install - Steering Column Removal and Installation (URO) , or Steering Column Removal and Installation (UDC)
Courtesy of GENERAL MOTORS COMPANY

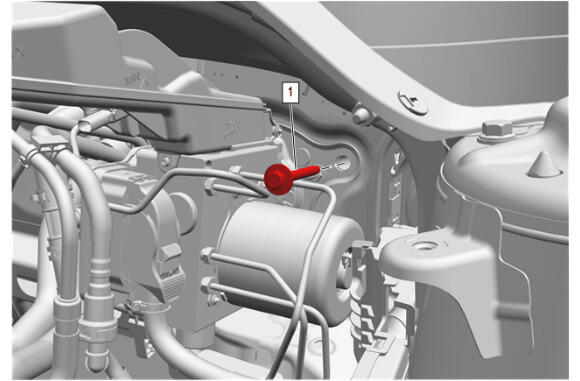

Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Tray Bracket (3) - Install
Battery Tray Bracket Nut (2) - Install and tighten - Fastener Specifications
Battery Tray Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect any harness retainers to the battery tray bracket.
Courtesy of GENERAL MOTORS COMPANY

Battery Tray (2) - Install
Battery Tray Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect any harness retainers attached to the battery tray.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Front Duct (2) @ Air Cleaner Assembly (3) - Install
Air Cleaner Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Wiring Harness Retainer (2) - Install
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose (1) @ Air Cleaner Assembly (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Battery (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Battery Hold Down Retainer (2) - Install
Battery Hold Down Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Hold Down Retainer (3) - Install
Battery Hold Down Nut (1) - Install and tighten - Fastener Specifications
Battery Hold Down Bolt (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Engine Compartment Fuse Block (2) - Install
Engage the retaining tabs.
Battery Positive Post Clamp Nut (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Body Wiring Harness (6) - Install
Engine Wiring Harness (5) - Install
Battery Positive Cable (4) - Install
Body Wiring Harness Terminal Nut (3) - Tighten [4x] - Fastener Specifications
Engine Wiring Harness Terminal Nut (2) - Tighten - Fastener Specifications
Battery Positive Cable Nut (1) - Tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Engine Compartment Fuse Block Cover (1) - Install
Engage the retaining tabs.
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
