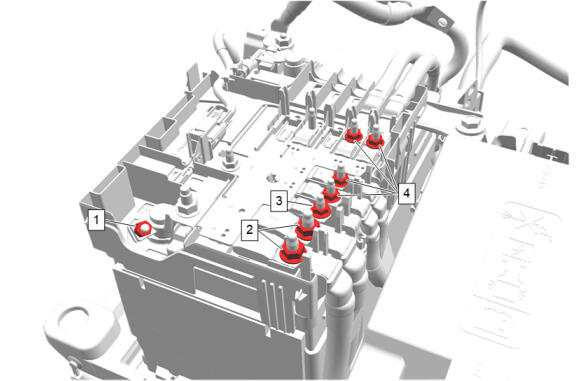

Fastener Specifications
Battery Distribution Fuse Block
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Battery Positive Post Clamp Nut | - | - | 5 N.m (44 lb in) | Battery Distribution Engine Compartment Fuse Block Replacement |
| 2 | Battery Positive Cable Nut [2x] | - | - | 15 N.m (11 lb ft) | |
| 3 | Engine Wiring Harness Terminal Nut | - | - | 9 N.m (80 lb in) | |
| 4 | Body Wiring Harness Terminal Nut [4x] | - | - | 9 N.m (80 lb in) |

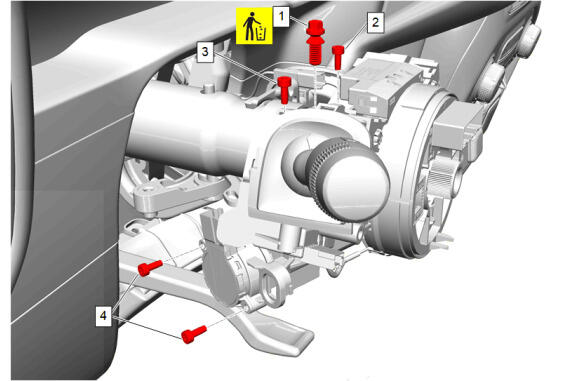

Ignition Components
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Ignition and Start Switch Housing Bolt | Yes | - | Tighten until the bolt head breaks off. | Ignition and Start Switch Housing Replacement |
| 2 | Ignition and Start Switch Housing Bolt-Right Side | - | - | 2.5 N.m (22 lb in) | Ignition and Start Switch Housing Replacement |
| 3 | Ignition and Start Switch Housing Bolt-Left Side | - | - | 2.5 N.m (22 lb in) | Ignition and Start Switch Housing Replacement |
| 4 | Ignition and Start Switch Bolt [2x] | - | - | 1.8 N.m (16 lb in) | Ignition and Start Switch Replacement (BTM) , or Ignition and Start Switch Replacement (- BTM) |
