Installation Procedure

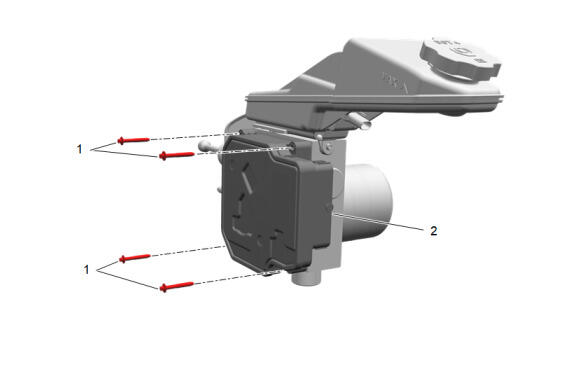

Electronic Brake Control Module (2) - Install
- Electronic Brake Control Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Brake Master Cylinder (3) - Install
- Brake Master Cylinder Bracket Nut (2) - Install and tighten - Fastener Specifications
- Instrument Panel Tie Bar Bolt (1) - Install and tighten - Fastener Specifications
Brake and Accelerator Pedal Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve - Install and tighten [4x] - Fastener Specifications
Electrical Connector (2) @ Electronic Brake Control Module (2) - Connect
- Electrical Connector (1) @ Brake Fluid Level Sensor (2) - Disconnect
Brake Pedal Push Rod Retainer (1) @ Brake Pedal Push Rod (3) - Install NEW
- Brake Pedal Push Rod (3) @ Brake Pedal (2) - Connect
Floor Front Air Outlet Duct - Left Side (2) - Install
- Front Floor Console Rear Air Duct Retainer (1) - Install
Battery Tray Bracket (3) - Install
- Battery Tray Bracket Nut (2) - Install and tighten - Fastener Specifications
- Battery Tray Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect any harness retainers to the battery tray bracket.
Battery Tray (2) - Install
- Battery Tray Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Connect any harness retainers attached to the battery tray.
Air Cleaner Assembly (1) - Install
Air Cleaner Outlet Front Duct (2) @ Air Cleaner Assembly (3) - Install
- Air Cleaner Clamp (1) - Tighten - Fastener Specifications
Wiring Harness Retainer (2) - Install
- Electrical Connector (1) - Connect
Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose (1) @ Air Cleaner Assembly (2) - Install
Intake Air Duct (1) - Install
Intake Air Duct Retainer (1) - Install [2x]
Battery (1) - Install
Battery Hold Down Retainer (2) - Install
- Battery Hold Down Bolt (1) - Install and tighten - Fastener Specifications
Battery Hold Down Retainer (3) - Install
- Battery Hold Down Nut (1) - Install and tighten - Fastener Specifications
- Battery Hold Down Bolt (2) - Install and tighten - Fastener Specifications
Battery Distribution Engine Compartment Fuse Block (2) - Install
- Engage the retaining tabs.
- Battery Positive Post Clamp Nut (1) - Tighten - Fastener Specifications
Body Wiring Harness (6) - Install
- Engine Wiring Harness (5) - Install
- Battery Positive Cable (4) - Install
- Body Wiring Harness Terminal Nut (3) - Tighten [4x] - Fastener Specifications
- Engine Wiring Harness Terminal Nut (2) - Tighten - Fastener Specifications
- Battery Positive Cable Nut (1) - Tighten [2x] - Fastener Specifications
Electrical Connector (1) - Connect
Battery Distribution Engine Compartment Fuse Block Cover (1) - Install
- Engage the retaining tabs.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Program the electronic brake control module. Control Module References
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
- Connect the scan tool and perform the brake pressure test.
