Installation Procedure

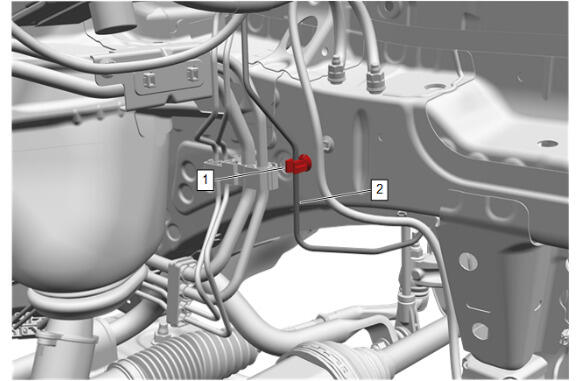

Brake Pressure Modulator Valve Front Brake Pipe (2) @ Vehicle - Install
- Brake Pressure Modulator Valve Front Brake Pipe Clip (1) - Secure

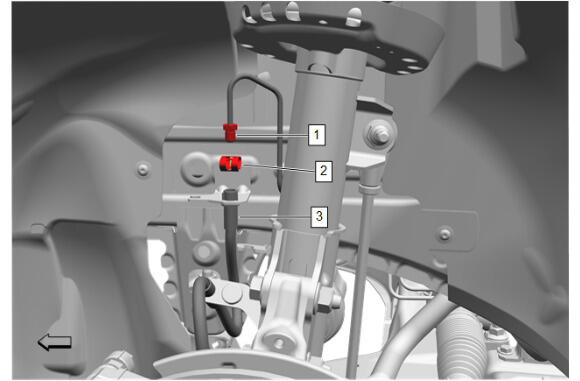

Front Brake Hose Retainer (2) - Install
- Brake Pressure Modulator Valve Front Brake Pipe Fitting (1) @ Front Brake Hose (3) - Install and tighten - Fastener Specifications

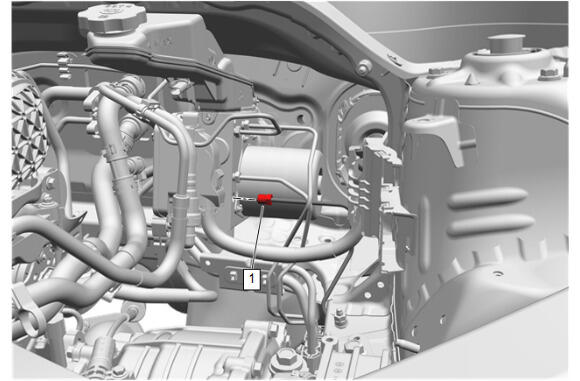

Remove the plug from the brake pressure modulator valve port.
- Brake Pressure Modulator Valve Front Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve - Install and tighten - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Battery Tray Bracket (3) - Install
- Battery Tray Bracket Nut (2) - Install and tighten - Fastener Specifications
- Battery Tray Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect any harness retainers to the battery tray bracket.
Battery Tray (2) - Install
- Battery Tray Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Connect any harness retainers attached to the battery tray.
Air Cleaner Assembly (1) - Install
Air Cleaner Outlet Front Duct (2) @ Air Cleaner Assembly (3) - Install
- Air Cleaner Clamp (1) - Tighten - Fastener Specifications
Wiring Harness Retainer (2) - Install
- Electrical Connector (1) - Connect
Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose (1) @ Air Cleaner Assembly (2) - Install
Intake Air Duct (1) - Install
Intake Air Duct Retainer (1) - Install [2x]
Battery (1) - Install
Battery Hold Down Retainer (2) - Install
- Battery Hold Down Bolt (1) - Install and tighten - Fastener Specifications
Battery Hold Down Retainer (3) - Install
- Battery Hold Down Nut (1) - Install and tighten - Fastener Specifications
- Battery Hold Down Bolt (2) - Install and tighten - Fastener Specifications
Battery Distribution Engine Compartment Fuse Block (2) - Install
- Engage the retaining tabs.
- Battery Positive Post Clamp Nut (1) - Tighten - Fastener Specifications
Body Wiring Harness (6) - Install
- Engine Wiring Harness (5) - Install
- Battery Positive Cable (4) - Install
- Body Wiring Harness Terminal Nut (3) - Tighten [4x] - Fastener Specifications
- Engine Wiring Harness Terminal Nut (2) - Tighten - Fastener Specifications
- Battery Positive Cable Nut (1) - Tighten [2x] - Fastener Specifications
Electrical Connector (1) - Connect
Battery Distribution Engine Compartment Fuse Block Cover (1) - Install
- Engage the retaining tabs.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)
- Lower the vehicle.
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
