Installation Procedure

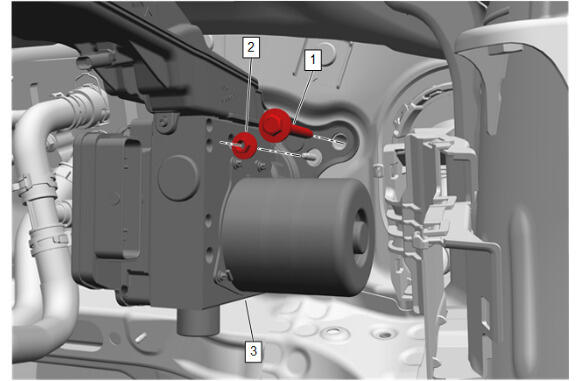

  1. GM5924376Courtesy of GENERAL MOTORS COMPANY

    Brake Master Cylinder (3) - Install

  2. Brake Master Cylinder Bracket Nut (2) - Install and tighten - Fastener Specifications
  3. Instrument Panel Tie Bar Bolt (1) - Install and tighten - Fastener Specifications

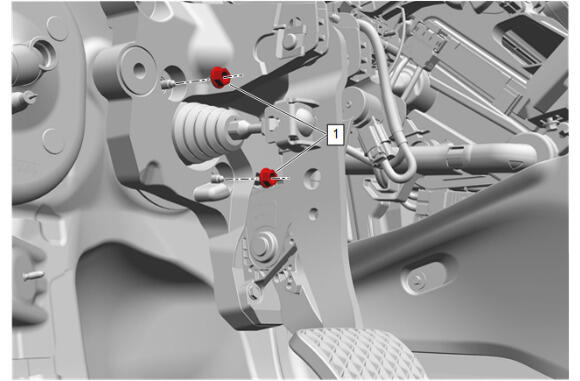

  4. GM5924373Courtesy of GENERAL MOTORS COMPANY

    Brake and Accelerator Pedal Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications

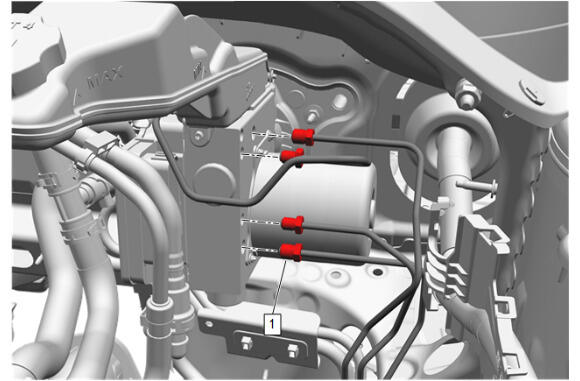

  5. GM5924372Courtesy of GENERAL MOTORS COMPANY

    Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve - Install and tighten [4x] - Fastener Specifications

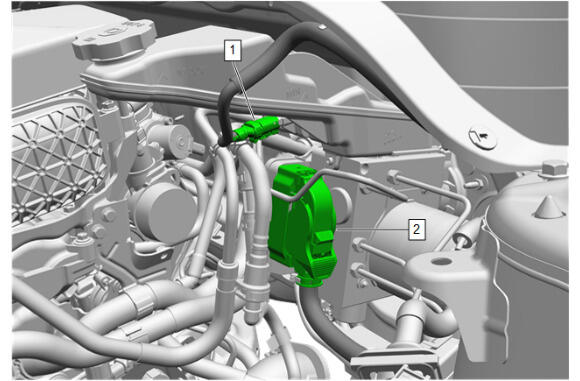

  6. GM5924371Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2) @ Electronic Brake Control Module (2) - Connect

  7. Electrical Connector (1) @ Brake Fluid Level Sensor (2) - Disconnect

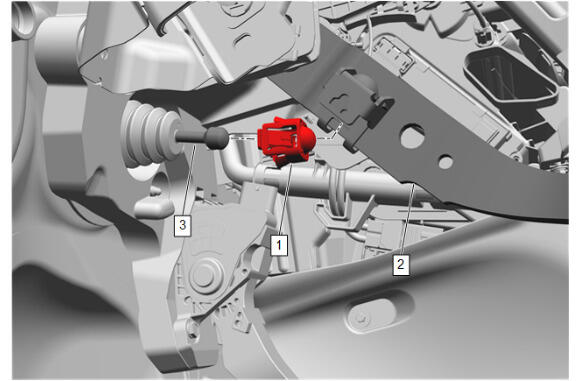

  8. GM5924375Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Push Rod Retainer (1) @ Brake Pedal Push Rod (3) - Install NEW

  9. Brake Pedal Push Rod (3) @ Brake Pedal (2) - Connect

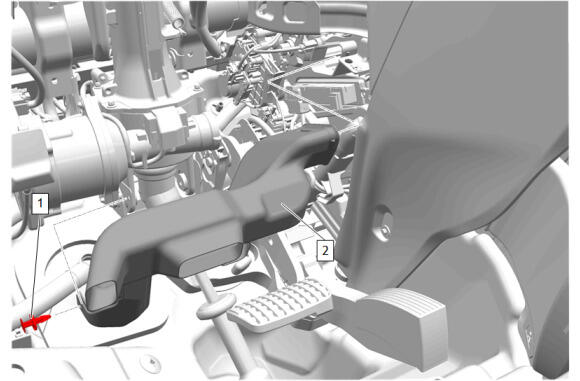

  10. GM5925687Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Install

  11. Front Floor Console Rear Air Duct Retainer (1) - Install

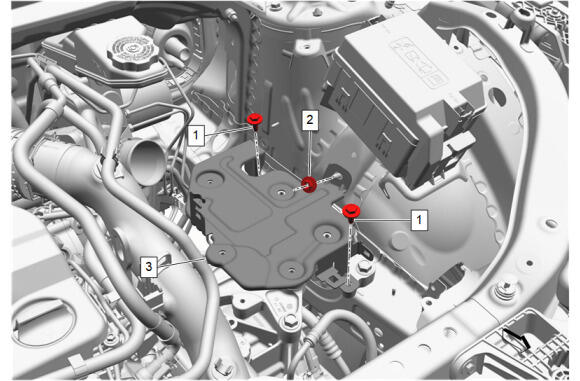

  12. GM6193295Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Bracket (3) - Install

  13. Battery Tray Bracket Nut (2) - Install and tighten - Fastener Specifications
  14. Battery Tray Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  15. Connect any harness retainers to the battery tray bracket.

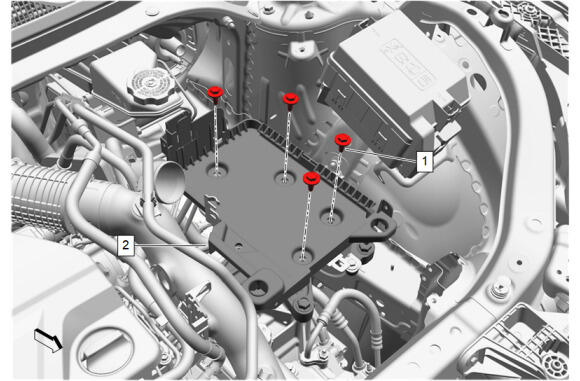

  16. GM6193294Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (2) - Install

  17. Battery Tray Bolt (1) - Install and tighten [4x] - Fastener Specifications
  18. Connect any harness retainers attached to the battery tray.

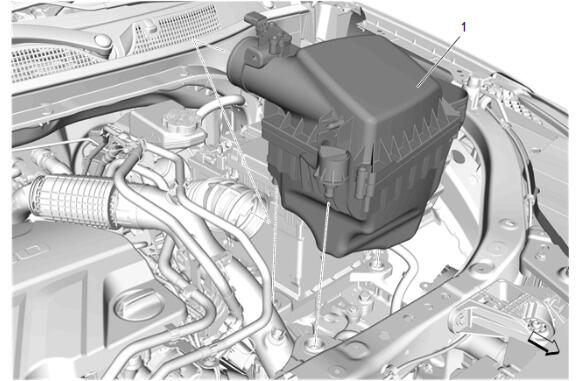

  19. GM6162731Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Install

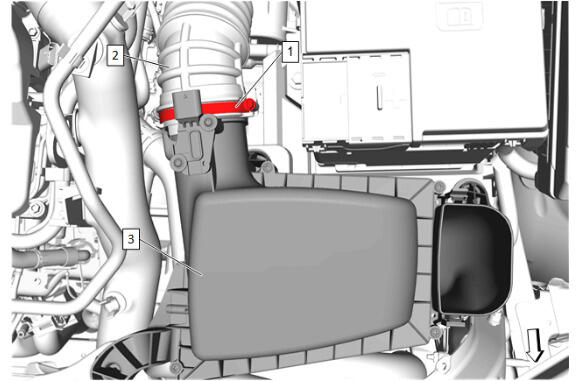

  20. GM6162730Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Front Duct (2) @ Air Cleaner Assembly (3) - Install

  21. Air Cleaner Clamp (1) - Tighten - Fastener Specifications

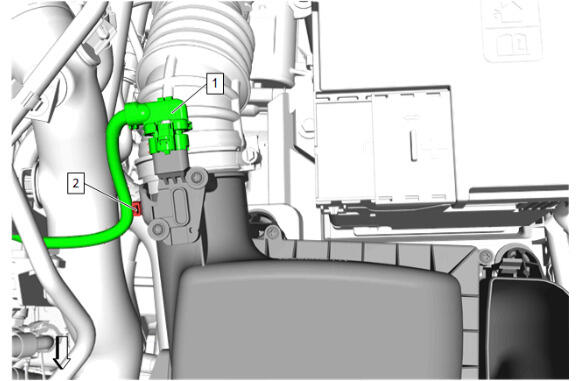

  22. GM6162729Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (2) - Install

  23. Electrical Connector (1) - Connect

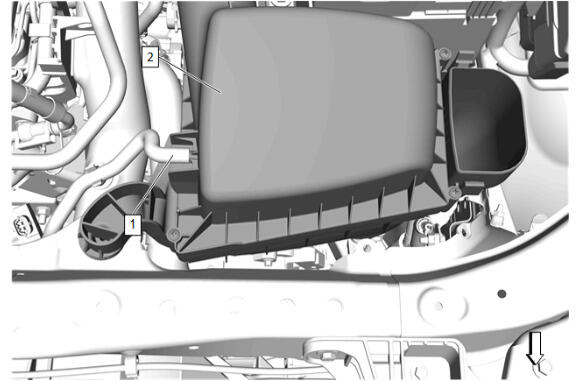

  24. GM6162728Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose (1) @ Air Cleaner Assembly (2) - Install

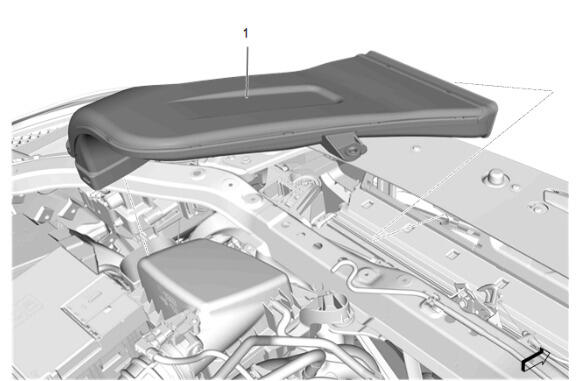

  25. GM6162738Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct (1) - Install

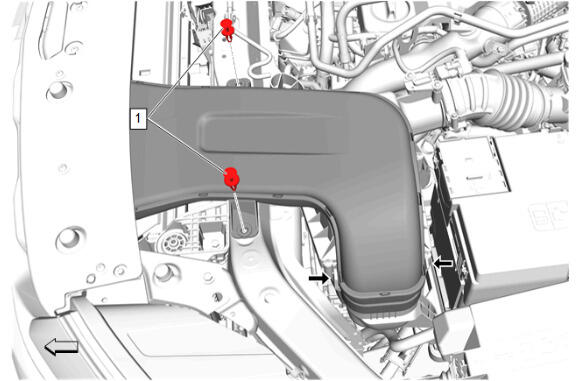

  26. GM6162737Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct Retainer (1) - Install [2x]

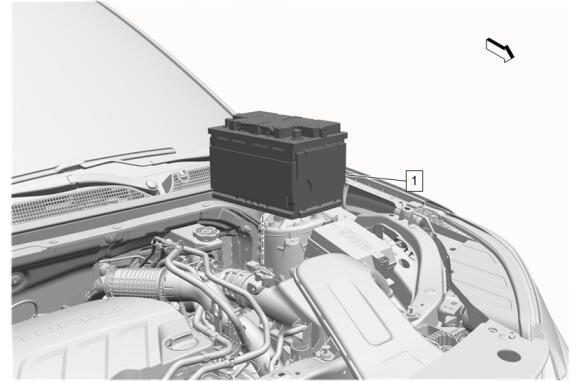

  27. GM6193292Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

  28. GM6193289Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

  29. Battery Hold Down Bolt (1) - Install and tighten - Fastener Specifications

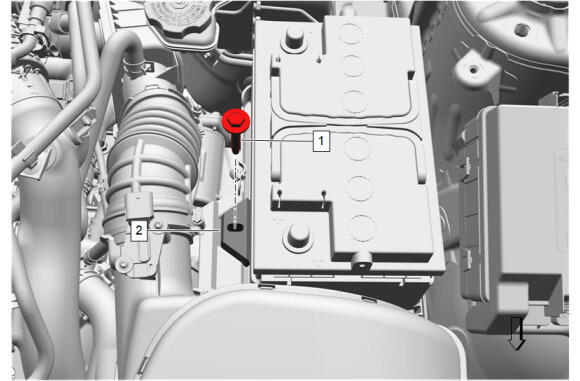

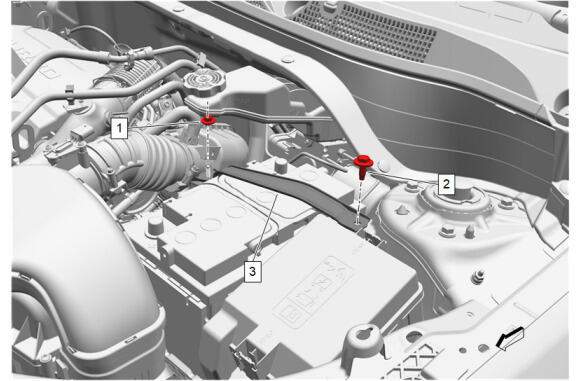

  30. GM6193284Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (3) - Install

  31. Battery Hold Down Nut (1) - Install and tighten - Fastener Specifications
  32. Battery Hold Down Bolt (2) - Install and tighten - Fastener Specifications

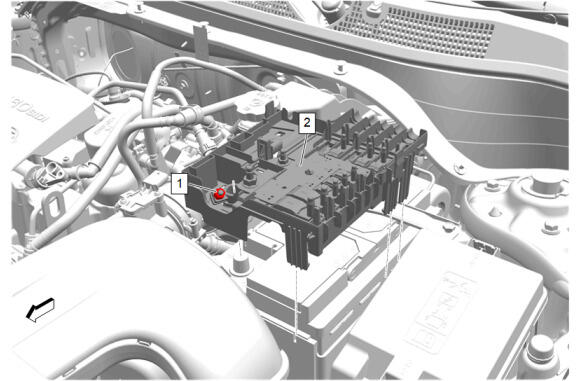

  33. GM5913636Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (2) - Install

  34. Engage the retaining tabs.
  35. Battery Positive Post Clamp Nut (1) - Tighten - Fastener Specifications

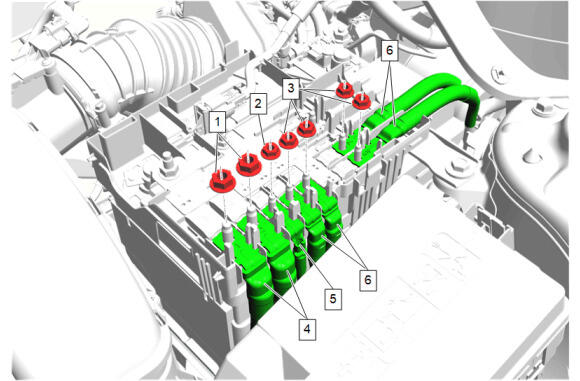

  36. GM5913635Courtesy of GENERAL MOTORS COMPANY

    Body Wiring Harness (6) - Install

  37. Engine Wiring Harness (5) - Install
  38. Battery Positive Cable (4) - Install
  39. Body Wiring Harness Terminal Nut (3) - Tighten [4x] - Fastener Specifications
  40. Engine Wiring Harness Terminal Nut (2) - Tighten - Fastener Specifications
  41. Battery Positive Cable Nut (1) - Tighten [2x] - Fastener Specifications

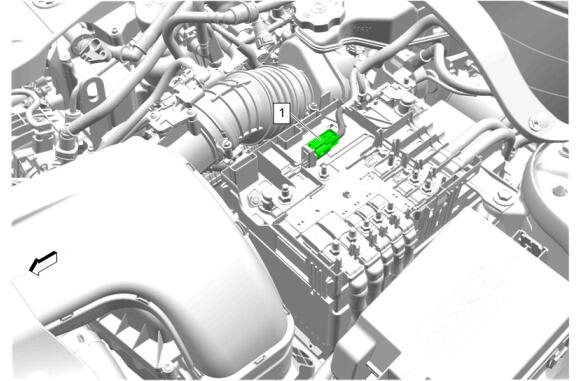

  42. GM5913634Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

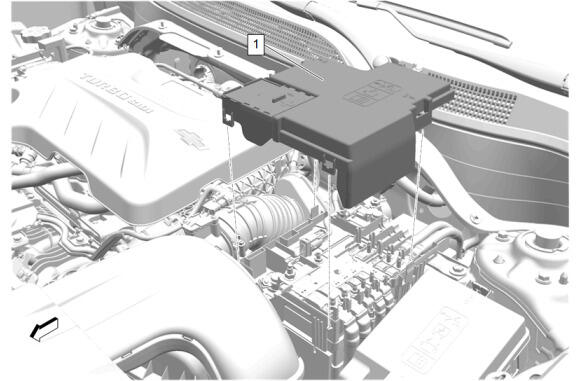

  43. GM5913633Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block Cover (1) - Install

  44. Engage the retaining tabs.
  45. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  46. Program the electronic brake control module. Control Module References
  47. Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)
  48. Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
  49. Connect the scan tool and perform the brake pressure test.
