Installation Procedure

  1. GM5927662Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Never install the passenger airbag module into the instrument panel assembly that airbag module chute is cut. This may cause incorrect deployment when the passenger airbag is deployed.

    Position the passenger air bag module (1) on the air bag chute.

    2. CAUTION:

    Make sure that the passenger airbag is installed into the chute completely.

  2. Push the passenger airbag module (1) into the airbag chute until the hooks of airbag module are seated completely.
  3. GM5932217Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument panel assembly (1) in the vehicle.

  4. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel assembly (1).
  5. GM5932216Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    There may be few different retainers captured in the graphic.

    Retainer (1) - Install [4x]

  6. GM5932215Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Connector (1) - Install [2x]

  7. GM6175250Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    There may be few different retainers captured in the graphic.

    Retainer (1) - Install [7x]

  8. Connect the electrical connector and install the wiring harness retainers as necessary. (2)
  9. GM6175243Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Airbag Bolt (1) - Install and tighten [3x] - Fastener Specifications

  10. Instrument Panel Compartment Door Latch Striker Bolt (2) - Install and tighten - Fastener Specifications
  11. Retainer (3) - Install
  12. Disconnect the electrical connectors.
  13. GM5932211Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten - Fastener Specifications

  14. GM6200010Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications

  15. GM5932210Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness (2) - Install

  16. Instrument Panel Wiring Harness Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  17. GM5932209Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [5x] - Fastener Specifications

  18. GM5932208Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten - Fastener Specifications

  19. GM5921660Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  20. Sun Load Temperature and Ambient Light and Security Indicator Sensor (1) - Install
  21. GM5918489Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  22. Forward Collision Alert Display (2) - Install
  23. Forward Collision Alert Display Bolt (1) - Install and tighten [2x] - Fastener Specifications
  24. GM5910835Courtesy of GENERAL MOTORS COMPANY

    Forward Collision Alert Display Bezel (1) - Install

  25. GM5927716Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  26. Windshield Wiper and Washer Switch (1) @ Turn Signal Switch Bracket - Install
  27. Secure the retaining tabs.
  28. GM5927717Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  29. Turn Signal Switch (1) @ Turn Signal Switch Bracket - Install
  30. Secure the retaining tabs.
  31. GM5913311Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (2) - Install

  32. Connect the electrical connector.
  33. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers (except GMNA) , or Adhesives, Fluids, Lubricants, and Sealers (GMNA)
  34. Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
  35. GM5913309Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  36. Install any connector position assurance (CPA) devices or secondary locks.
  37. Steering Wheel Airbag (2) - Install
  38. Steering Wheel Airbag Bolt (1) Install and tighten [2x] - Fastener Specifications
  39. GM5913305Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the 2 steering wheel airbag access hole covers (1).

  40. GM5911711Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install

  41. GM6199993Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [12x] - Fastener Specifications

  42. GM6200039Courtesy of GENERAL MOTORS COMPANY

    {With K4C} Instrument Panel Compartment Air Duct (1) - Install

  43. GM5911641Courtesy of GENERAL MOTORS COMPANY

    {With K4C} Connect the electrical connector.

  44. GM5911600Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

  45. GM6154998Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications

  46. GM5911448Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation

  47. GM5908248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  48. Instrument Panel Accessory Bezel (1) - Install
  49. GM5907923Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (3) - Install

  50. Instrument Panel Lower Insulator Retainer (1) - Install [2x]
  51. Instrument Panel Lower Insulator Bolt (2) - Install and tighten - Fastener Specifications
  52. GM5908243Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install

  53. GM5949887Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (2) @ Instrument Panel Compartment Door Dampener (1) - Connect

  54. GM5925232Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Right Side (2) - Install

  55. Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [2x] - Fastener Specifications
  56. GM5907913Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install

  57. GM5925358Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet (2) - Install

  58. Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [4x] - Fastener Specifications

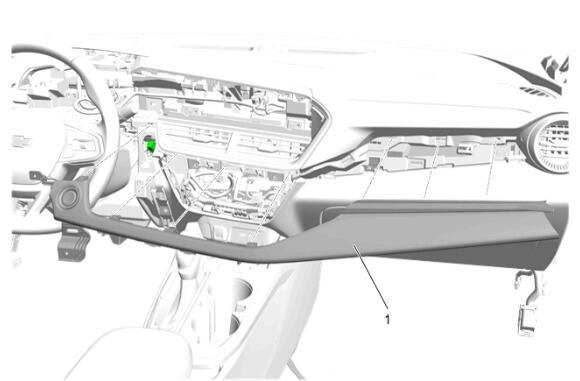

  59. GM5910525Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  60. Instrument Panel Center Trim Plate Applique (1) - Install

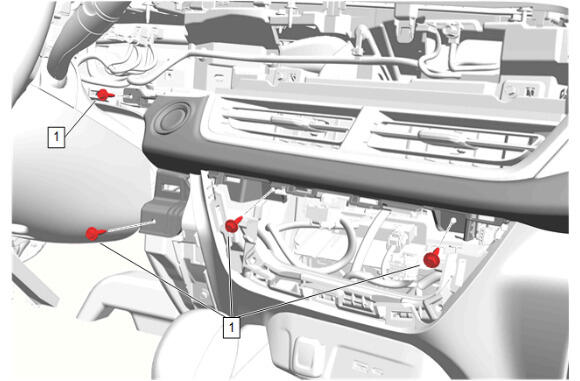

  61. GM5910524Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique Bolt (1) - Install and tighten [4x] - Fastener Specifications

  62. GM5914629Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  63. Heater and Air Conditioning User Interface Control (2) - Install
  64. Heater and Air Conditioning User Interface Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  65. GM5908245Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  66. Instrument Panel Center Trim Plate Applique (1) - Install
  67. GM5924522Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Left Side (1) - Install [2x]

  68. Instrument Panel Trim Plate Applique Bolt (2) - Install and tighten - Fastener Specifications
  69. GM5910478Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (2) - Install

  70. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
  71. GM5912123Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Left Side (2) - Install

  72. Instrument Panel Trim Plate Applique Bolt (1) - Install and tighten - Fastener Specifications
  73. GM5910455Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover in the opposite direction of the arrow.

  74. GM5907920Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  75. Instrument Panel Switch Trim Plate (1) - Install
  76. GM5907919Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications

  77. GM5907917Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install

  78. GM5907916Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] - Fastener Specifications

  79. GM5661048Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (1) @ Instrument Panel Knee Bolster - Install

  80. GM5907912Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  81. GM6200005Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket (2) - Install

  82. Communication Interface Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  83. Connect the electrical connectors.

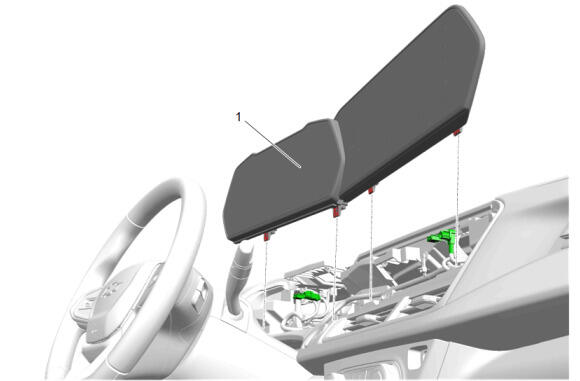

  84. GM5921863Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  85. Driver Information Display (1) - Install

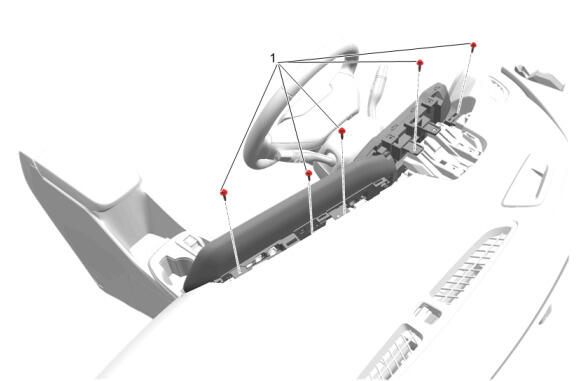

  86. GM5921862Courtesy of GENERAL MOTORS COMPANY

    Driver Information Display Bolt (1) - Install and tighten [5x] - Fastener Specifications

  87. GM5910819Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt Cover - Right Side (1) - Install

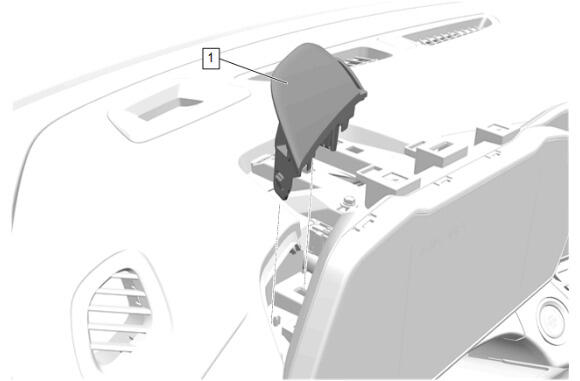

  88. GM5910816Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt Cover - Left Side (1) - Install

  89. GM5910807Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (2) - Install

  90. Instrument Panel Trim Plate Strap Bolt (1) - Install and tighten [4x] - Fastener Specifications
  91. GM5910805Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install

  92. GM5921658Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  93. Windshield Garnish Molding Bolt - Left Side and Right Side (2) - Install and tighten - Fastener Specifications
  94. Align the retainer clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
  95. Windshield Garnish Molding - Left Side and Right Side (1) - Install
  96. Reposition the weatherstrip as necessary.
  97. Enable the SIR System. SIR Disabling and Enabling
