Fastener Specifications

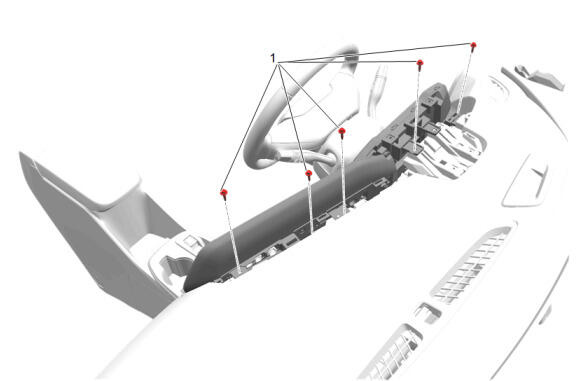

Driver Information Display
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Driver Information Display Bolt [5x] | - | - | 2.5 N.m (22 Lb In) | instrument Panel Cluster Control Module Replacement |
Instrument Cluster
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Cluster Bolt [4x] | - | - | 2.5 N.m (22 Lb In) | instrument Cluster Replacement |

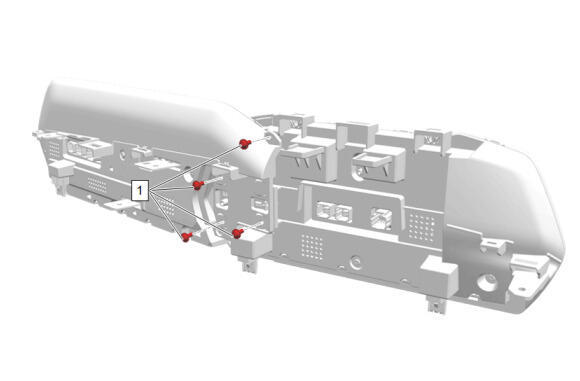

Instrument Panel Cluster Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Driver Information Display Screw [4x] | - | - | 2.5 N.m (22 Lb In) | instrument Panel Cluster Control Module Replacement |
