Rear Bumper Fascia Energy Absorber Replacement

Courtesy of GENERAL MOTORS COMPANY

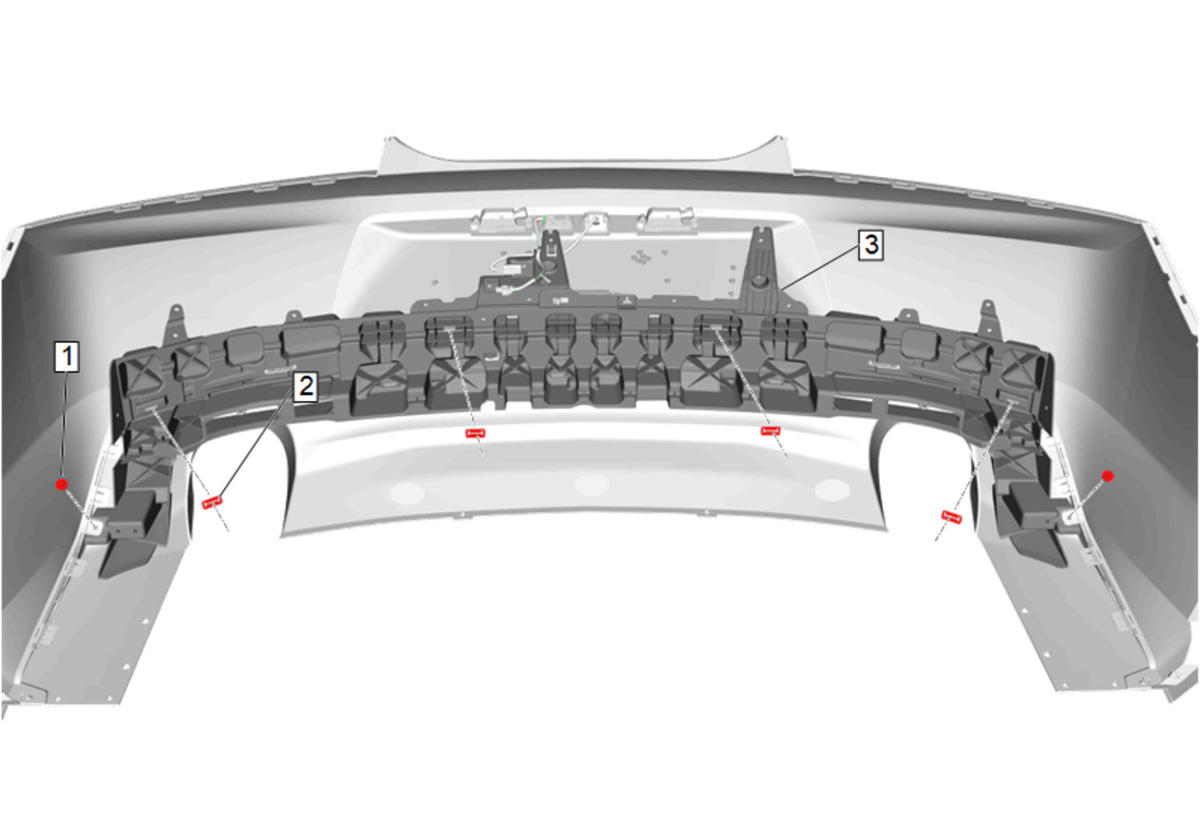

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Rear Bumper Fascia Replacement (Base, Uplevel) Rear Bumper Fascia Replacement (ZL1) Reposition electrical connectors for the rear object alarm sensors.
1	Rear Bumper Fascia Energy Absorber Bolt[2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Fascia Energy Absorber Clip[4x]
3	Rear Bumper Fascia Energy Absorber
