Rear Bumper Fascia Replacement (ZL1)

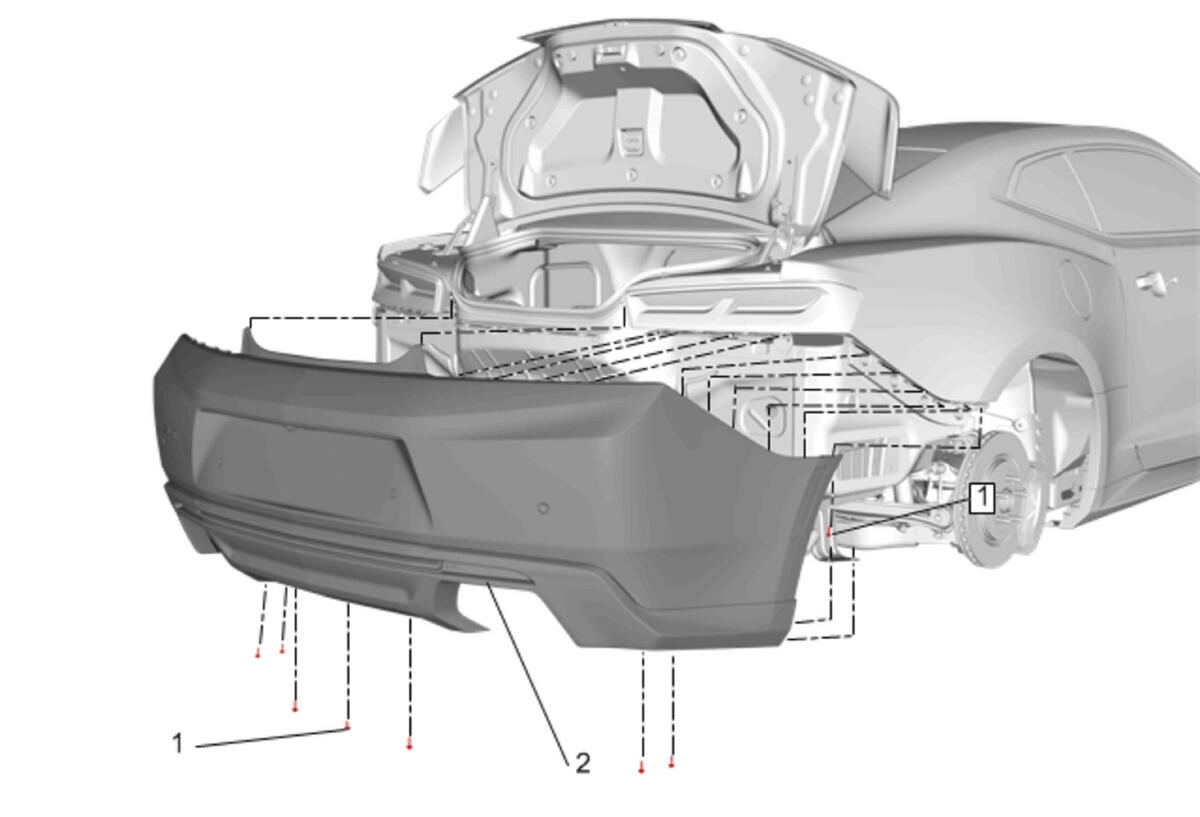

GM4538750

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout

Component Name

Preliminary Procedure
Rear Wheelhouse Liner Replacement (ZL1)

1

Rear Bumper Fascia Bolt [9x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Rear Bumper Fascia

Procedure

Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide.
Push the tabs down to release them from the tail lamps.
Disconnect all electrical connectors.
Transfer components as necessary.
