Rear Bumper Fascia Replacement (Base, Uplevel)

GM4194126

Courtesy of GENERAL MOTORS COMPANY

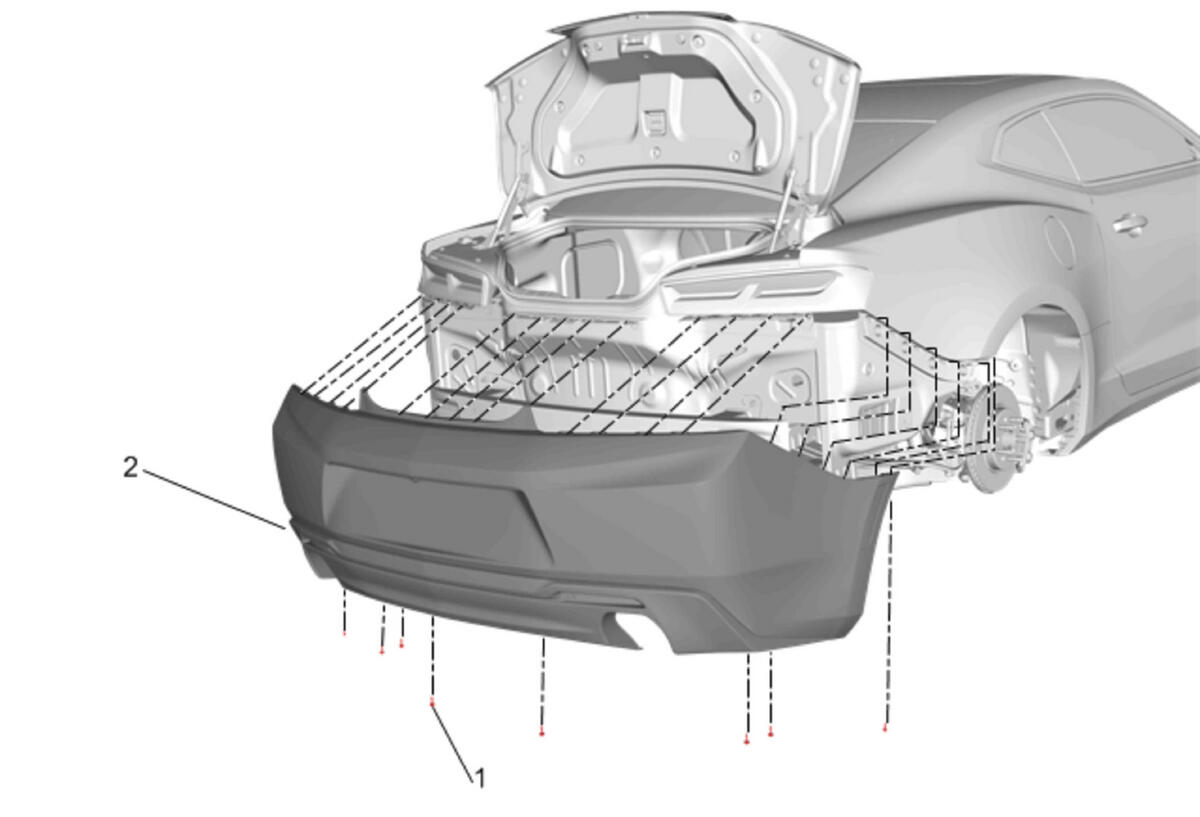

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout

Component Name

Preliminary Procedures
Rear Wheelhouse Liner Replacement Rear Wheelhouse Liner Replacement (ZL1)

1

Rear Bumper Fascia Bolt [8x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Rear Bumper Fascia

Procedure

Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide.
Disconnect all electrical connectors.
Transfer components as necessary.
